8ft NEMA L5-30P to IEC C19 Power Cable - 12AWG - SJT Jacket

AC Power CordsSKU: PW-156-08

Price:
Sale price$21.48 USD
Stock:
In stock

Description

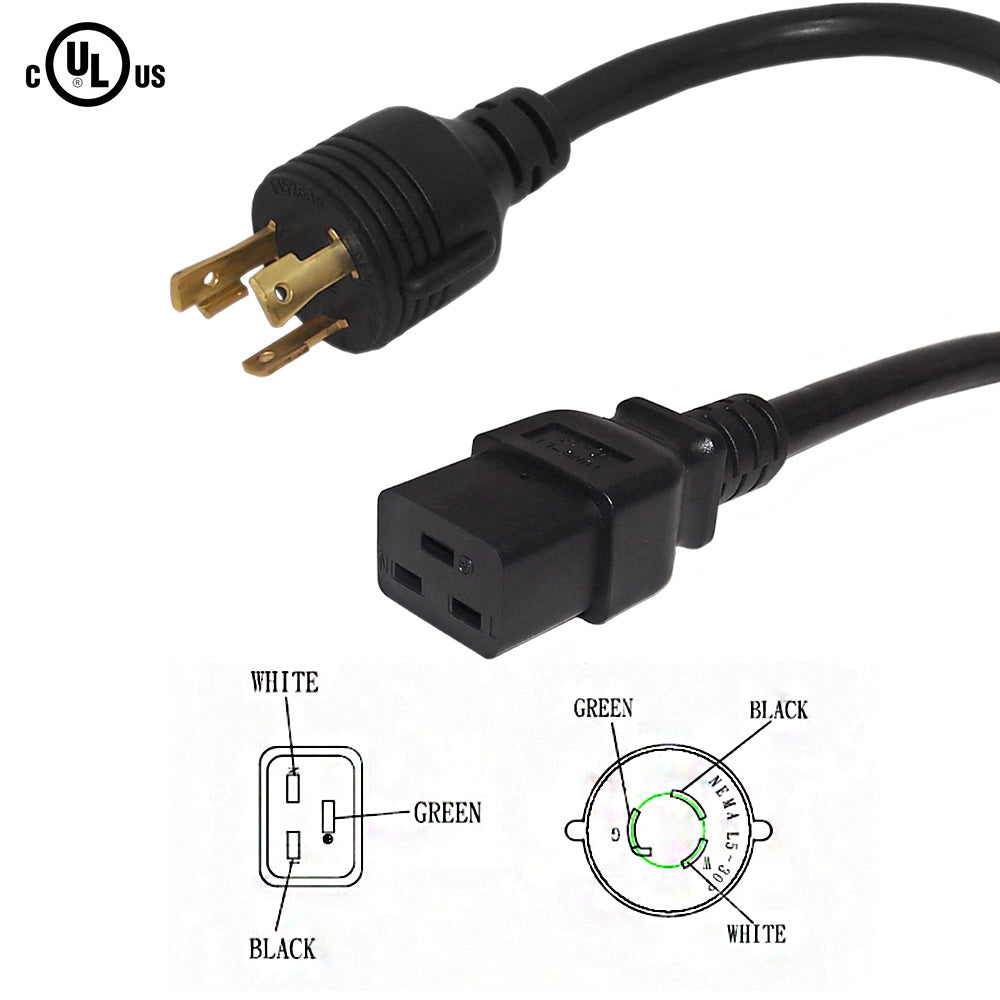

This power cord consists of a L5-30P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Cable Length 8 foot [2.4m]
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20ā„ƒ to 105ā„ƒ
Connector(s)
Connector A NEMA L5-30P
Connector B IEC 60320 C19
Performance
Power Rating 20 Amp / 125 Volt
Approvals
L5-30P c(UL)us
C19 c(UL)us
Cable c(UL)us, CSA
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 1.39 lbs [0.6kg]
Warranty Information
Warranty Limited Lifetime
