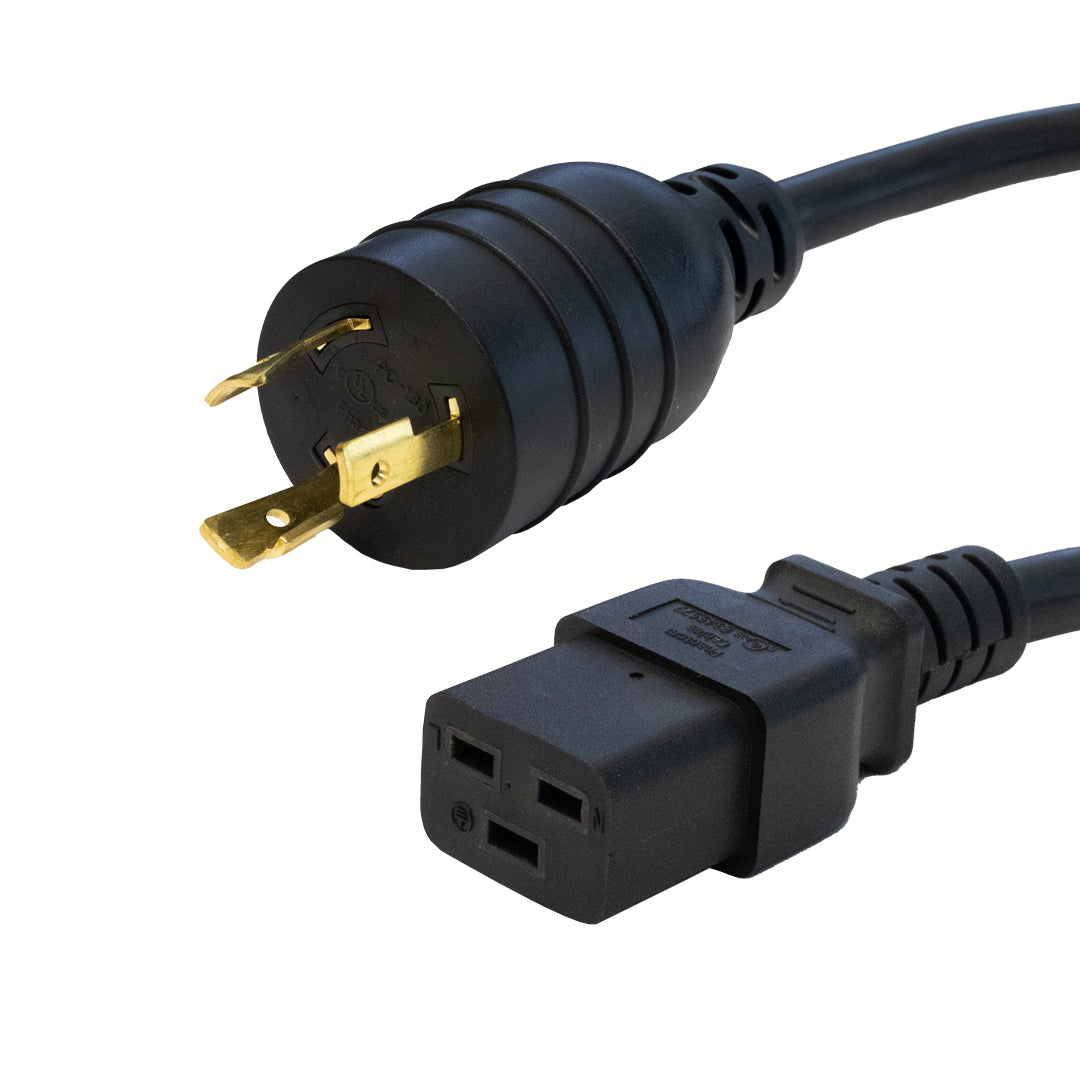

NEMA L5-20P to IEC C19 Power Cable - 12AWG - SJT Jacket

AC Power CordsSKU: PW-134-03

Length: 3ft
Price:
Sale price$10.70 USD
Stock:
In stock

Description

This power cord consists of a L5-20P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C

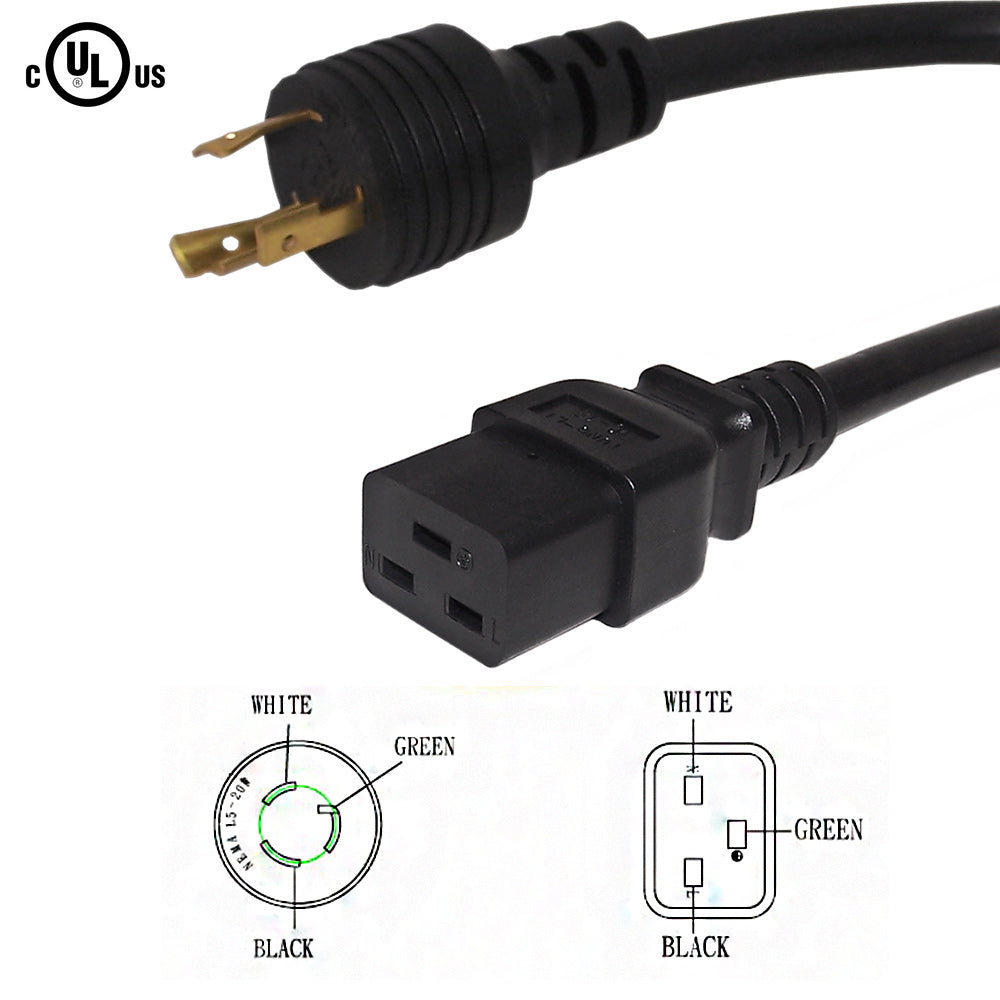

Connector(s)
Connector A NEMA L5-20P
Connector B IEC 60320 C19
Performance
Power Rating 20 Amp / 125 Volt
Approvals
L5-20P c(UL)us
C19 c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 15ft
0.61 lbs 1.10 lbs 2.00 lbs

Product Weight

3ft
PW-134-03
0.36 lb
6ft
PWC-134-06
0.65 lb
15ft
PWC-134-15
1.5 lb
