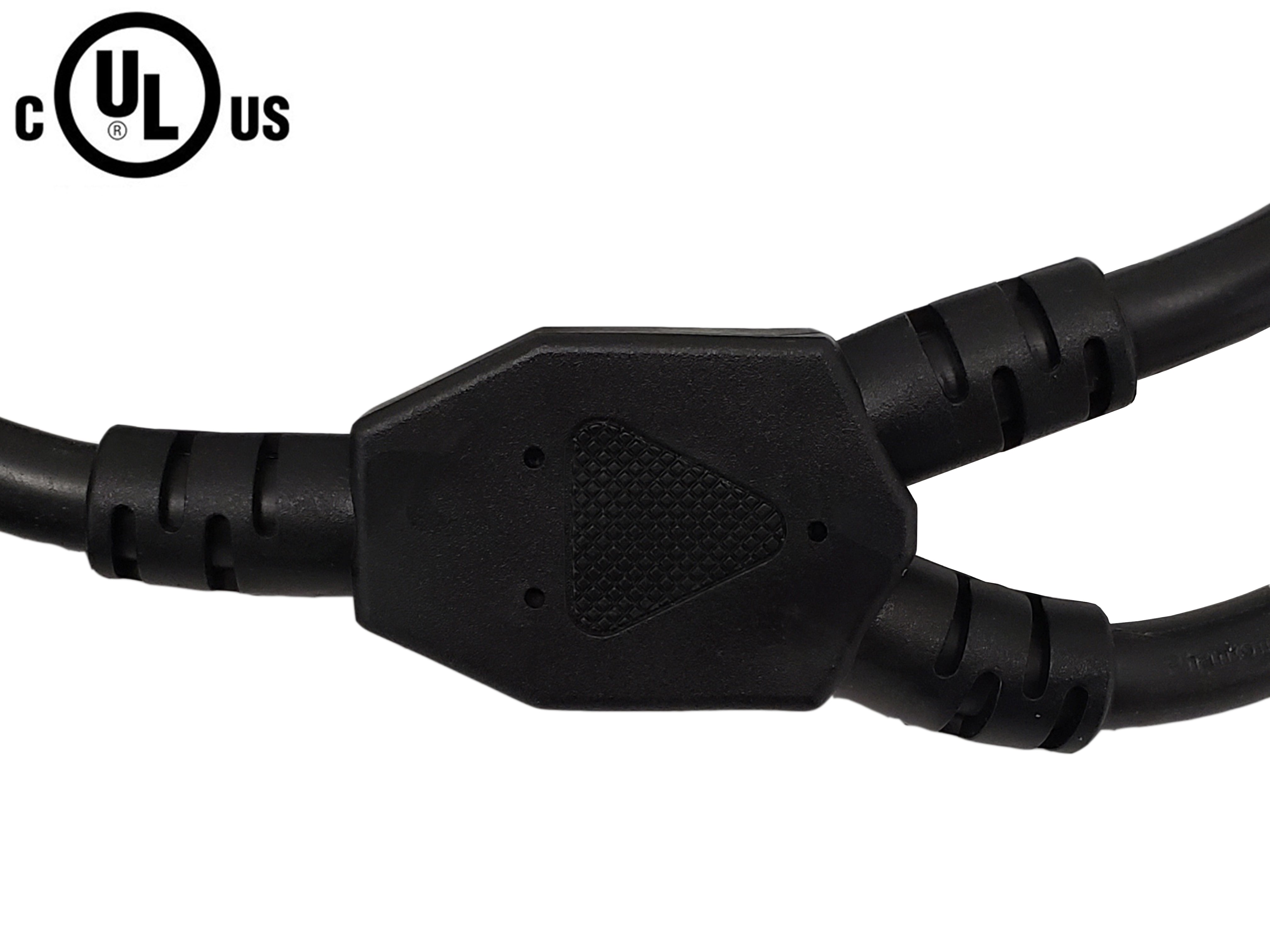

NEMA 5-15P to 2x NEMA 5-15R Power Splitter Cable - SJT

Splitter Power CordsSKU: PWC-210C-01

Length: 1ft
Price:
Sale price$5.00 USD
Stock:
In stock

Description

Overview

This power cord consists of a 5-15P male on one end and two 5-15R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Split Length 1ft - 200mm [0.65ft]
3ft, 6ft - 610mm [2ft]
Connector(s)
Connector A NEMA 5-15P
Connector B NEMA 5-15R
Connector B NEMA 5-15R
Performance
Power Rating 15 Amp / 125 Volt
Approvals
5-15P c(UL)us
5-15R c(UL)us
5-15R c(UL)us
Cable c(UL)us
ISO ISO 9001:2000, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft
0.48 lbs 0.60 lbs 0.95 lbs

Product Weight

1ft
PWC-210C-01
0.17 lb
3ft
PWC-210C-03
0.36 lb
6ft
PWC-210C-06
0.65 lb
