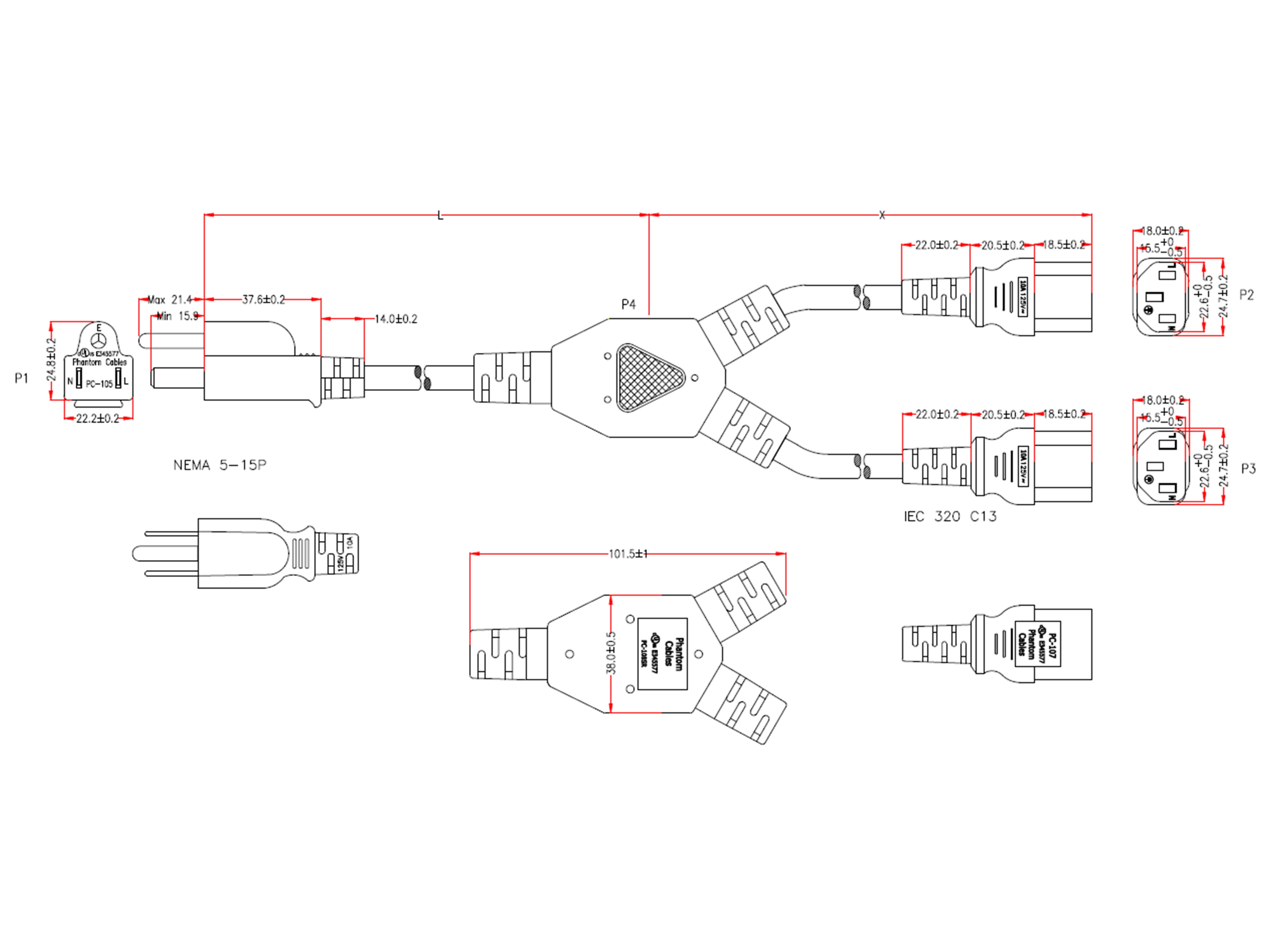

NEMA 5-15P to 2x IEC C13 Power Splitter Cable - SJT

Splitter Power CordsSKU: PWC-205-03

Length: 3ft
Wire Gauge: 18AWG
Price:
Sale price$4.67 USD
Stock:
In stock

Description

Overview

This power cord consists of a 5-15P male on one end and two C13 females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

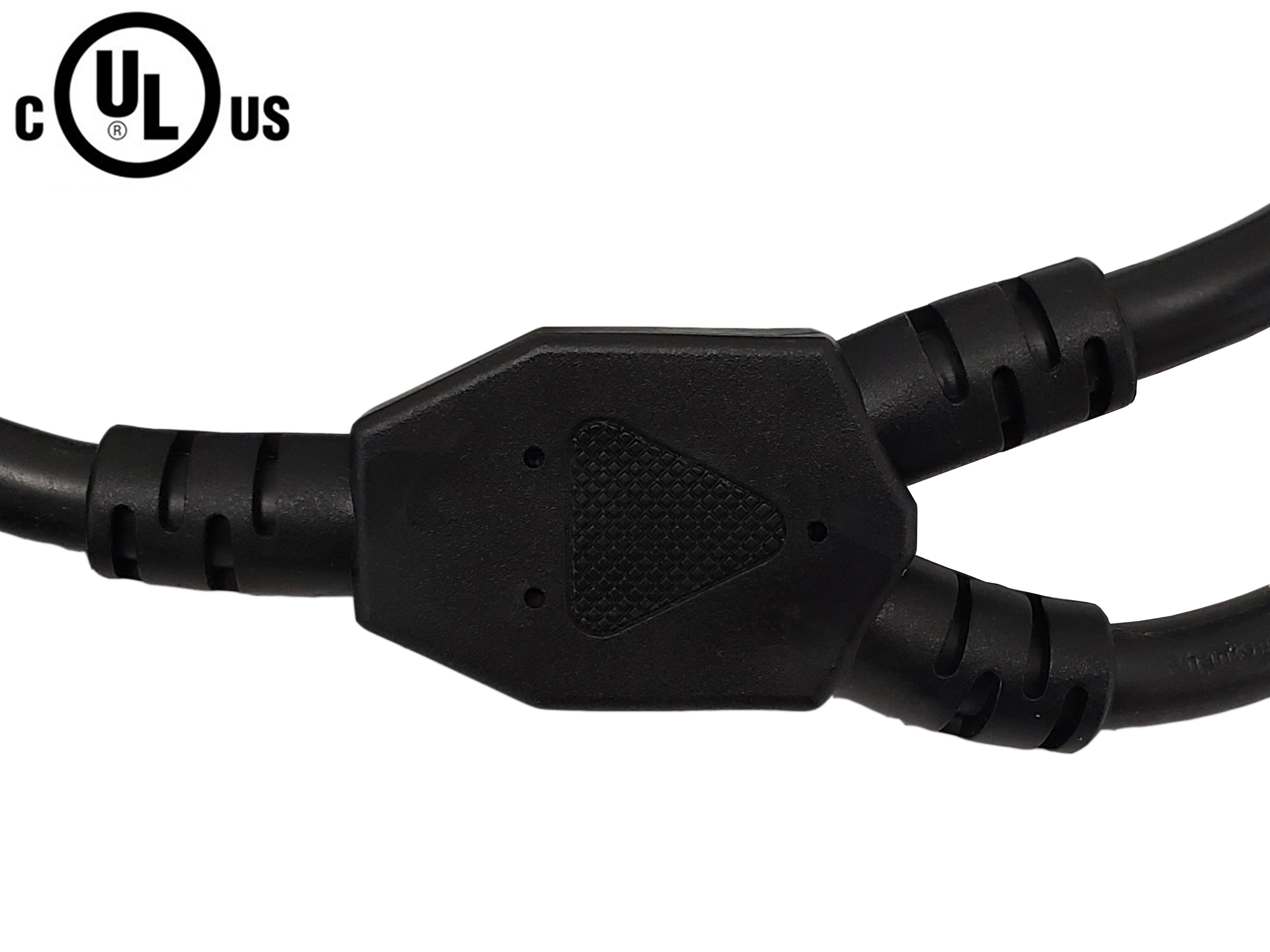

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 18AWG / 16AWG / 14AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 5-15P
Connector B IEC 60320 C13
Connector B IEC 60320 C13
Performance
Power Rating 10 Amp / 125 Volt (18AWG)
13 Amp / 125 Volt (16AWG)
15 Amp / 125 Volt (14AWG)
Approvals
5-15P c(UL)us
C13 c(UL)us
C13 c(UL)us
Cable c(UL)us
ISO ISO 9001:2000, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 2ft 3ft 6ft 12ft
0.40 lbs 0.42 lbs 0.61 lbs 0.83 lbs 1.22 lbs

Product Weight

1ft/16AWG
PW-205B-01
0.17 lb
2ft/16AWG
PW-205B-02
0.29 lb
3ft/18AWG
PWC-205-03
0.36 lb
3ft/14AWG
PWC-205C-03
0.36 lb
6ft/18AWG
PWC-205-06
0.65 lb
6ft/14AWG
PWC-205C-06
0.65 lb
