Description

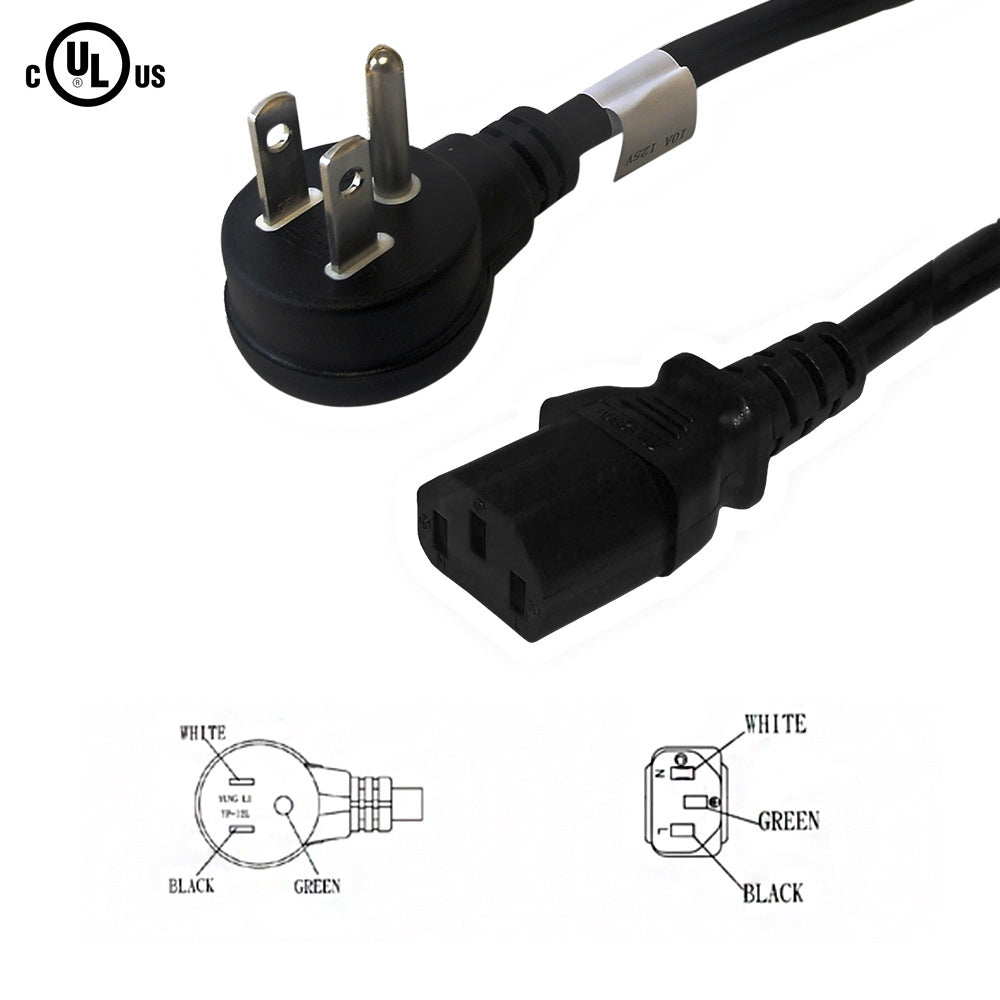

This power cord consists of a 5-15P down angle male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 C13 |
| Connector B | NEMA 5-15P Down Angle |
| Performance | |
| Power Rating | 10 Amp / 125 Volt |
| Approvals | |
| C13 | c(UL)us |
| 5-15P | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 12ft |
|---|---|---|
| 0.37 lbs | 0.49 lbs | 1.05 lbs |
Product Weights
| SKU | Options | Weight |
| PWC-105D5-03 | 3ft | 0.36 lb |
| PWC-105D5-06 | 6ft | 0.65 lb |
| PWC-105D5-12 | 12ft | 1.23 lb |
