- Spec Sheets

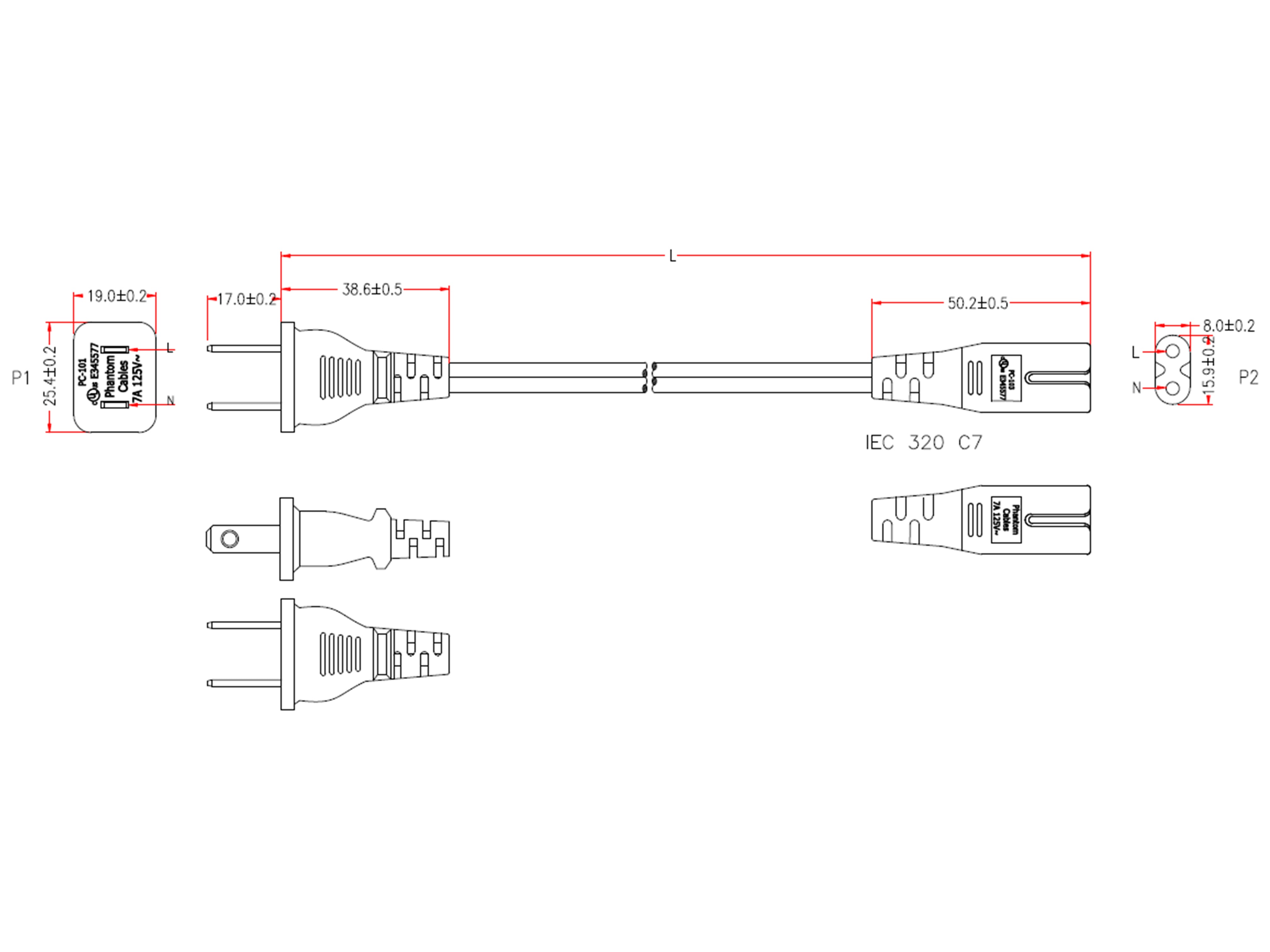

This power cord consists of a 1-15P male on one end and a C7 female on the other end. It is typically used to connect a wall outlet to a AC/DC power supply or directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
100% Continuity and High Voltage Tested
All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|Number of Conductors||2 Conductor|
|Wire Gauge||18 AWG|
|Jacket Material||100% Virgin PVC - Polyvinyl Chloride|
|Jacket Fire Rating||VW-1|
|Strain Relief||Molded 100% Virgin PVC|
|Temperature Rating||-20 deg C to 105 deg C|
|Connector A||NEMA 1-15P (2-prong)|
|Connector B||IEC 60320 C7|
|Power Rating||7 Amp / 125 Volt|
|ISO||ISO 9001:2000, ISO 14000|
|0.10 lbs||0.14 lbs||0.23 lbs||0.41 lbs||0.77 lbs|
