Description

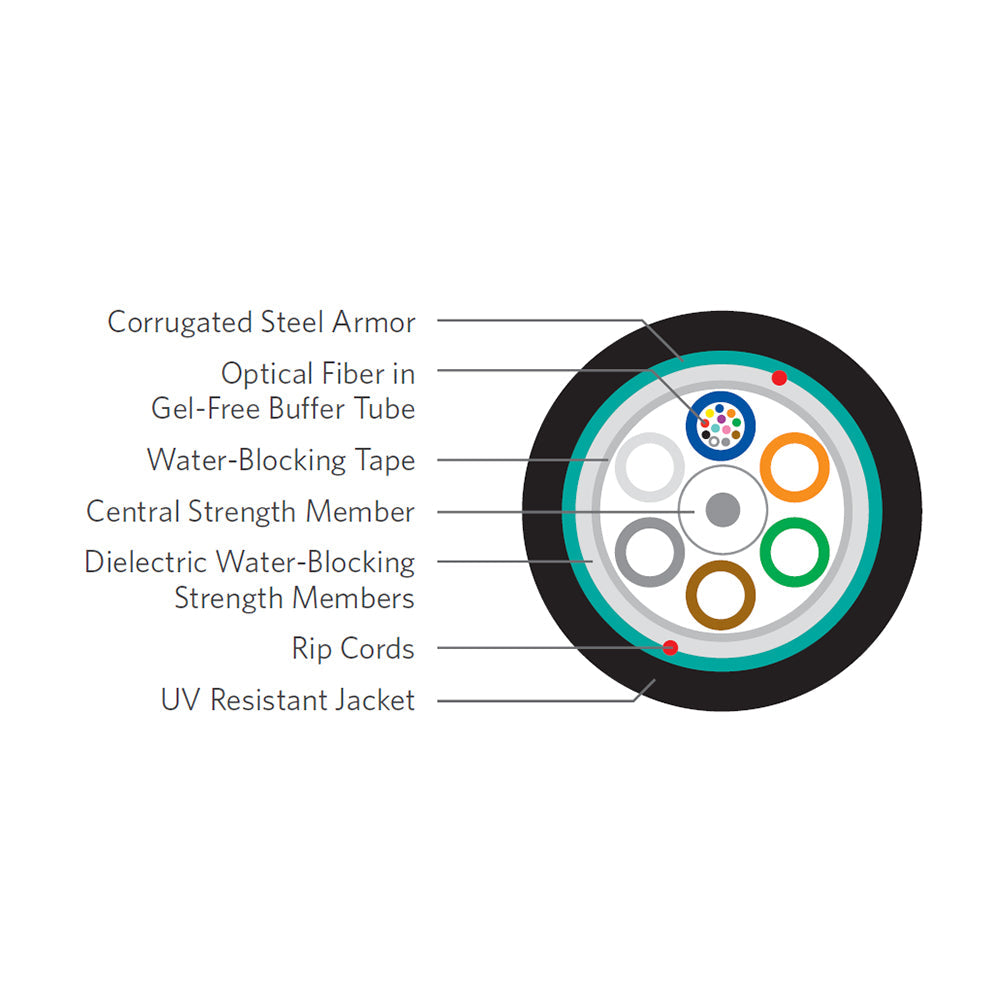

This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, improves compressive strength and rodent protection, and speeds fiber access/cleanup.
Features
- Dry (SAP) core standard
- Corrugated steel armor
- Gel-free tubes
- Tested to meet or exceed Telcordia® GR-20-CORE, RDUP PE-90 Designation MLT and ICEA S-87-640-2011
- RoHS/REACH Compliant
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OSP Loose Tube Multimode Outdoor Direct Burial Dri-Lite Armoured Cable |
| Fiber Count | 12-Strand |
| Nominal Diameter | 11.7mm |
| Tension(Installation) | 600 lbs |
| Tension(Long Term) | 200 lbs |
| Bending Radius(Installation) | 234mm |
| Bending Radius(Long Term) | 117mm |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation Temperature | -30°C ~ +70°C |
| Manufacturer Information | |
| Superior Essex Part Number | 2006ND01 12012ND01 |
| Environmental | |
| RoHS | Yes |
| Telcordia® GR-20-CORE | Yes |
| RDUP PE-90 Designation MLT | Yes |
| ICEA S-87-640-2011 | Yes |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-F12012ND01 | 0.8 lb |
