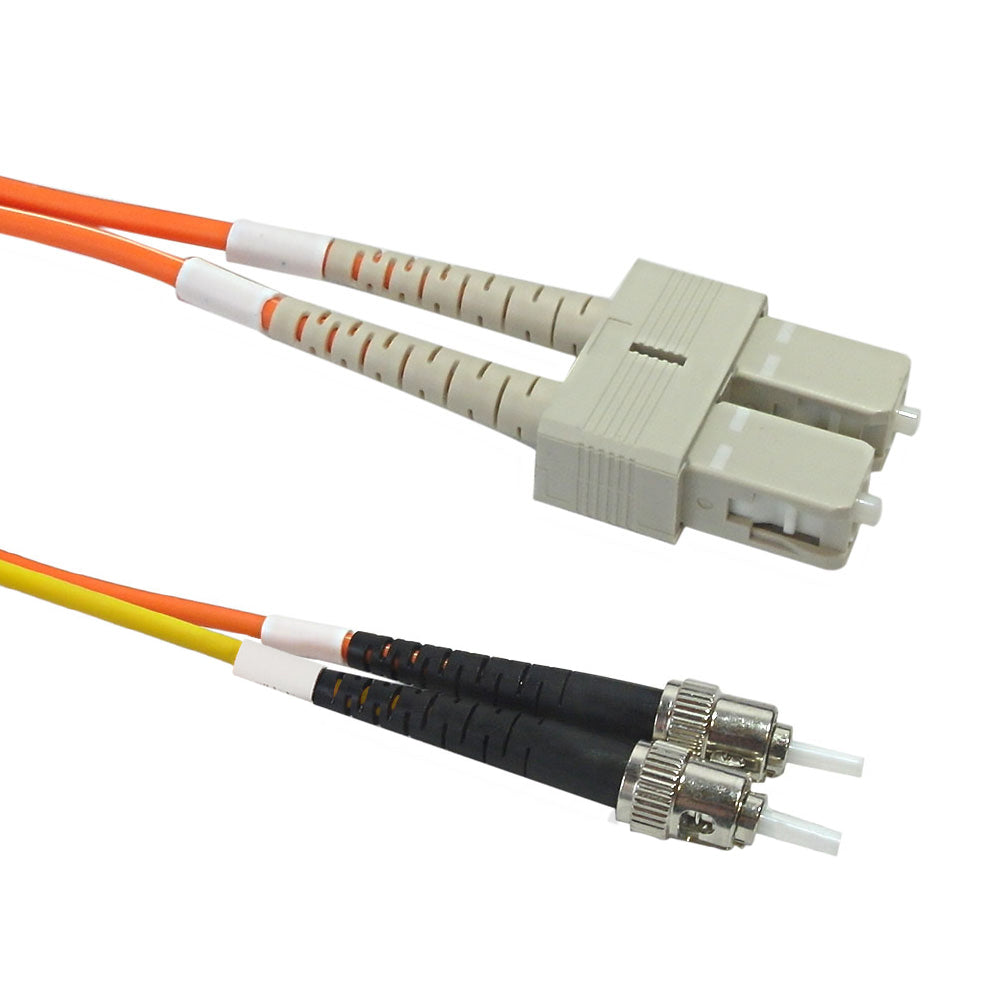

This mode conditioning fiber optic cable is made with Corning glass fiber and consists of a duplex SC male on one end and 2 simplex ST male on the other end. It allows you to connect singlemode equipment such as gigabit routers and switches, to existing multimode cable environments. It does so by emulating a LED light source from a laser light source by off-setting the fusion splice of the singlemode leg onto the multimode cable. They are typically purchased in pairs (one for each end of the cable run) and used in multimode cable runs over 300m. The singlemode cable leg is connected to transmit on the equipment end.
| Physical Characteristics | |
|---|---|
| Color | Orange / Yellow Singlemode Leg |
| Cable Diameter | 3mm |
| Fiber Size | 62.5/125 micron - 9/125 micron leg |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Jacket Rating | Low Smoke Zero Halogen (LSZH) |
| Connector(s) | |
| Connector A | 1 - SC Duplex Male |
| Connector B | 2 - ST Simplex Male |
| Performance | |
| Insertion Loss | ā¹0.3db @ 1300nm |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 30ft - 10m |
|---|---|---|---|---|
| 0.08 lbs | 0.09 lbs | 0.13 lbs | 0.20 lbs | 0.38 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| FO-MC103-03-ST | 3ft | 0.15 lb |
| FO-MC103-06-ST | 6ft | 0.21 lb |
| FO-MC103-10-ST | 10ft | 0.33 lb |
| FO-MC103-15-ST | 15ft | 0.5 lb |
| FO-MC103-30-ST | 30ft | 0.95 lb |
