Overview

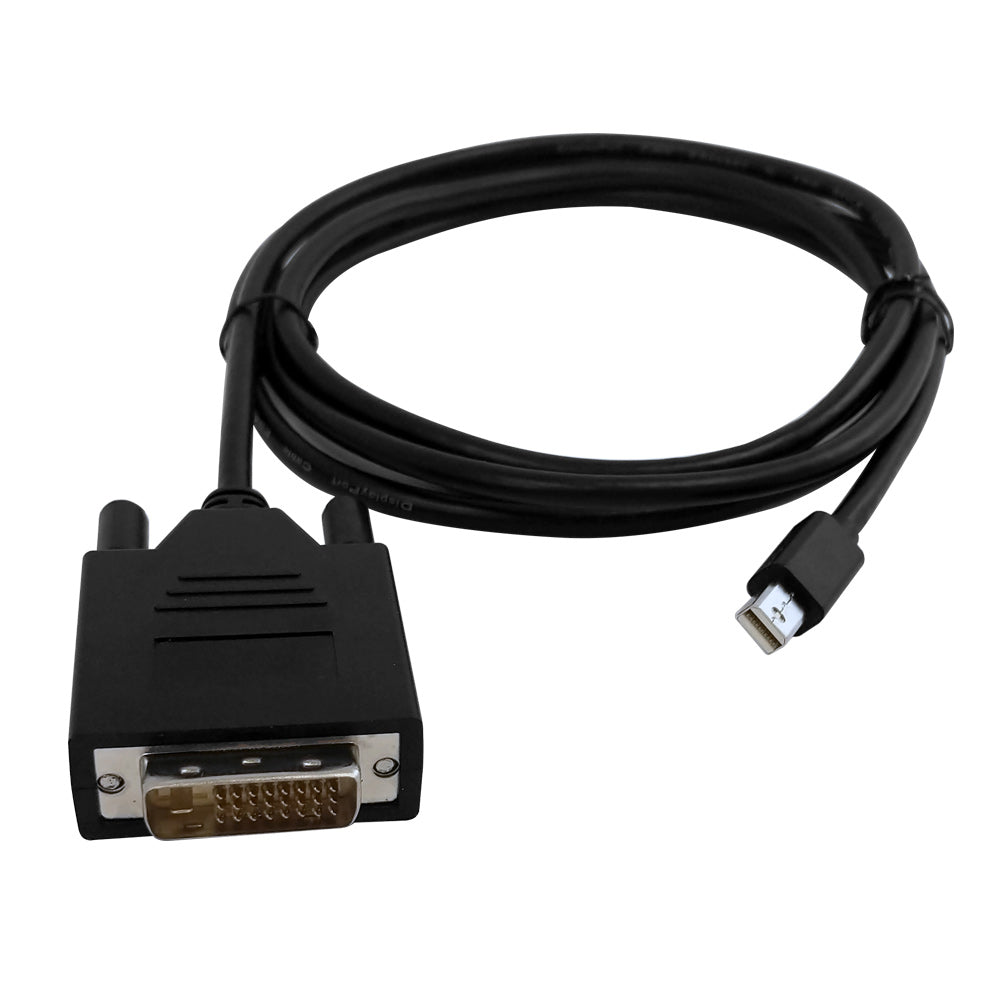

This cable consists of a Mini DisplayPort male on one end and a DVI male on the other end. It is typically used to connect a Mini DisplayPort source (MacBook Pro, MacBook Air, etc.) to a DVI monitor. This cable in uni-directional, therefore it will only work from a Mini DisplayPort source to a DVI display and not in the reverse direction.
|
|
High-Definition ResolutionThis cable supports maximum video resolutions up to HD 1920x1080p. It supports higher performance, higher resolutions and color depths, and fastest refresh rates utilizing DisplayPort v1.2. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Used in Common InstancesThis cable can be used in common instances - for example, connecting a MacBook to a monitor or a projector, at the highest possible resolution available.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Type | Active |
| Connector Plating | Gold |
| Cable Diameter | 7.3 mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | Yes |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Connector(s) | |
| Connector A | DVI Single Link Male |
| Connector B | Mini DisplayPort Male |
| Performance | |
| Resolution | Full HD 1920x1080p |
| DP Version | v1.2 |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.19 lbs [0.08 kg] |
| Warranty Information | |
| Warranty | 3 Years Warranty |
| 3ft | 6ft | 10ft |
|---|---|---|
| 0.10 lbs | 0.19 lbs | 0.28 lbs |
| SKU | Options | Weight |
| MDP-DVI-03A | 3ft | 0.15 lb |
| MDP-DVI-06A | 6ft | 0.21 lb |
| MDP-DVI-10A | 10ft | 0.33 lb |
