Description

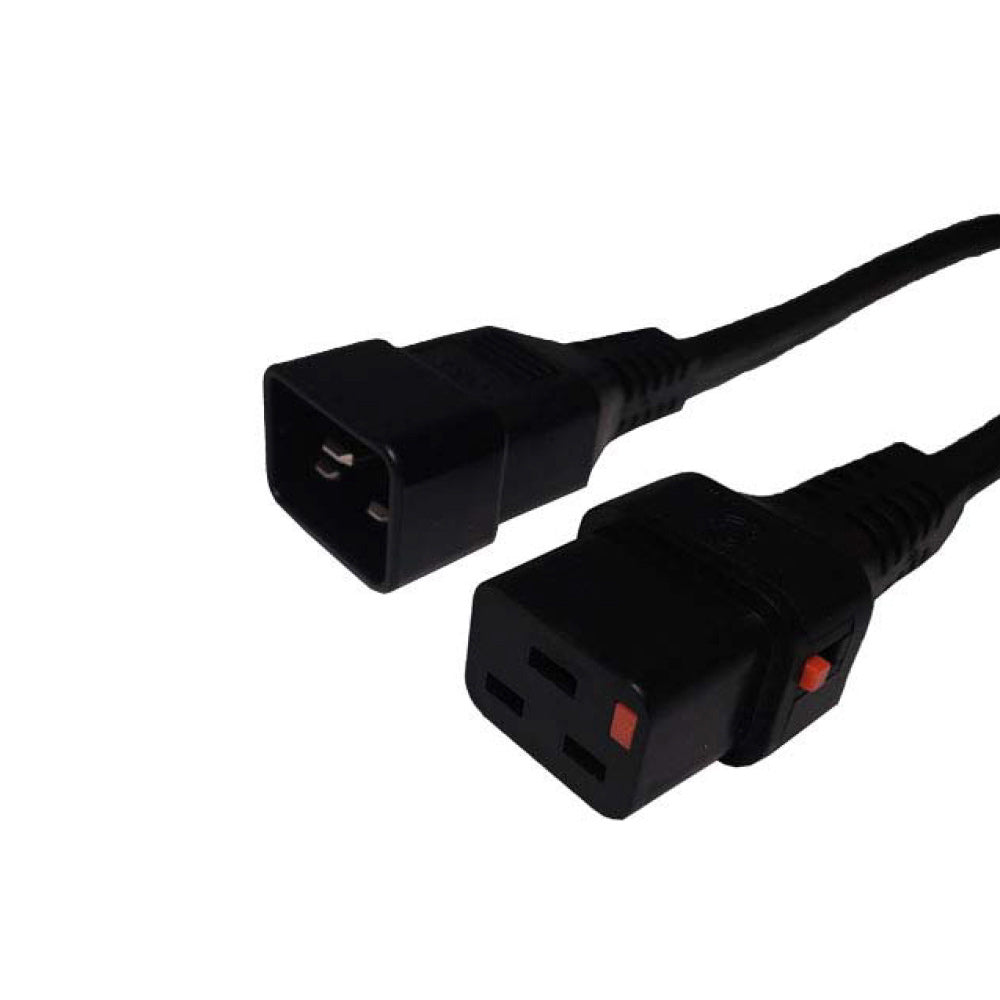

This power cord consists of a C20 male on one end and a locking C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. The unique lockable C19 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14AWG |
| Jacket | Heavy Duty SJT |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 Locking C19 - c(UL)us |
| Connector B | IEC 60320 C20 - c(UL)us |
| Performance | |
| Power Rating | 15 Amp / 250 Volt |
| Approvals | |
| c(UL)us | Yes |
| ISO | ISO 9001:2008 |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 2ft | 3ft | 4ft | 6ft | 10ft |
|---|---|---|---|---|
| 0.36 lbs | 0.47 lbs | 0.56 lbs | 0.76 lbs | 1.16 lbs |
Spec Sheets
Video
Product Weights
| SKU | Options | Weight |
| PWL-125C-02 | 2ft | 0.29 lb |
| PWL-125C-03 | 3ft | 0.36 lb |
| PWL-125C-04 | 4ft | 0.47 lb |
| PWL-125C-06 | 6ft | 0.65 lb |
| PWL-125C-10 | 10ft | 1.03 lb |
