Description

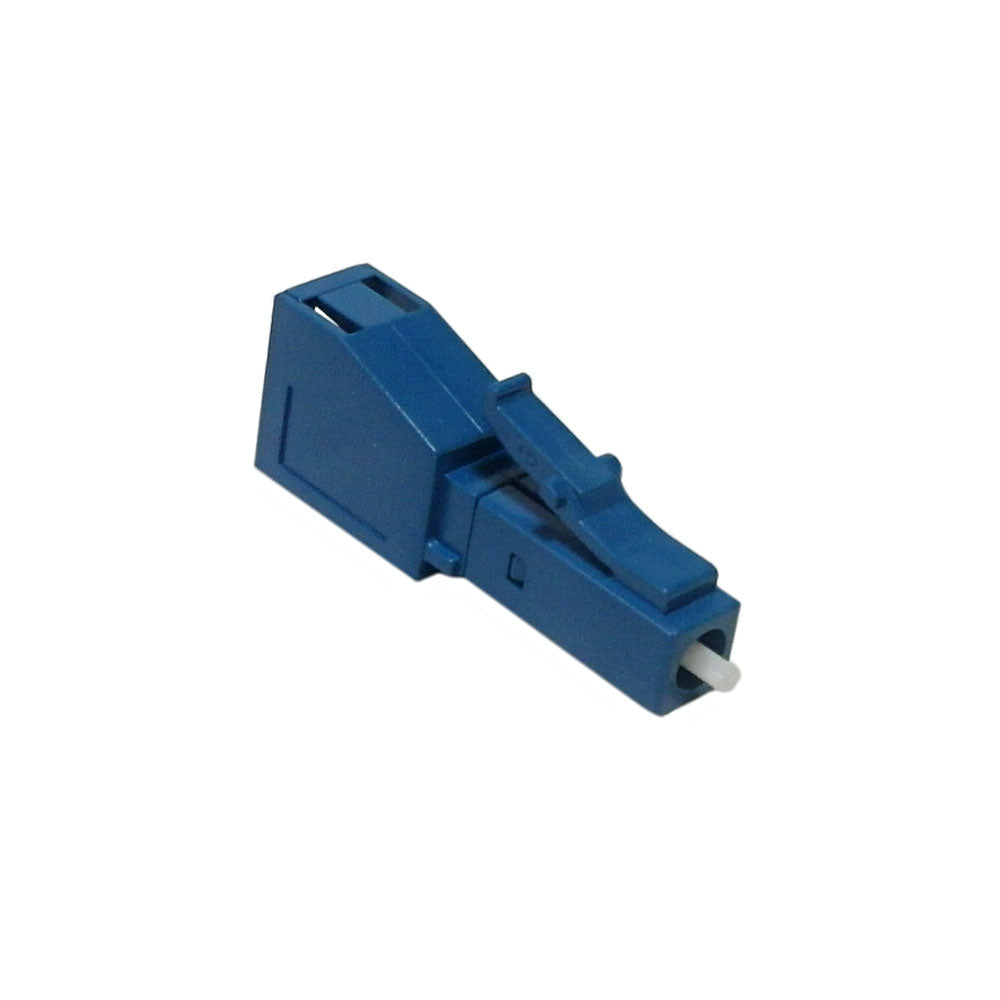

This fixed fiber optic attenuator consists of a LC simplex male on one end and a LC simplex female on the other end. It is typically used to either test power levels or reduce power levels of an optical signal.
| Physical Characteristics | |
|---|---|
| Color | Blue |
| Housing | Plastic |
| Sleeve | Ceramic |
| Mounting Style | Inline |
| Mode | Singlemode |
| Operating Temperature | -40 deg C to +85 deg C |
| Connector(s) | |
| Connector A | LC/UPC Female Simplex |
| Connector B | LC/UPC Male Simplex |
| Performance | |
| Operating Wavelength | 1310nm / 1550nm |
| Return Loss | >50dB |
| Tolerance | +/- 0.5dB |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.1 lbs [0.04 kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| FO-ATLC3-1DB | 1 dB | 0.02 lb |
| FO-ATLC3-2DB | 2 dB | 0.02 lb |
| FO-ATLC3-3DB | 3 dB | 0.02 lb |
| FO-ATLC3-4DB | 4 dB | 0.02 lb |
| FO-ATLC3-5DB | 5 dB | 0.02 lb |
| FO-ATLC3-6DB | 6 dB | 0.02 lb |
| FO-ATLC3-8DB | 8 dB | 0.02 lb |
| FO-ATLC3-10DB | 10 dB | 0.02 lb |
| FO-ATLC3-12DB | 12 dB | 0.02 lb |
| FO-ATLC3-15DB | 15 dB | 0.02 lb |
| FO-ATLC3-20DB | 20 dB | 0.02 lb |
