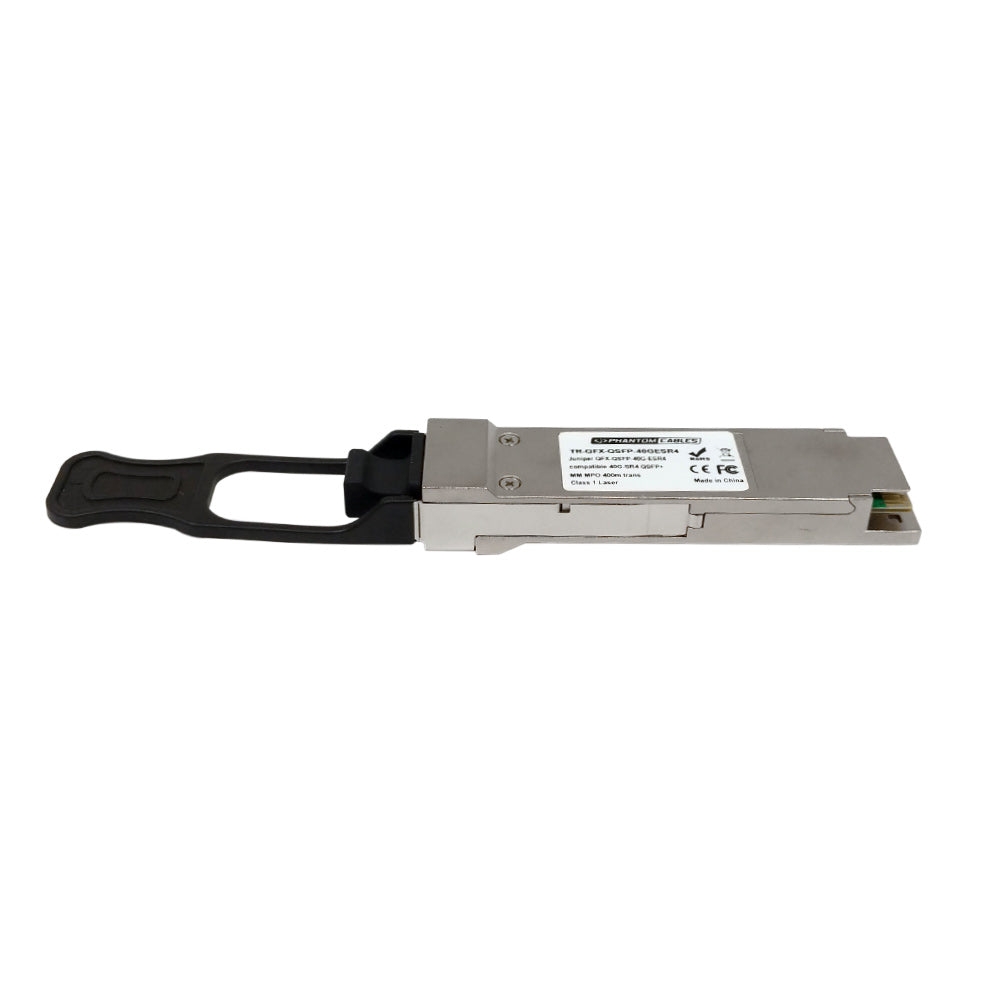

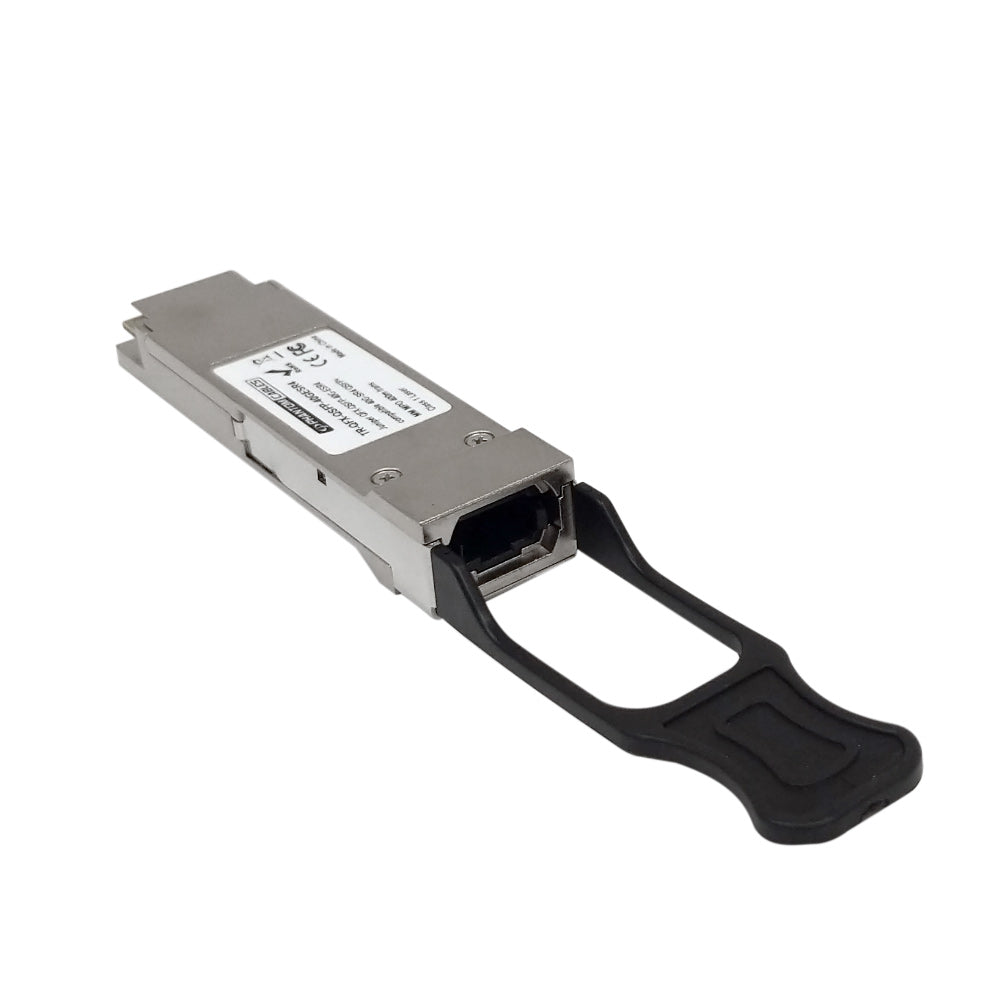

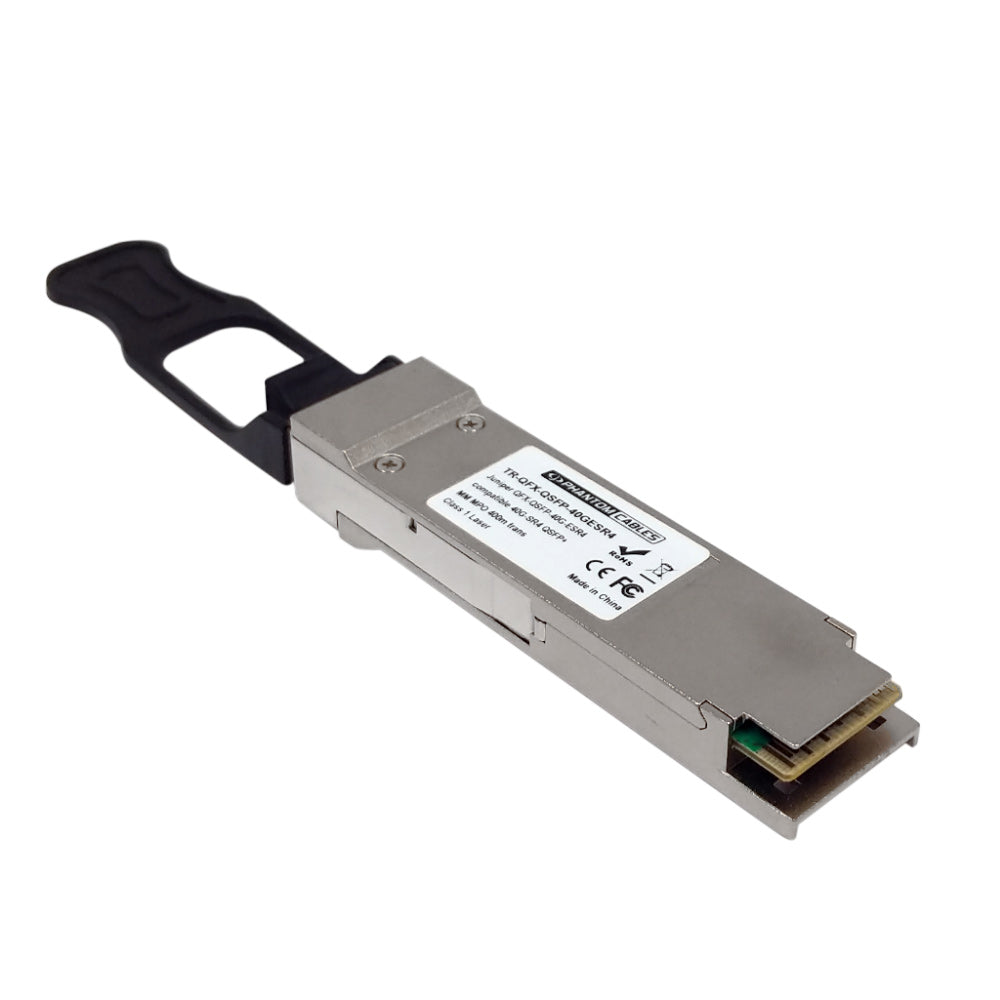

This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 40 Gbps up to 300m over multimode fiber cable. It is used in compatible network devices with a QSFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | MPO/MTP | |
| Performance | ||
| Media Supported | 40GBase-SR4 Multimode Fiber | |
| Maximum Transmission Distance | 300m with 50/125µm OM4 MMF | |
| Wave Length | 850nm | |
| DDM Support | Yes |
|
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on SFP+/QSFP+ Cables & Transceivers to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| TR-QFX-QSFP-40G-ESR4 | 0.08 lb |
