Overview
This junction box mounting bracket is designed to mount a fisheye IP dome camera. It has side and bottom inlets for easier installation. It is constructed of treated aluminum alloy material for better protection against the elements in outdoor applications.
Note:
- The bracket should be installed on flat surface.
- The waterproof rubber is necessary for the outdoor application.
- The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount.
- The maximum load capacity of the bracket is 4.5 kg.
Specifications
|
Physical Characteristics
|
| Color |
White |
| Material |
Aluminum alloy
|
| Dimension |

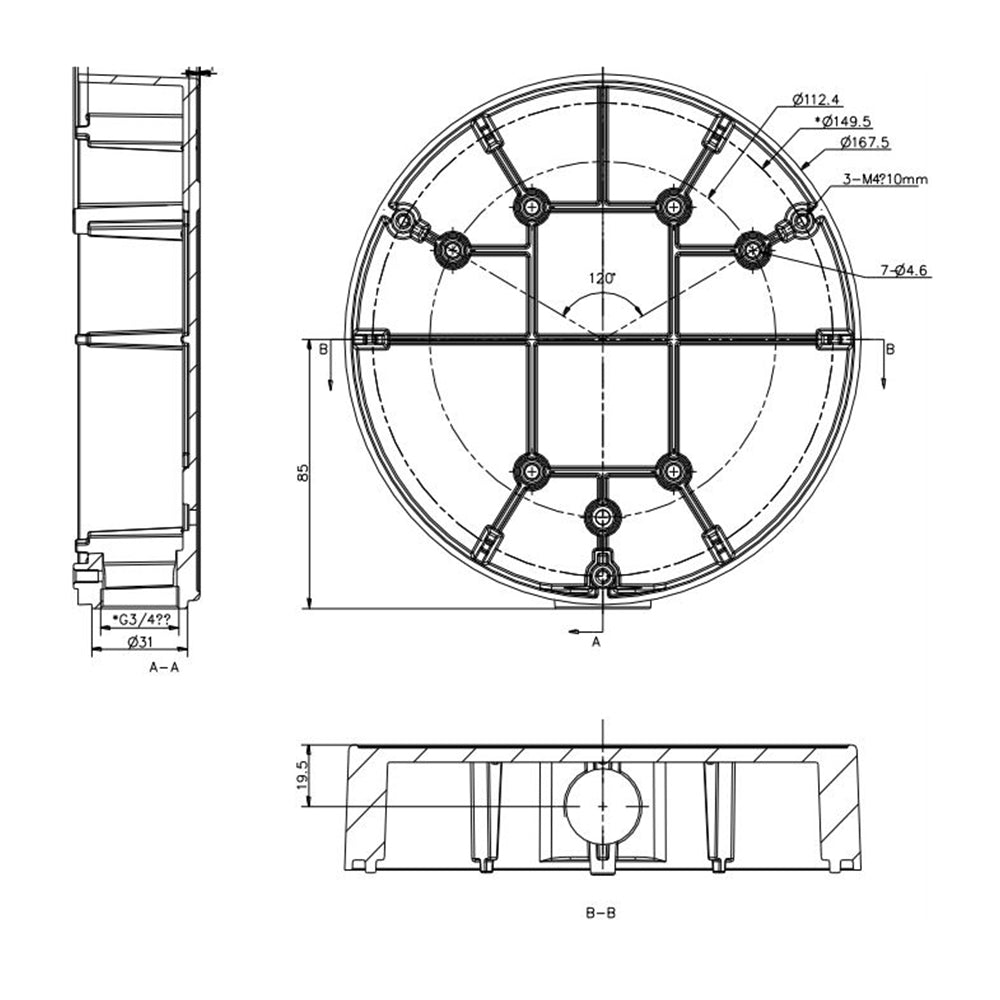

Φ167.5 x 167.5 x 42mm (6.59" x 6.59" x 1.65")
|
| Maximum Load Capacity |
4.5 lb [9.9 kg] |
|
Compatible Cameras
|
CA-NCA16-FEA
|
6MP Fisheye IP Fixed Dome Camera - Outdoor IP66 - White |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.79 lbs [0.36 kg] |
