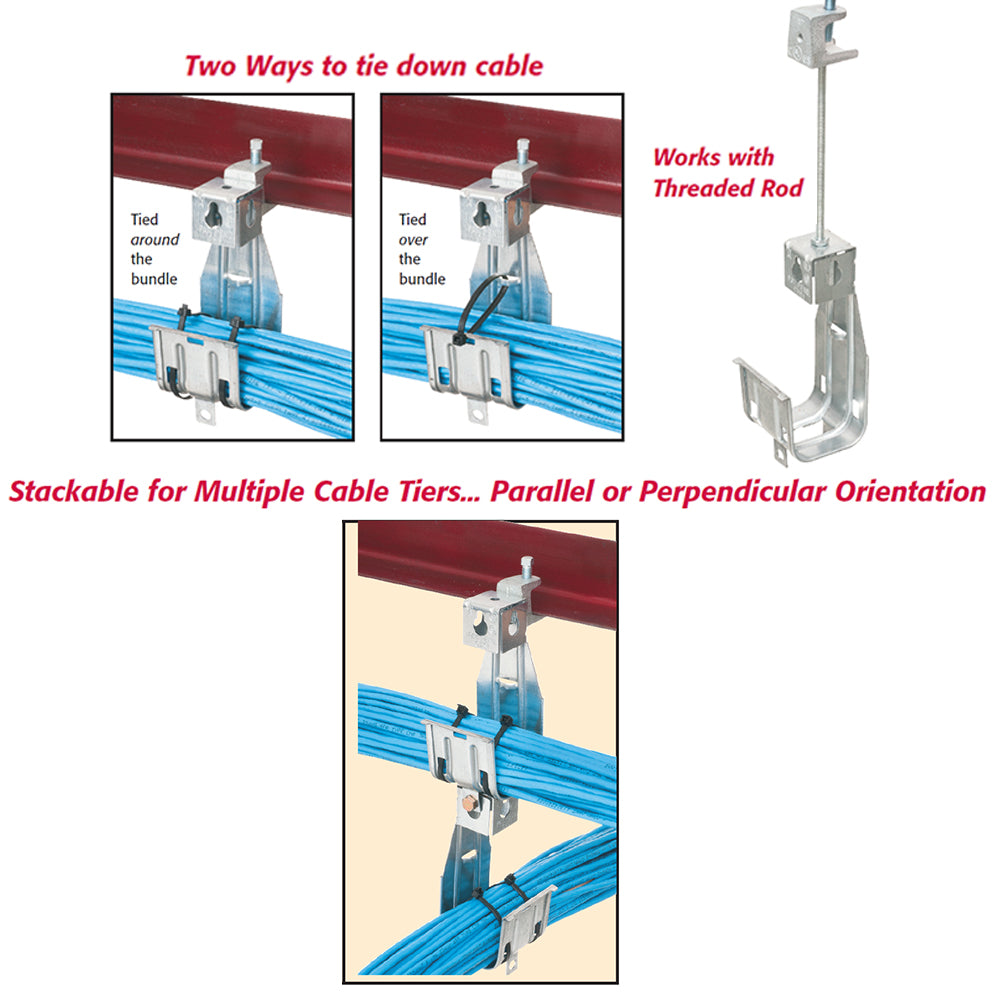

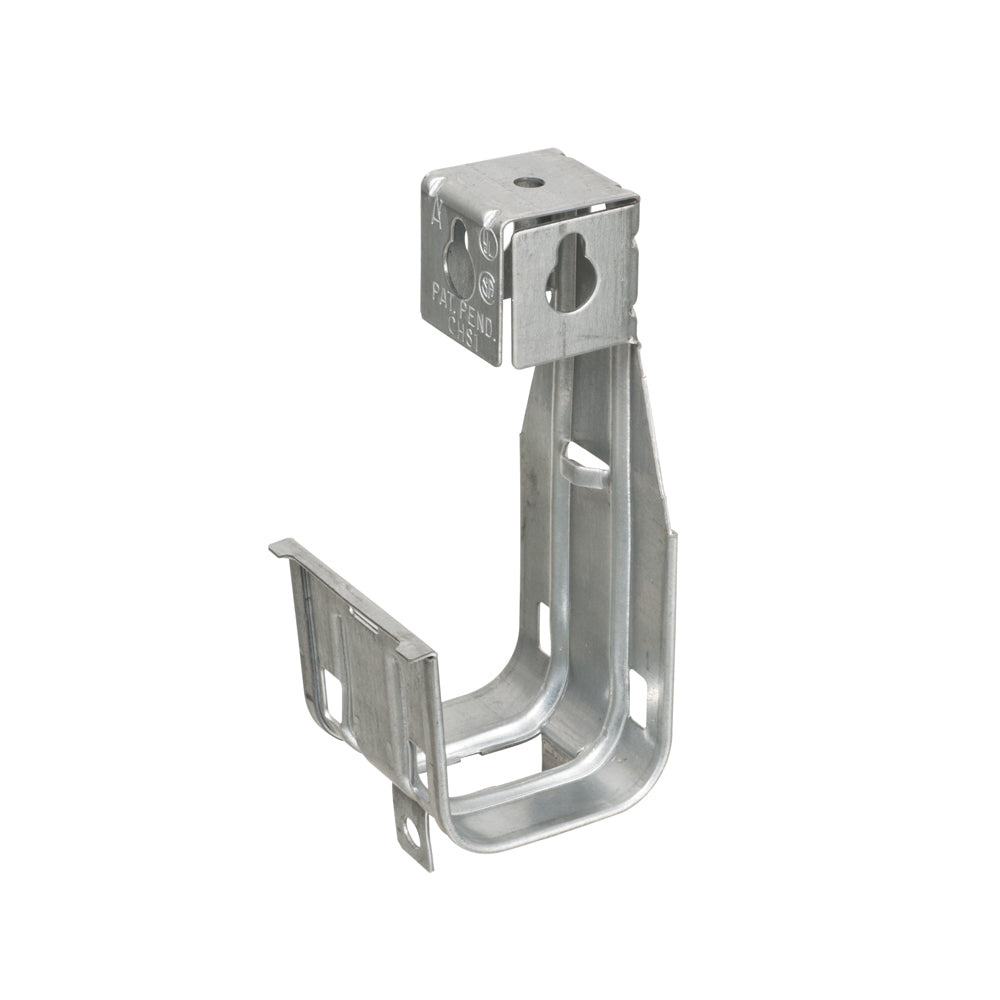

These J-Hooks are convenient for running communications cable and can be used with threaded rods and beam clamps. They support up to 90 Cat5e cables with the center radius of the bundle spread over the 2 inch opening. Attach them easily to various supports, beam clamps and struts. They are also stackable - in parallel or perpendicular orientation for vertical support of multiple tiers of cable and maintain the integrity of high performance data cable.
| Physical Characteristics
|
|---|
| Color |
Silver
|
| Material |
Steel |
| Size |
2 inches |
Trade Size
|
Up to 1 - 1/4 inch |
| Support Rating |
25 lbs
|
Fire Rating
|
Plenum Rated [NEC code 300-22(c)]
|
| Compatibility |
|---|
| CC-TR01-18 |
Threaded Rod, 1/4-20, 18 inch length, Zinc |
| CC-BC0250 |
1" Beam Clamp 75lb Load, 1/4-20 Thread |
| CC-SC01-075-25 |
Screw, 1/4-20, 3/4 inch Length, Pan-Head, Quadrex Zinc (25 pack) |
| CC-HN01-075-25 |
Hex Nut, 1/4-20, Quadrex Zinc (25 pack) |
| Manufacturing Information |
|---|
| Arlington Industries Number |
CHS1 |
| Approvals |
|---|
| UL |
Yes
|
| Packaging Information |
|---|
| Package Quantity
|
1
|
| Product Weight |
0.21 lbs [0.10 kg] |
| Contents |
|---|
| Included in Package |
1 J-Hook |
