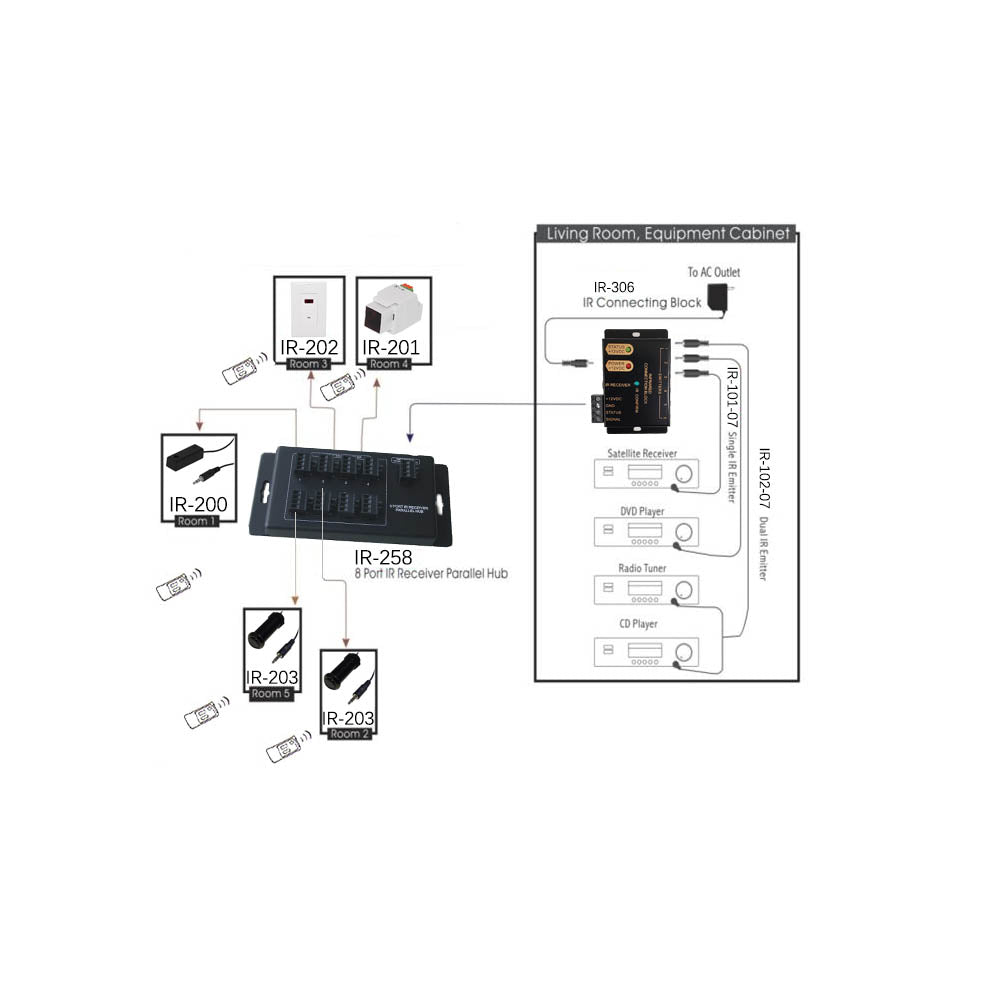

This dual band IR receiver mounts to a single gang standard electrical box using a decora cover plate. It is meant to receive remote control commands and be connected to an IR connecting block.
| Physical Characteristics |
|---|
| Color |
White |
| Material |
ABS |
| Plate Size |
Single Gang |
| Wire Requirements |
Cat5e/Cat6 Cable |
| Performance |
|---|
| IR Frequency Range |
30 KHz to 60 KHz |
| Range |
40ft. at 38 KHz
25ft. at 56 KHz |
| System Status Indicator |
Green LED |
| Talk Back Indicator |
Blue LED |
| Power |
12VDC, 30mA Max |
| Status Power |
12VDC, 3mA Max |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.15 lbs [0.06kg] |
| Contents |
|---|
| Included in Package |

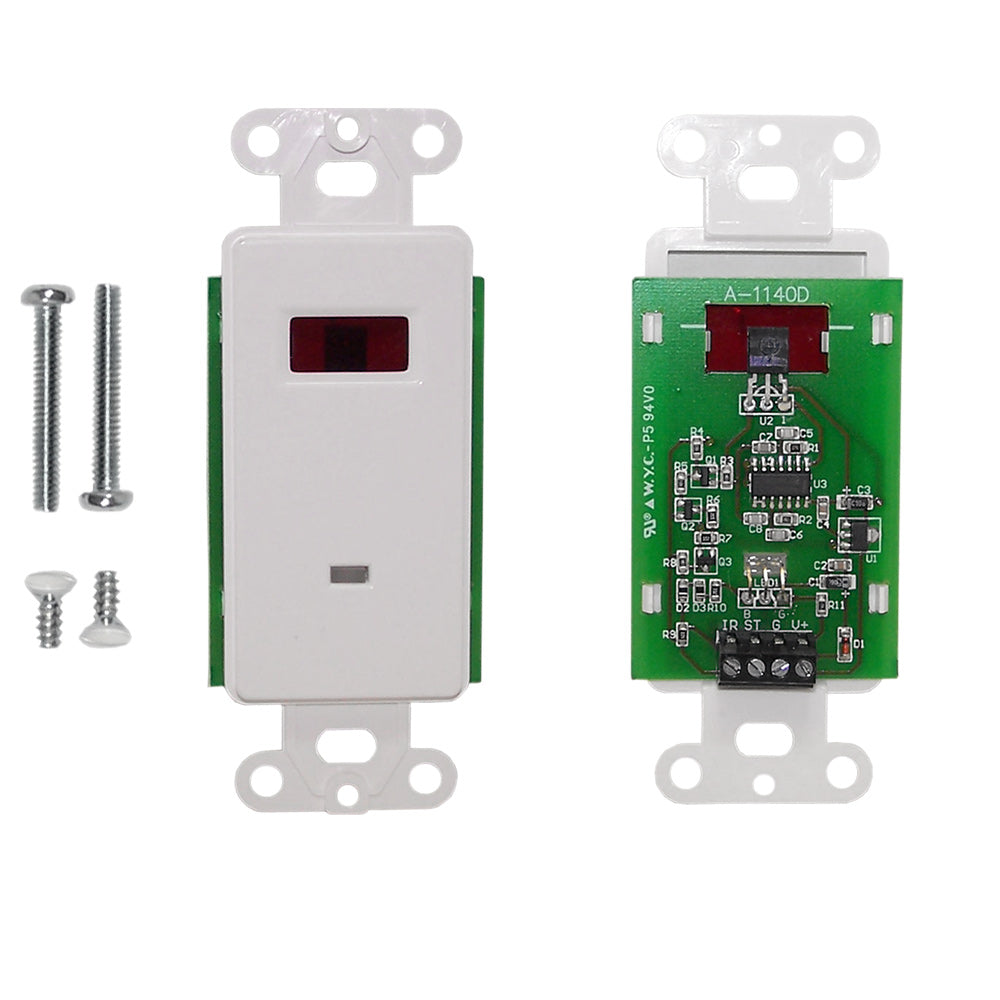

1 - IR Dual Band Decora Wall Plate Receiver Kit
2 - Pair of Screws |
