Name: Indoor/Outdoor 16-Port Plastic Fiber Optic Wall Mount Terminal Box White
Brand: Fiber Optic Wall Boxes & Splice Enclosures
SKU: PP-F1660-GY
Price: 33.3 USD
Availability: InStock

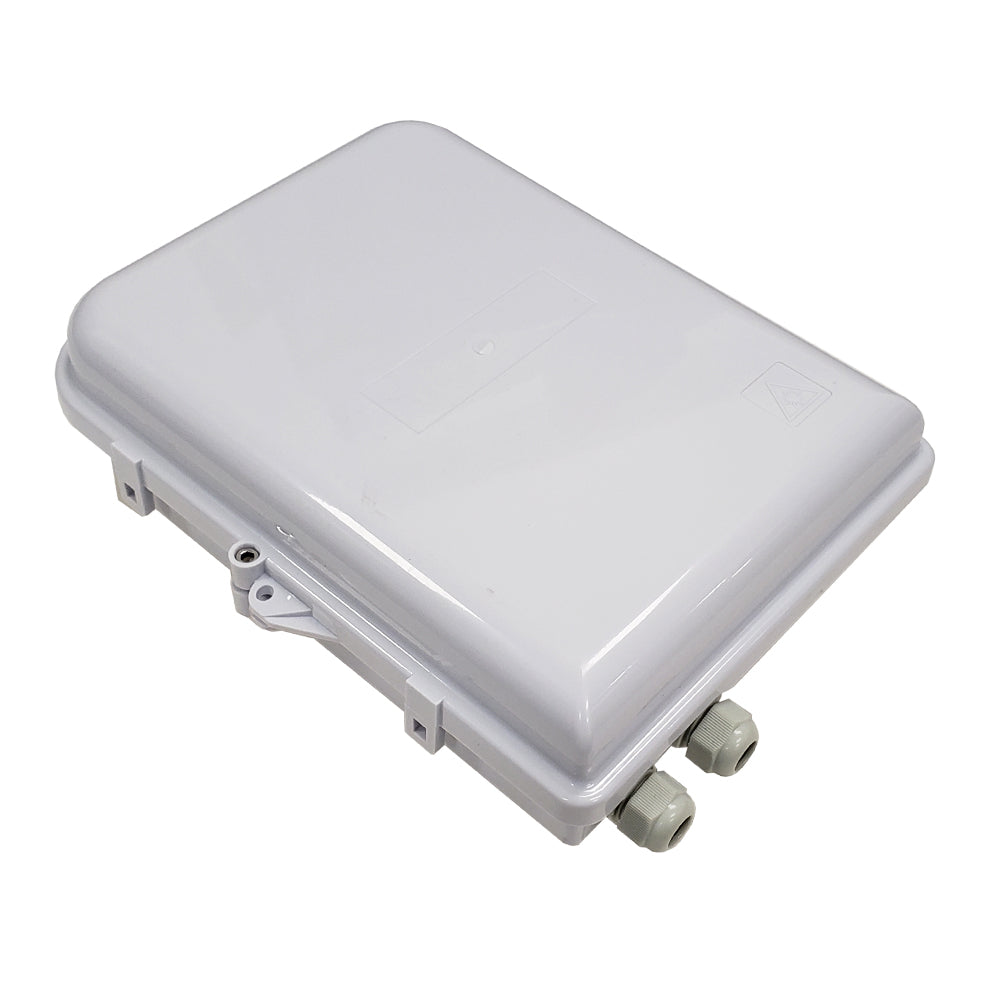

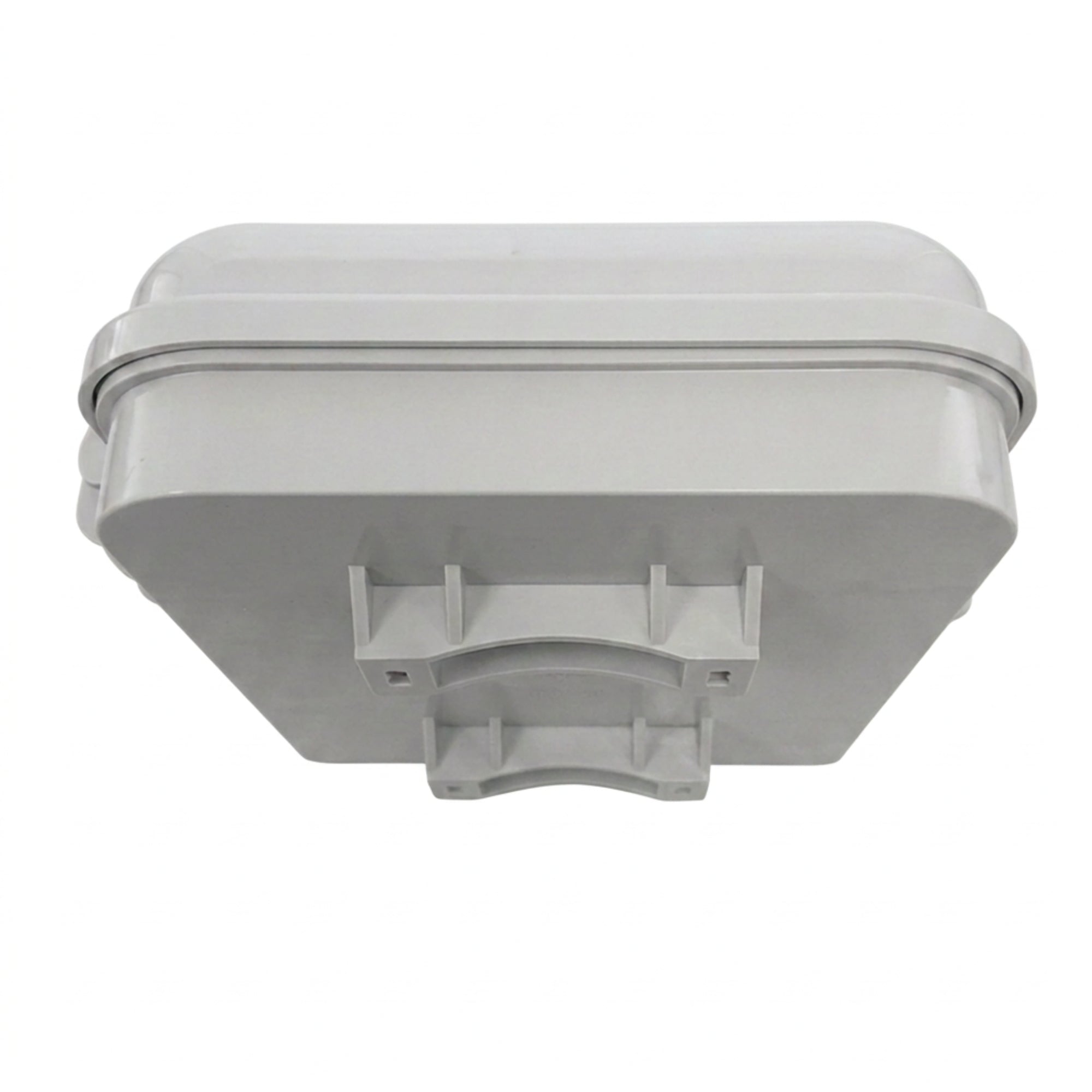

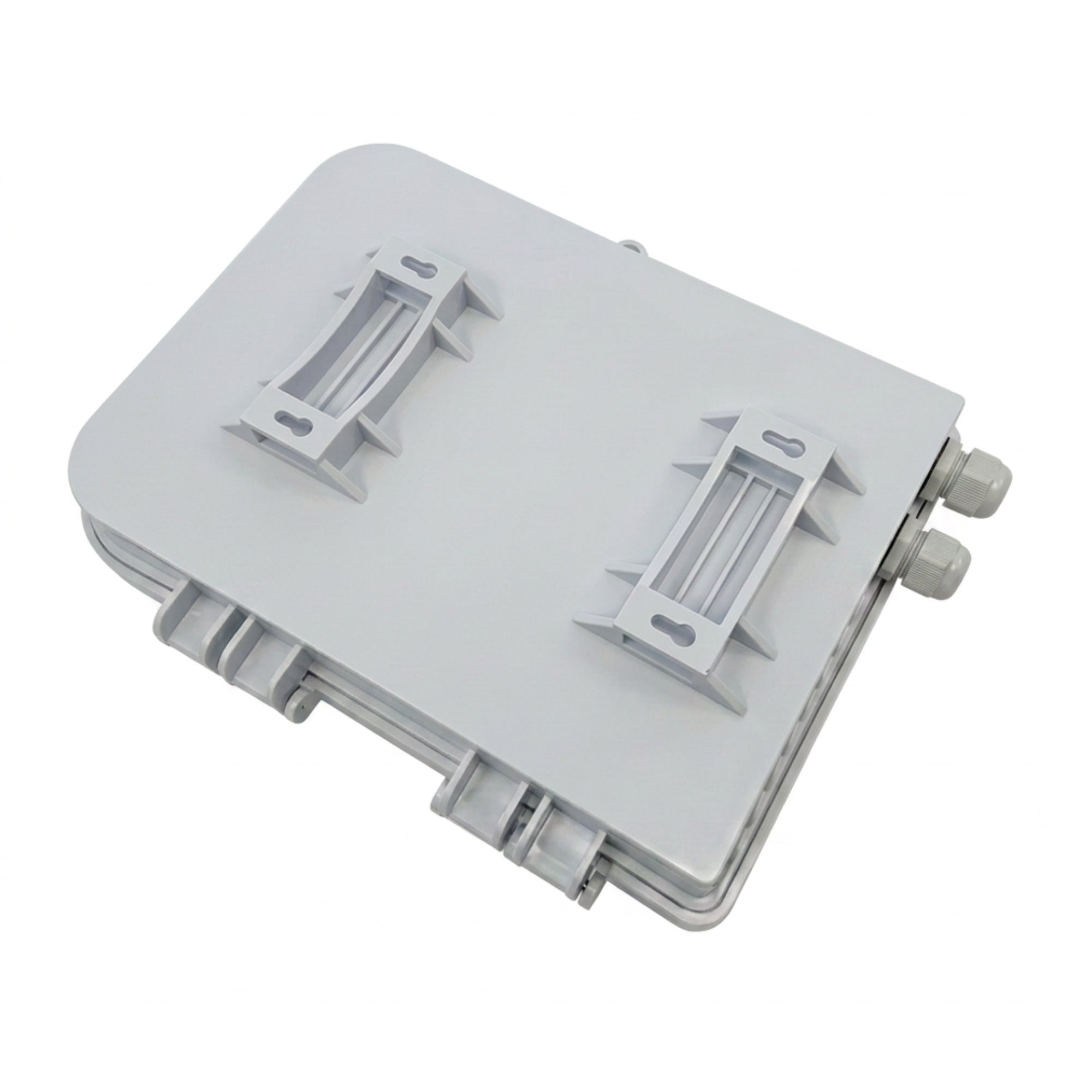

Indoor/Outdoor 16-Port Plastic Fiber Optic Wall Mount Terminal Box White

Description
Spec Sheets
Product Weights

Description

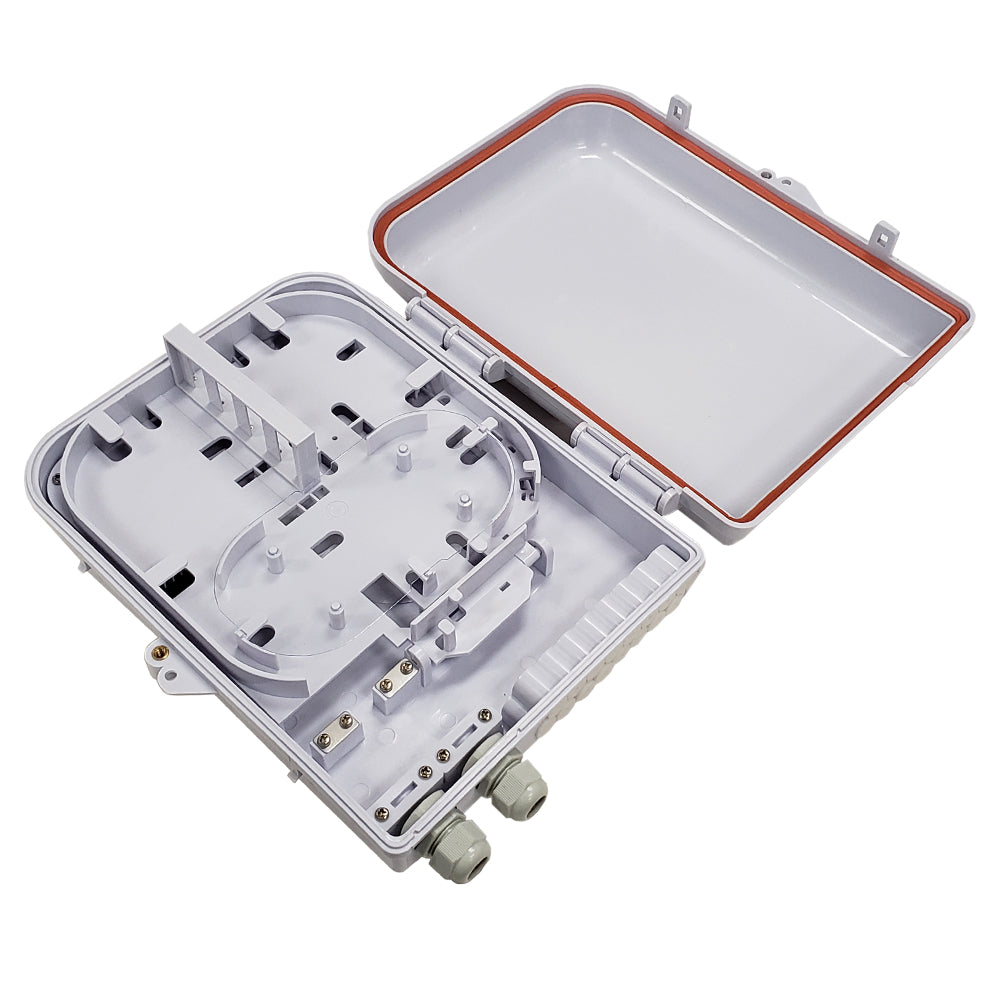

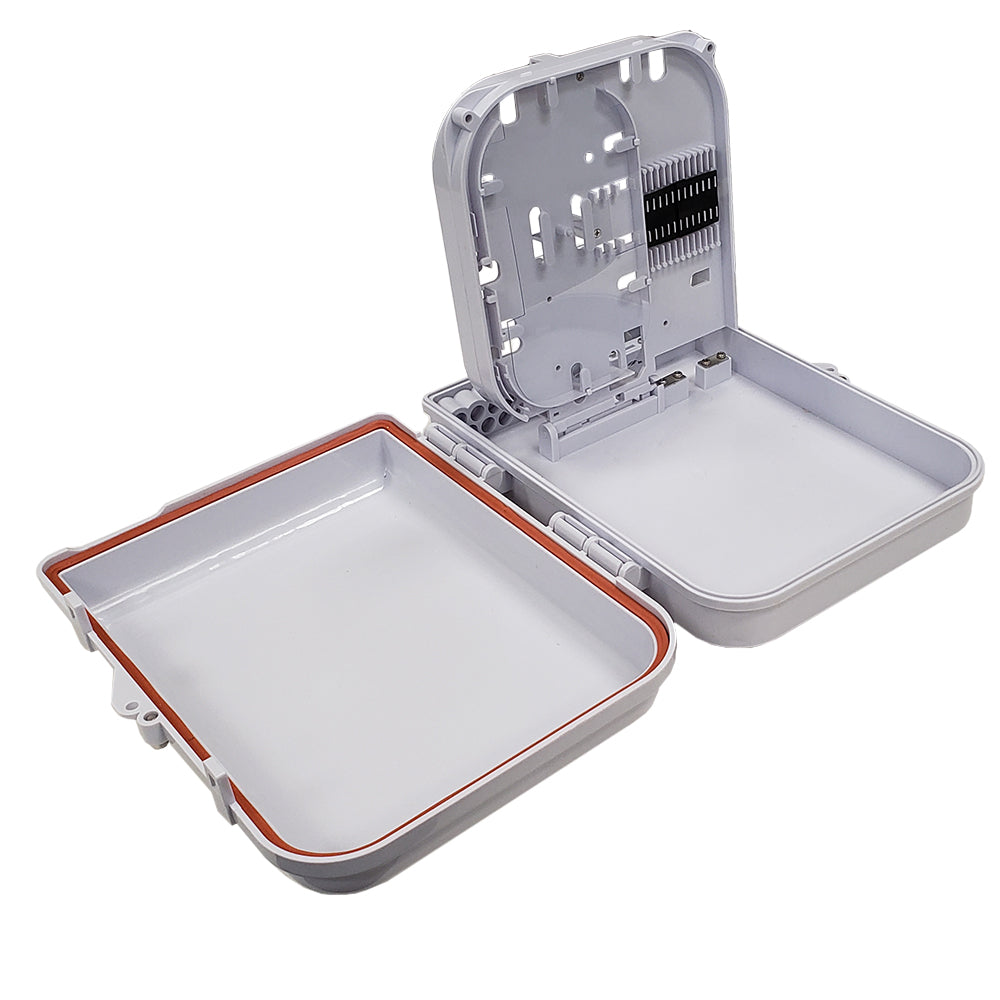

This plastic indoor/outdoor fiber optic terminal box has a latching top for easy access and accepts up 16 SC simplex or 16 LC duplex panel mount couplers. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with 16 splice sleeves, clear tubing, cable ties and mounting hardware.

Physical Characteristics
Color	White
Material	Plastic
Product Dimensions	8.5" W x 12.0" L x 3.75"H
Compatible Adapters
FO-AD604-PM	SC/SC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Blue
FO-AD604-PMA	SC/SC APC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Green
FO-AD804-PM	SC/SC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Simplex Ceramic Panel Mount, Aqua
FO-AD108-PM	LC/LC Fiber Coupler F/F Multimode OM1/OM2 Duplex Ceramic Panel Mount, Beige
FO-AD208-PM	LC/LC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Blue
FO-AD208-PMA	LC/LC APC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Green
FO-AD408-PM	LC/LC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Duplex Ceramic Panel Mount, Aqua
Environmental
RoHS	Yes
Packaging Information
Package Quantity	1
Product Weight	2.42 lbs [1.09kg]
Contents

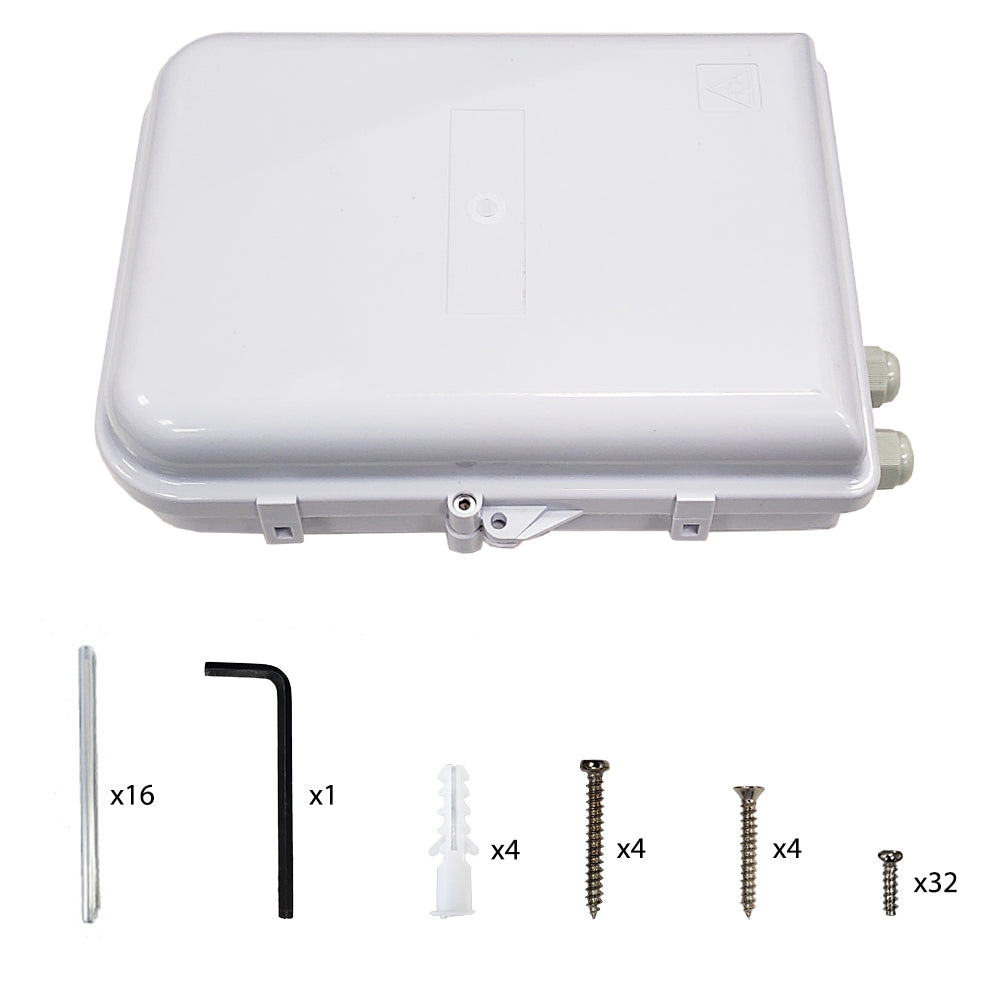

Included in Package	1 - Fiber Terminal Box 16 - Splice Sleeves 1 - Clear Tube 2 - Cable Ties 4 - Mounting Hardware 2 - Cable Glands (3/8 - 1/2" diameter cables)
