Overview

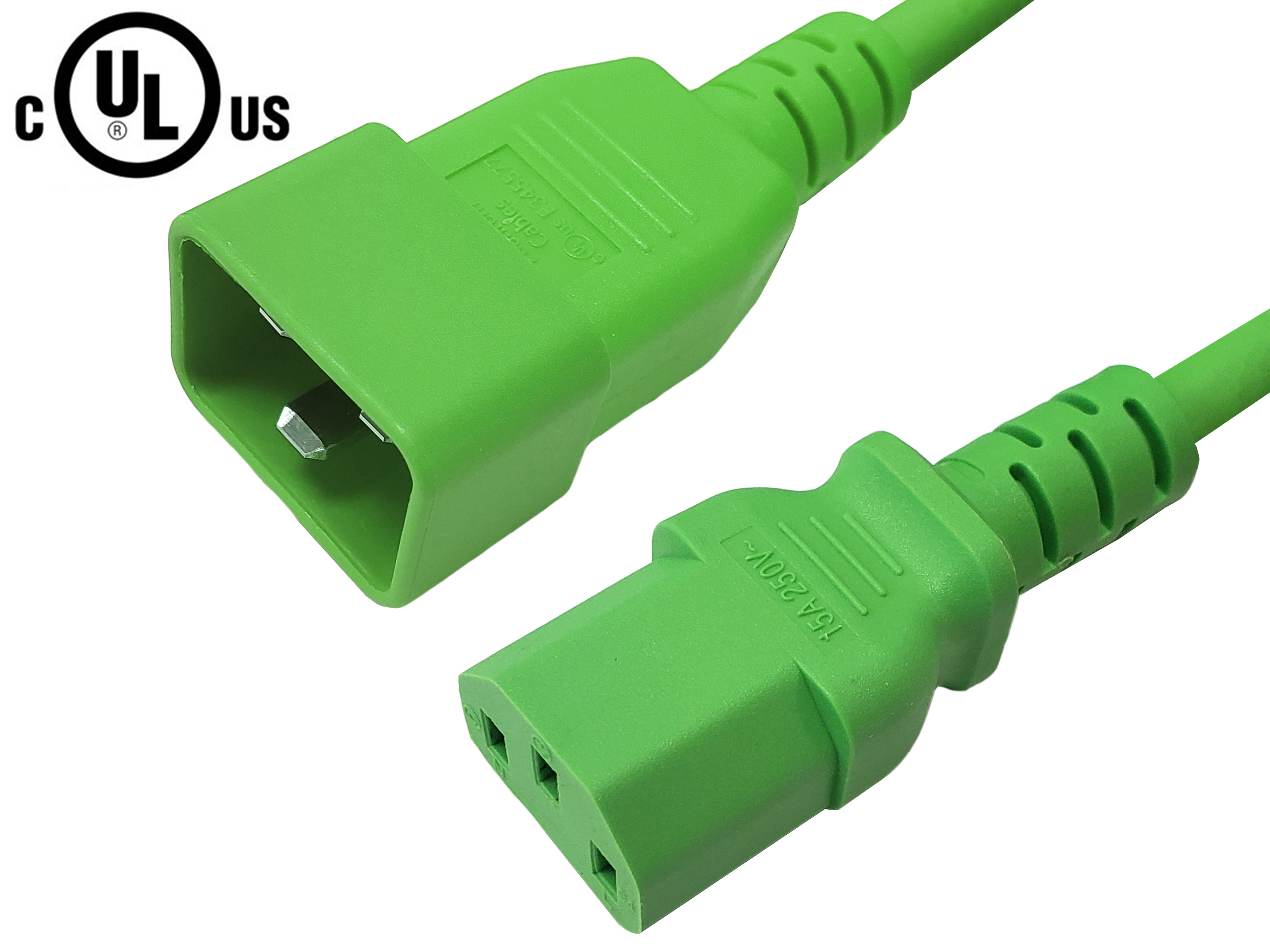

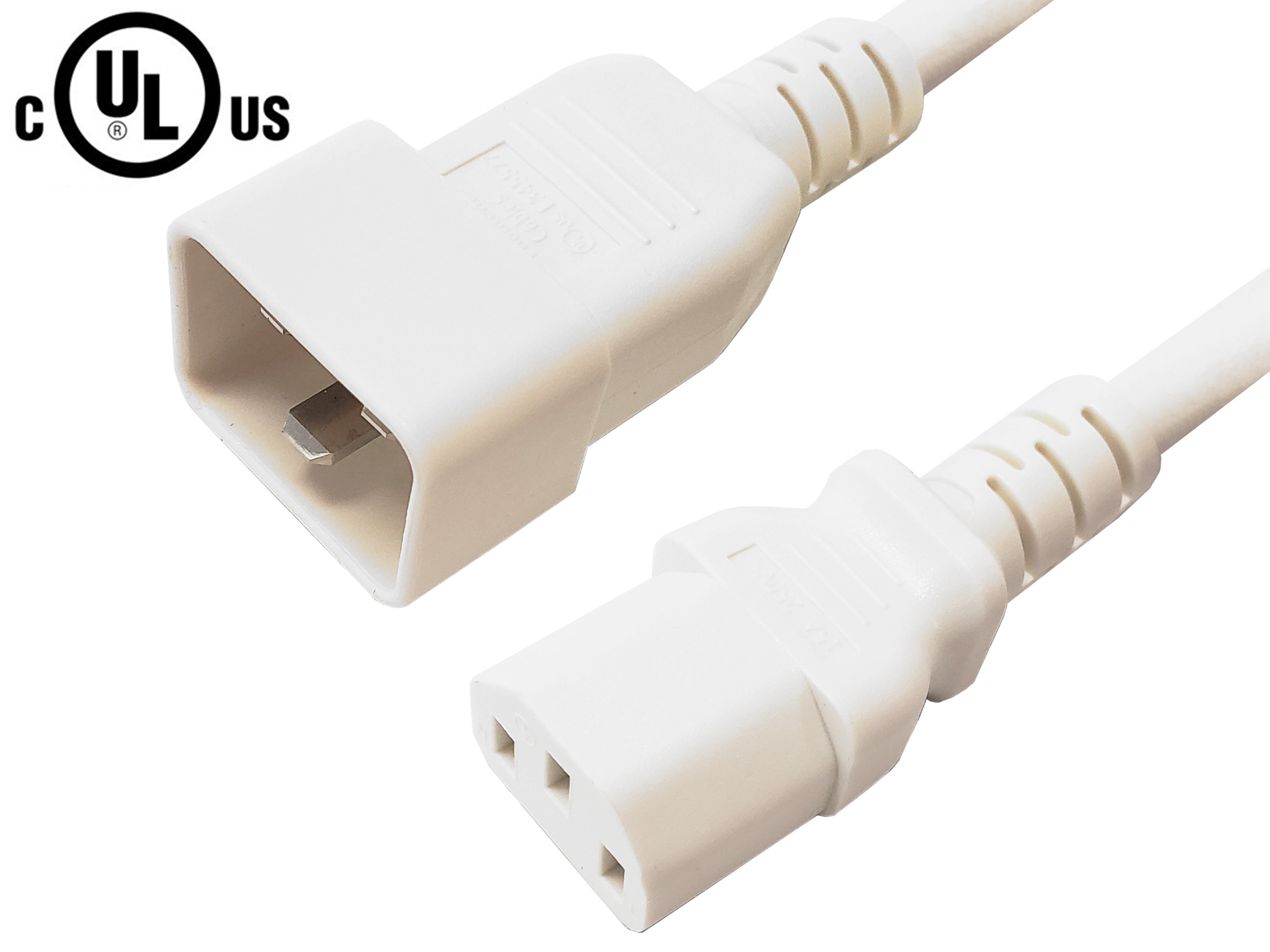

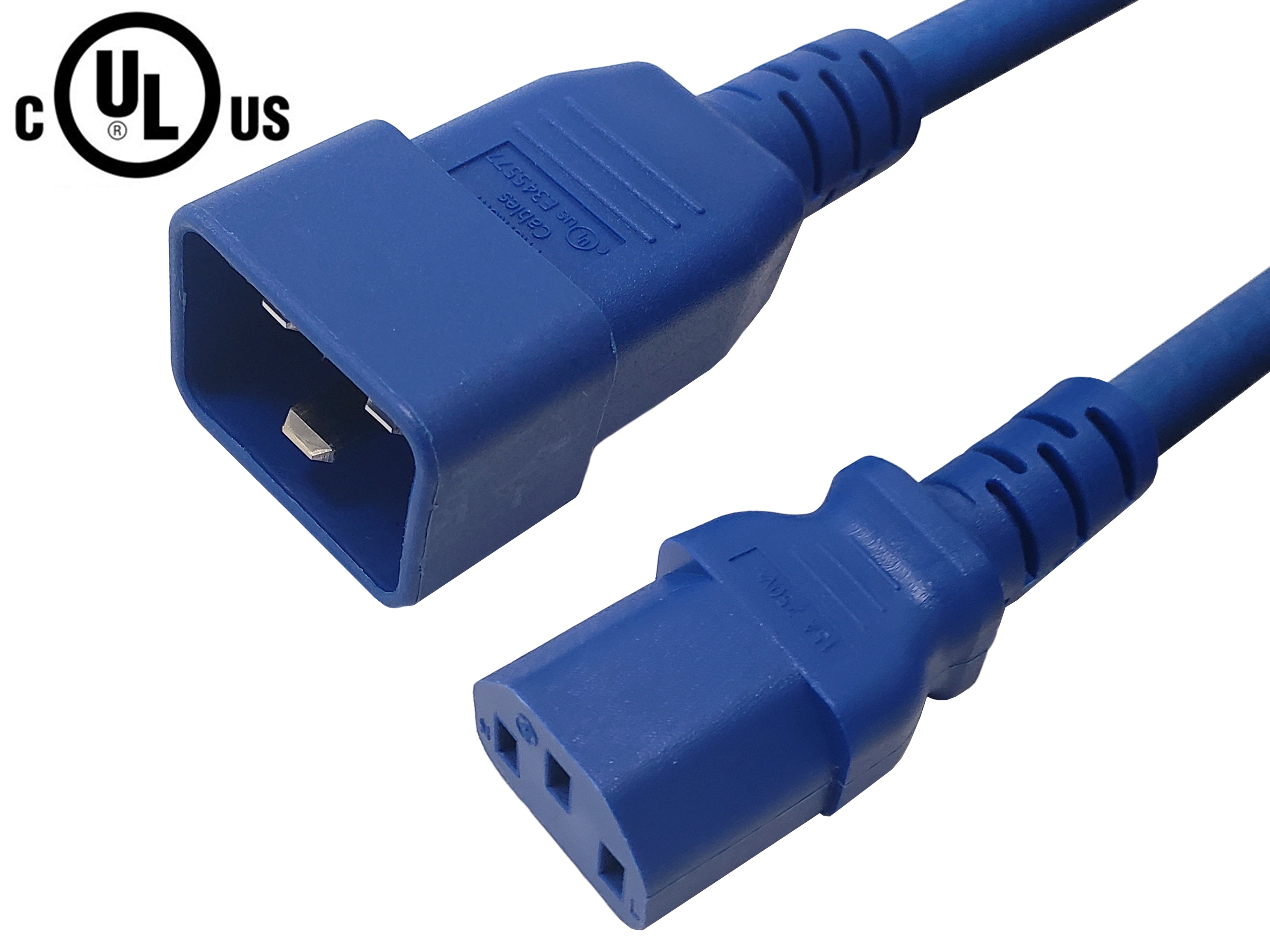

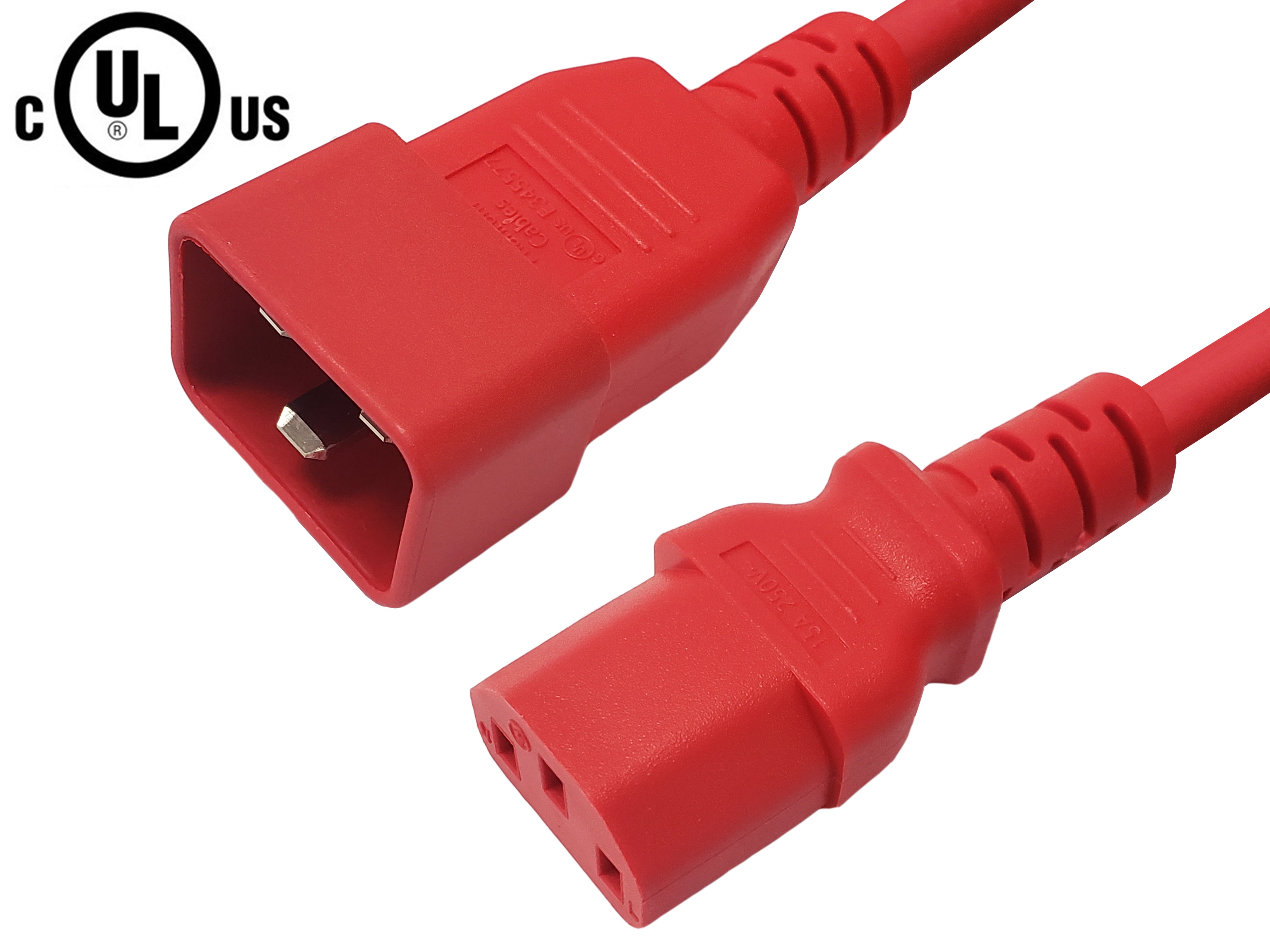

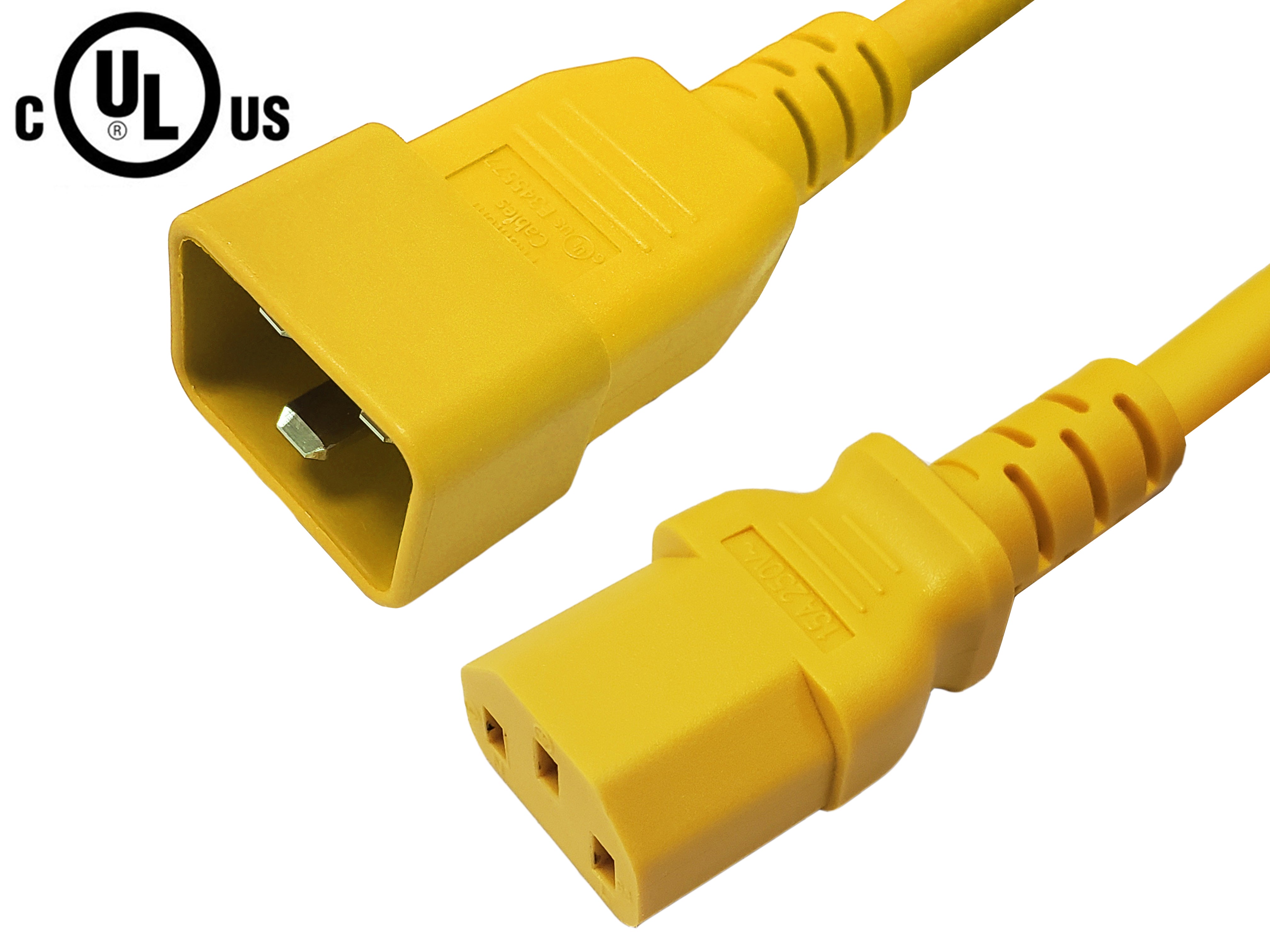

This power cord consists of a C20 male on one end and a C13 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|
|
Heavy Duty SJT JacketMolded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable. 100% Continuity and High Voltage TestedAll cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. c(UL)us ApprovedBoth cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black / Blue / Green / Red / White / Yellow |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |

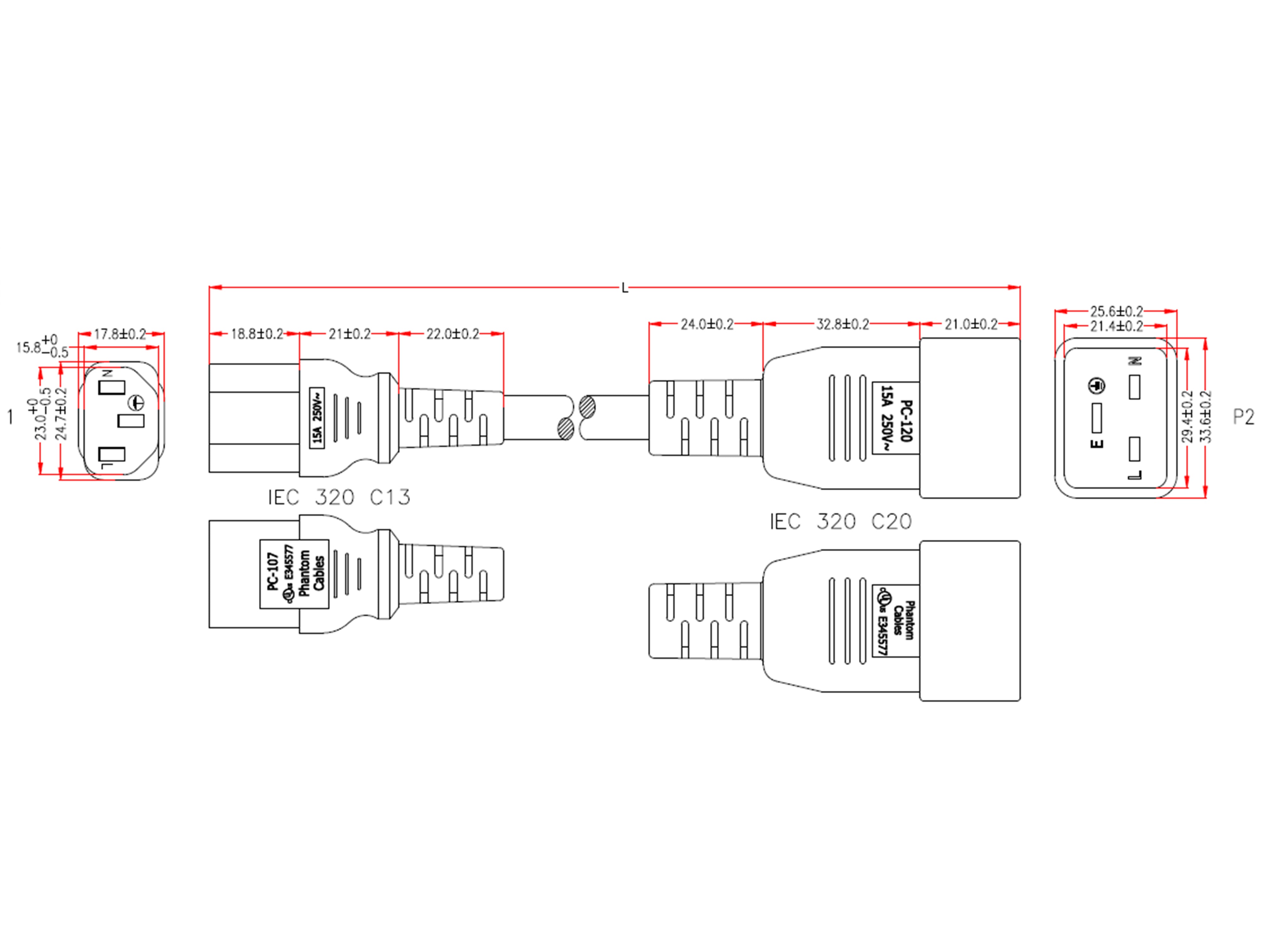

| Connector A | IEC 60320 C20 |
| Connector B | IEC 60320 C13 |
| Performance | |
| Power Rating | 15 Amp / 250 Volt |
| Approvals | |
| C20 | c(UL)us |
| C13 | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Product Support | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Country of Origin | Vietnam |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 4ft | 6ft | 8ft | 10ft | 12ft |
|---|---|---|---|---|---|---|---|
| 0.24 lbs | 0.33 lbs | 0.52 lbs | 0.63 lbs | 0.71 lbs | 0.88 lbs | 1.12 lbs | 1.28 lbs |
| SKU | Options | Weight |
| PWC-124-01 | 1ft / Black | 0.17 lb |
| PWC-124-02 | 2ft / Black | 0.29 lb |
| PWC-124-03 | 3ft / Black | 0.36 lb |
| PWC-124-04 | 4ft / Black | 0.47 lb |
| PWC-124-06 | 6ft / Black | 0.65 lb |
| PWC-124-08 | 8ft / Black | 0.85 lb |
| PWC-124-10 | 10ft / Black | 1.03 lb |
| PWC-124-12 | 12ft / Black | 1.23 lb |
| PWC-124-03BL | 3ft / Blue | 0.36 lb |
| PWC-124-04BL | 4ft / Blue | 0.47 lb |
| PWC-124-06BL | 6ft / Blue | 0.65 lb |
| PWC-124-08BL | 8ft / Blue | 0.85 lb |
| PWC-124-12BL | 12ft / Blue | 1.23 lb |
| PWC-124-03GN | 3ft / Green | 0.36 lb |
| PWC-124-04GN | 4ft / Green | 0.47 lb |
| PW-124-06GN | 6ft / Green | 0.65 lb |
| PWC-124-08GN | 8ft / Green | 0.85 lb |
| PW-124-12GN | 12ft / Green | 1.23 lb |
| PWC-124-03RD | 3ft / Red | 0.36 lb |
| PWC-124-04RD | 4ft / Red | 0.47 lb |
| PWC-124-06RD | 6ft / Red | 0.65 lb |
| PWC-124-08RD | 8ft / Red | 0.85 lb |
| PW-124-12RD | 12ft / Red | 1.23 lb |
| PWC-124-03WH | 3ft / White | 0.36 lb |
| PWC-124-04WH | 4ft / White | 0.47 lb |
| PWC-124-06WH | 6ft / White | 0.65 lb |
| PW-124-08WH | 8ft / White | 0.85 lb |
| PW-124-12WH | 12ft / White | 1.23 lb |
| PWC-124-03YL | 3ft / Yellow | 0.36 lb |
| PWC-124-04YL | 4ft / Yellow | 0.47 lb |
| PWC-124-06YL | 6ft / Yellow | 0.65 lb |
| PWC-124-08YL | 8ft / Yellow | 0.85 lb |
| PW-124-12YL | 12ft / Yellow | 1.23 lb |
