C13 to IEC C14 Power Cable - SJT
C13 to IEC C14 Power Cable - SJT

IEC C13 to IEC C14 Power Cable - SJT Jacket - 16AWG (13A 250V)

AC Power CordsSKU: PWC-100B-01
Length: 1ft
Price:
$1.93 USD
Stock:
In stock

Description

Overview

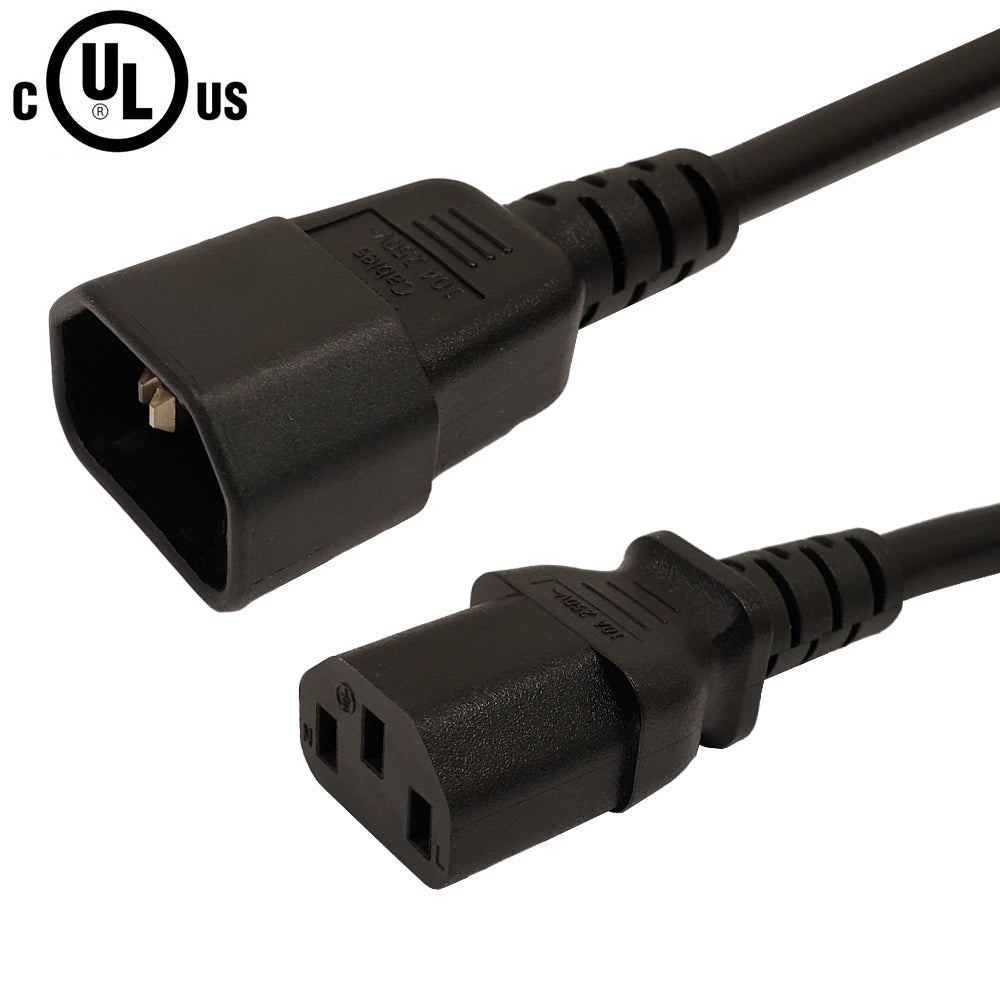

This power cord consists of a C14 male on one end and a C13 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 16AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C13
Connector B IEC 60320 C14
Performance
Power Rating 13 Amp / 250 Volt (16AWG)
Approvals
C13 c(UL)us
C14 c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 1.5ft 2ft 3ft 4ft 5ft 6ft 8ft 10ft 12ft 15ft 25ft
0.12 lbs 0.19 lbs 0.22 lbs 0.29 lbs 0.35 lbs 0.44 lbs 0.50 lbs 0.59 lbs 0.70 lbs 0.80 lbs 1.00 lbs 1.57 lbs

Download attachment - PWC-100B-xx Spec Sheet

REACH Certificate

RoHS Certificate

SKU Options Weight
PWC-100B-01 1ft 0.17 lb
PWC-100B-01.5 1.5ft 0.22 lb
PWC-100B-02 2ft 0.29 lb
PWC-100B-02.5 2.5ft 0.31 lb
PWC-100B-03 3ft 0.36 lb
PWC-100B-03.5 3.5ft 0.42 lb
PWC-100B-04 4ft 0.47 lb
PWC-100B-05 5ft 0.2 lb
PWC-100B-06 6ft 0.65 lb
PWC-100B-08 8ft 0.85 lb
PWC-100B-10 10ft 1.03 lb
PWC-100B-12 12ft 1.23 lb
PWC-100B-15 15ft 1.5 lb
PWC-100B-25 25ft 2.51 lb
