IEC C13 to IEC C14 Power Cable - SJT Jacket - 14AWG (15A 250V)

AC Power CordsSKU: PW-100C-01
Length: 1ft
Color: Black
Price:
$2.33 USD
Stock:
In stock

Description

Overview

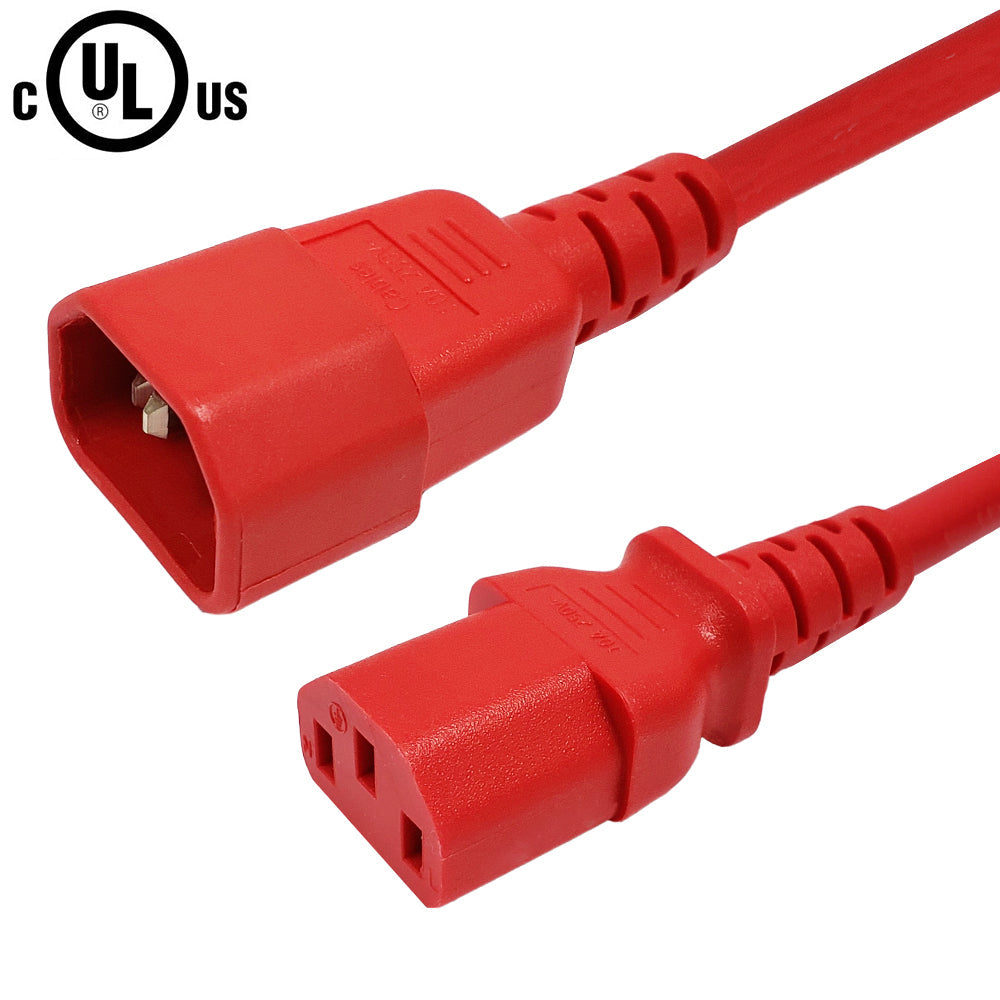

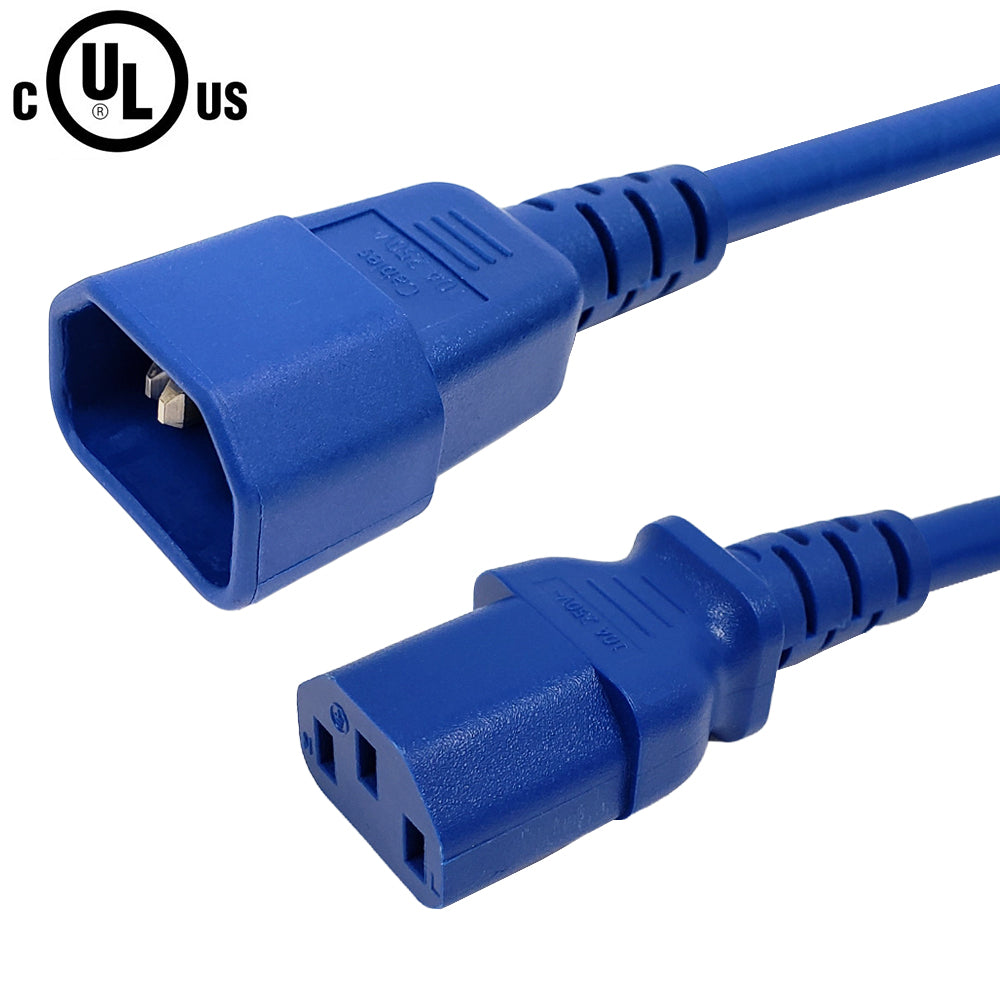

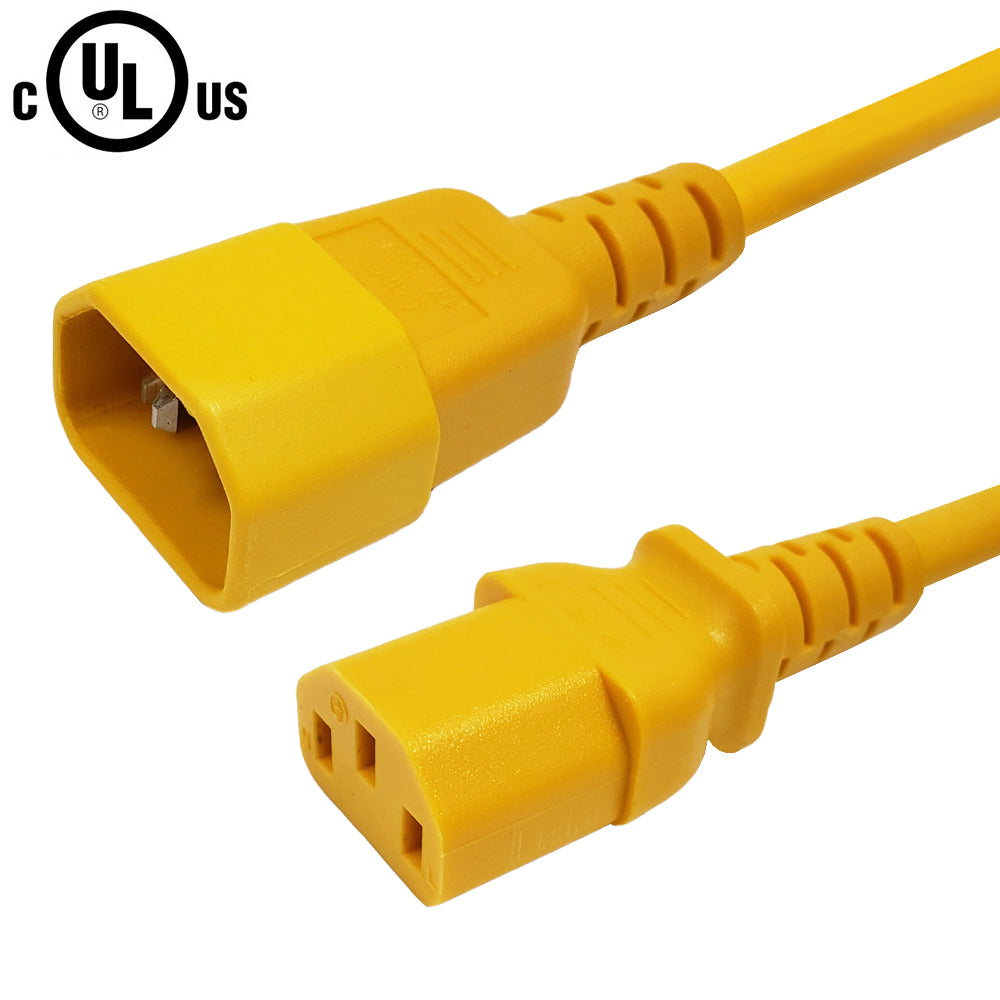

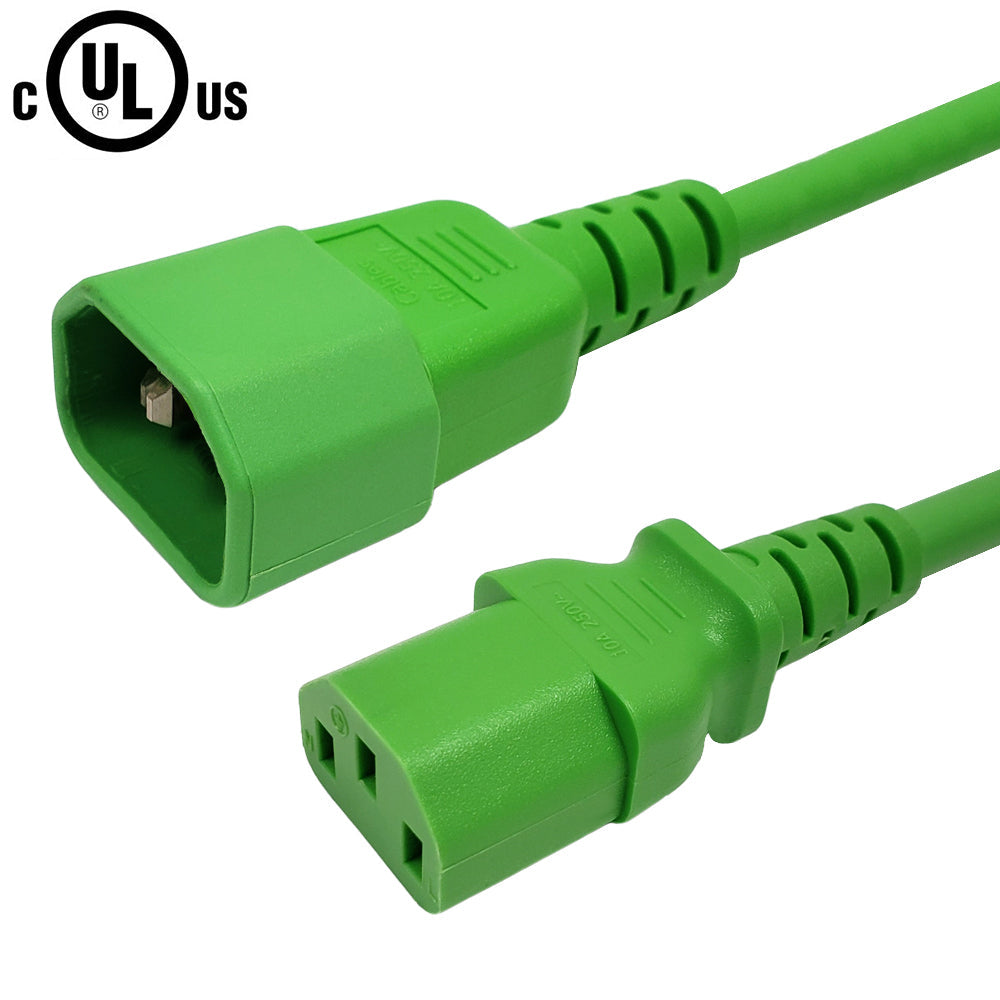

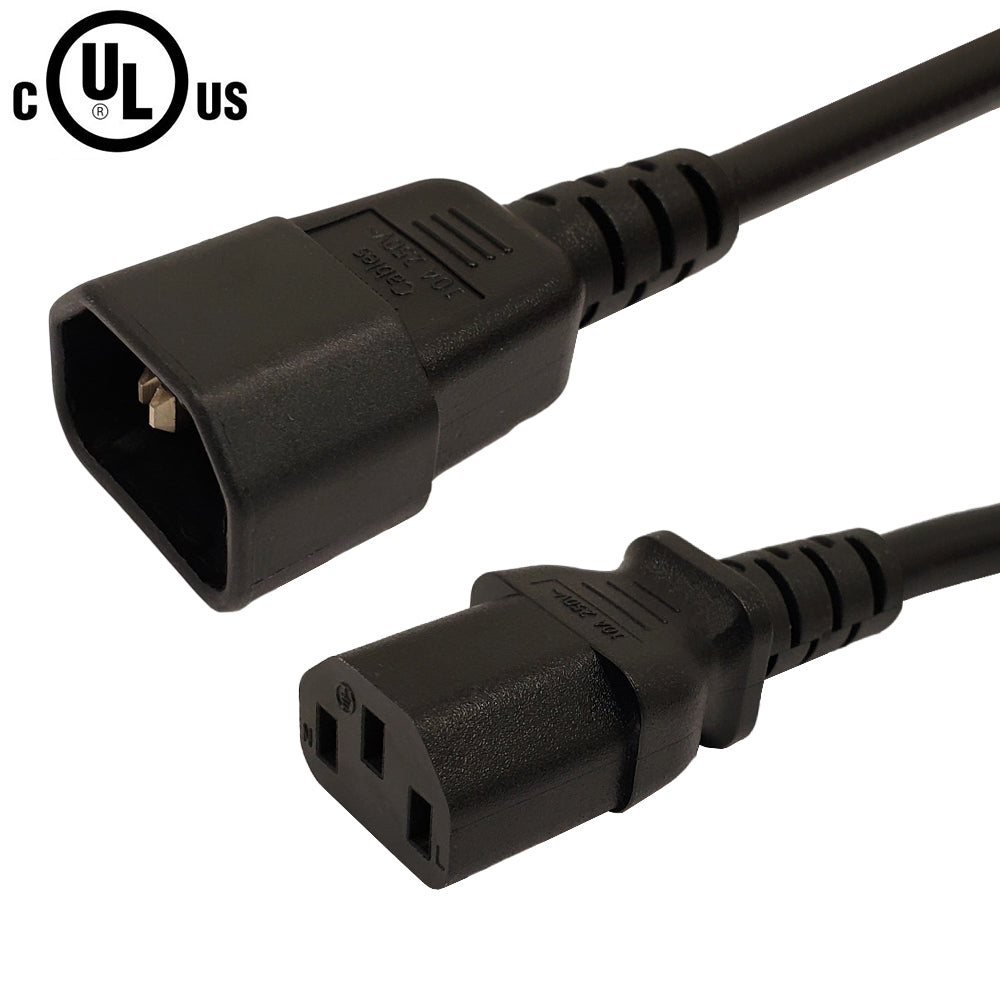

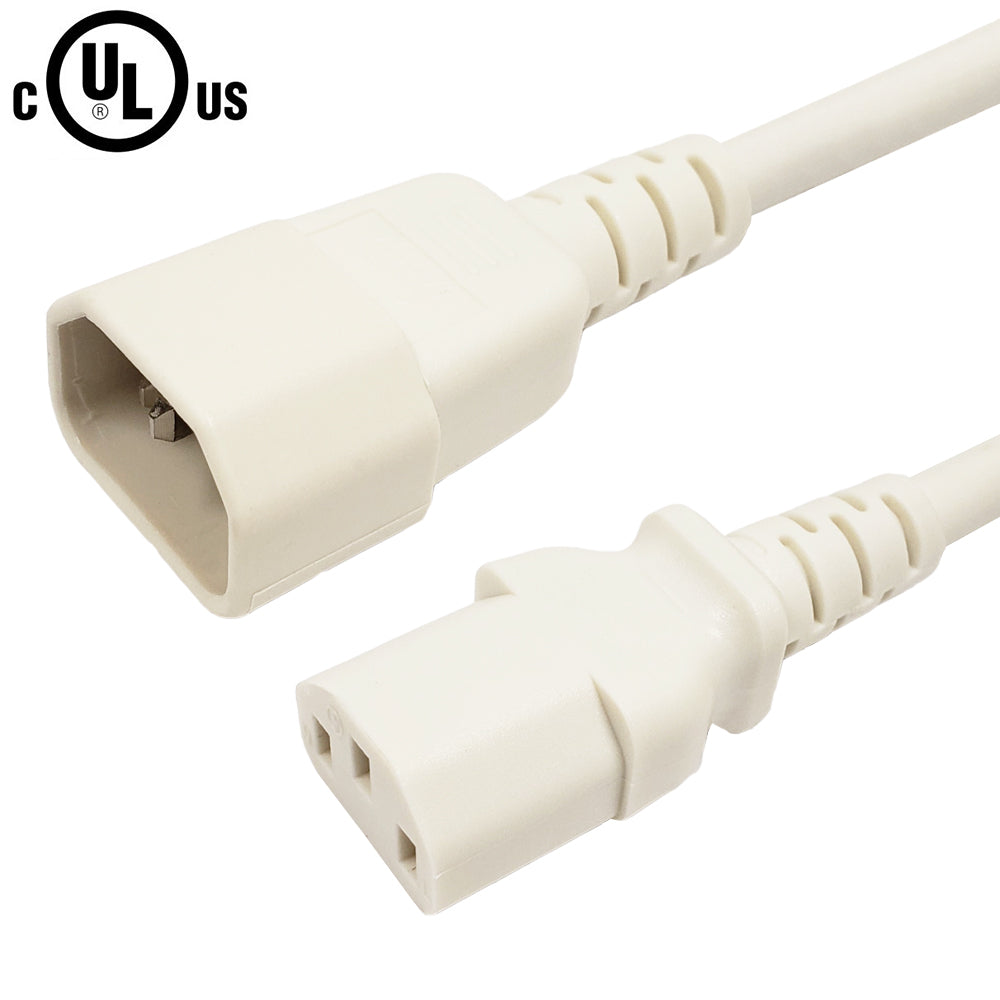

This power cord consists of a C14 male on one end and a C13 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black/Blue/Green/Red/White/Yellow
Number of Conductors 3 Conductor
Wire Gauge 14AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connectors
Connector A IEC 60320 C13
Connector B IEC 60320 C14
Performance
Power Rating 15 Amp / 250 Volt (14AWG)
Approvals
C13 c(UL)us
C14 c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Warranty Limited Lifetime
Cable Weights
1ft 1.5ft 2ft 3ft 4ft 5ft 6ft 8ft 10ft 12ft 15ft 25ft
0.12 lbs 0.19 lbs 0.22 lbs 0.29 lbs 0.35 lbs 0.44 lbs 0.50 lbs 0.59 lbs 0.70 lbs 0.80 lbs 1.00 lbs 1.57 lbs

Download attachment - PW-100C-xx Spec Sheet

Download attachment - PWC-100C-xx Spec Sheet

REACH Certificate

RoHS Certificate

SKU Options Weight
PW-100C-01 1ft / Black 0.17 lb
PWC-100C-01.5 1.5ft / Black 0.22 lb
PWC-100C-02 2ft / Black 0.29 lb
PWC-100C-02.5 2.5ft / Black 0.31 lb
PWC-100C-03 3ft / Black 0.36 lb
PWC-100C-03.5 3.5ft / Black 0.42 lb
PWC-100C-04 4ft / Black 0.47 lb
PWC-100C-05 5ft / Black 0.56 lb
PWC-100C-06 6ft / Black 0.65 lb
PWC-100C-08 8ft / Black 0.85 lb
PWC-100C-10 10ft / Black 1.03 lb
PWC-100C-12 12ft / Black 1.23 lb
PWC-100C-15 15ft / Black 1.5 lb
PWC-100C-25 25ft / Black 2.51 lb
PWC-100C-01BL 1ft / Blue 0.17 lb
PWC-100C-02BL 2ft / Blue 0.29 lb
PWC-100C-03BL 3ft / Blue 0.36 lb
PWC-100C-04BL 4ft / Blue 0.47 lb
PWC-100C-05BL 5ft / Blue 0.56 lb
PWC-100C-06BL 6ft / Blue 0.65 lb
PWC-100C-08BL 8ft / Blue 0.85 lb
PWC-100C-10BL 10ft / Blue 1.03 lb
PWC-100C-12BL 12ft / Blue 1.23 lb
PWC-100C-15BL 15ft / Blue 1.5 lb
PWC-100C-01GN 1ft / Green 0.17 lb
PWC-100C-02GN 2ft / Green 0.29 lb
PWC-100C-03GN 3ft / Green 0.36 lb
PWC-100C-04GN 4ft / Green 0.47 lb
PWC-100C-05GN 5ft / Green 0.56 lb
PWC-100C-06GN 6ft / Green 0.65 lb
PW-100C-08GN 8ft / Green 0.85 lb
PWC-100C-10GN 10ft / Green 1.03 lb
PW-100C-12GN 12ft / Green 1.23 lb
PW-100C-15GN 15ft / Green 1.5 lb
PWC-100C-01RD 1ft / Red 0.17 lb
PWC-100C-02RD 2ft / Red 0.29 lb
PWC-100C-03RD 3ft / Red 0.36 lb
PWC-100C-04RD 4ft / Red 0.47 lb
PWC-100C-05RD 5ft / Red 0.56 lb
PWC-100C-06RD 6ft / Red 0.65 lb
PWC-100C-08RD 8ft / Red 0.85 lb
PWC-100C-10RD 10ft / Red 1.03 lb
PWC-100C-12RD 12ft / Red 1.23 lb
PWC-100C-15RD 15ft / Red 1.5 lb
PW-100C-01WH 1ft / White 0.17 lb
PWC-100C-02WH 2ft / White 0.29 lb
PWC-100C-03WH 3ft / White 0.36 lb
PWC-100C-04WH 4ft / White 0.47 lb
PWC-100C-05WH 5ft / White 0.56 lb
PWC-100C-06WH 6ft / White 0.65 lb
PW-100C-08WH 8ft / White 0.85 lb
PW-100C-10WH 10ft / White 1.03 lb
PW-100C-12WH 12ft / White 1.23 lb
PW-100C-15WH 15ft / White 1.5 lb
PWC-100C-01YL 1ft / Yellow 0.17 lb
PWC-100C-02YL 2ft / Yellow 0.29 lb
PWC-100C-03YL 3ft / Yellow 0.36 lb
PWC-100C-04YL 4ft / Yellow 0.47 lb
PWC-100C-05YL 5ft / Yellow 0.56 lb
PWC-100C-06YL 6ft / Yellow 0.65 lb
PWC-100C-08YL 8ft / Yellow 0.85 lb
PWC-100C-10YL 10ft / Yellow 1.03 lb
PW-100C-12YL 12ft / Yellow 1.23 lb
PW-100C-15YL 15ft / Yellow 1.5 lb
