Description

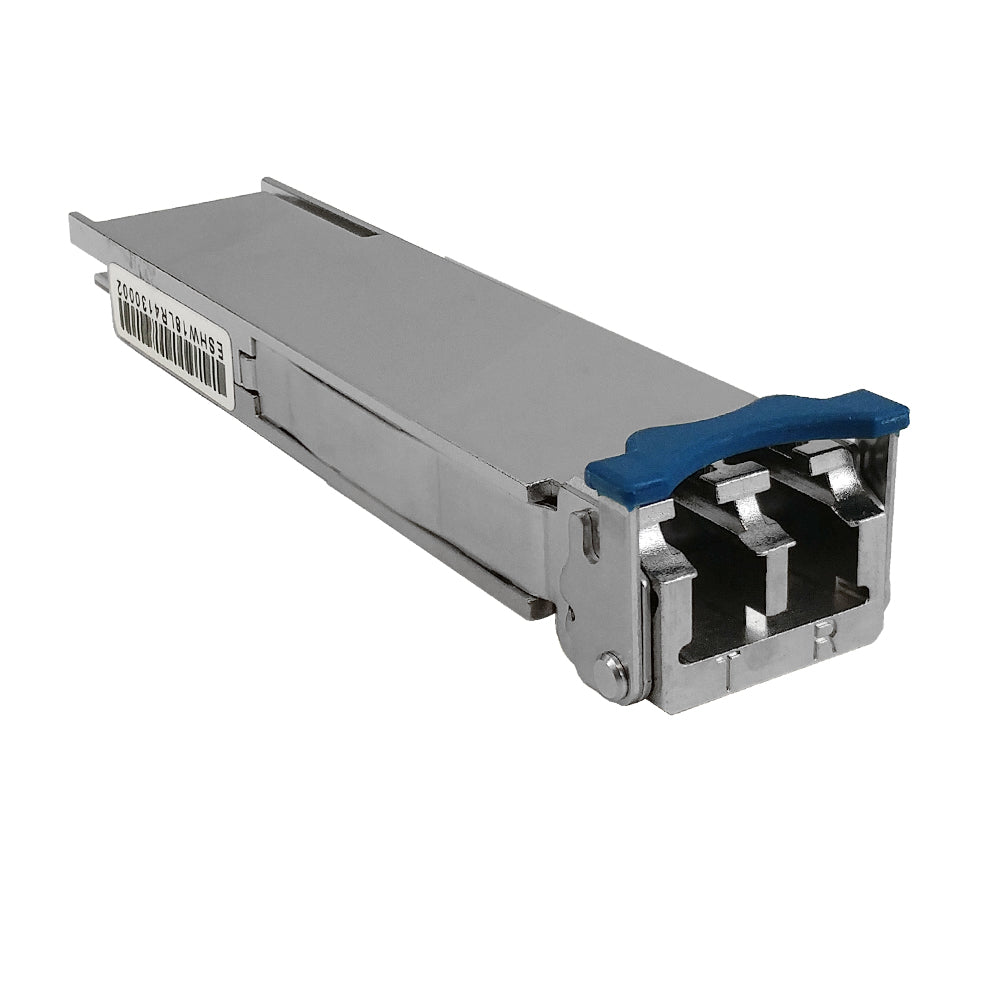

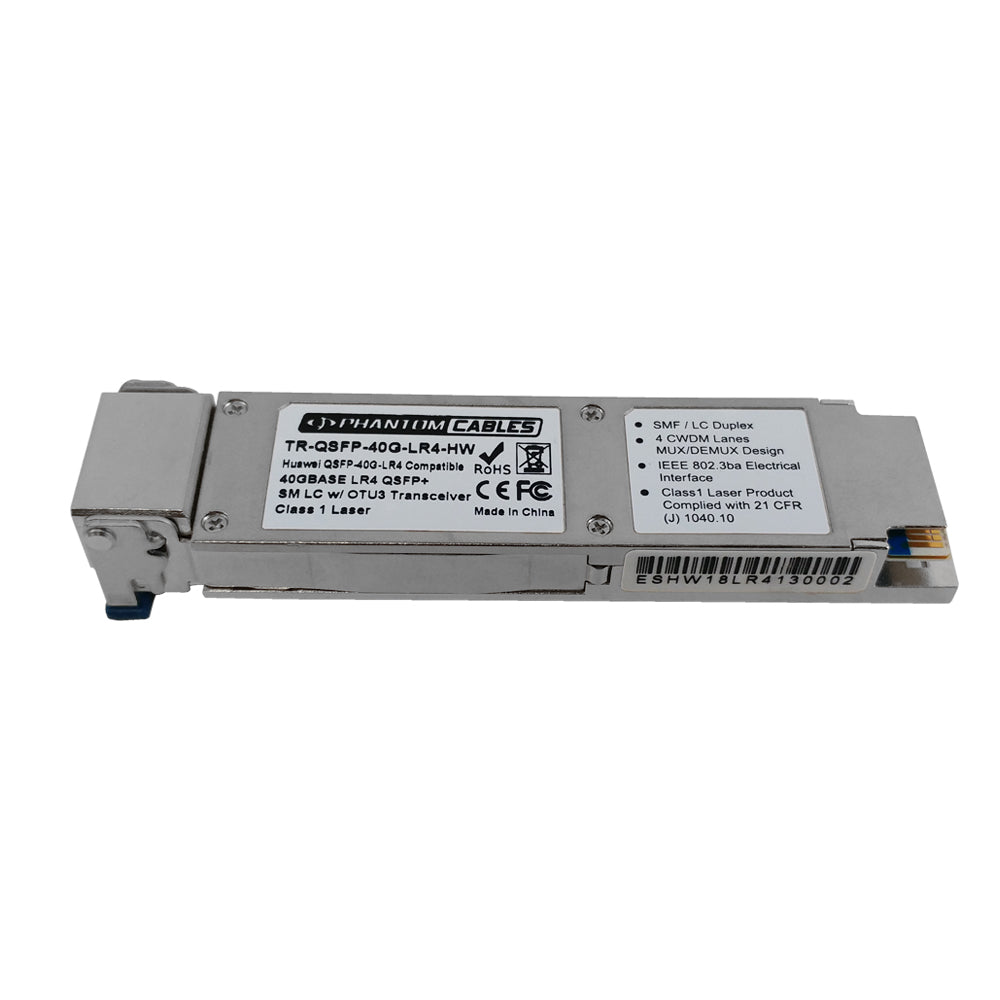

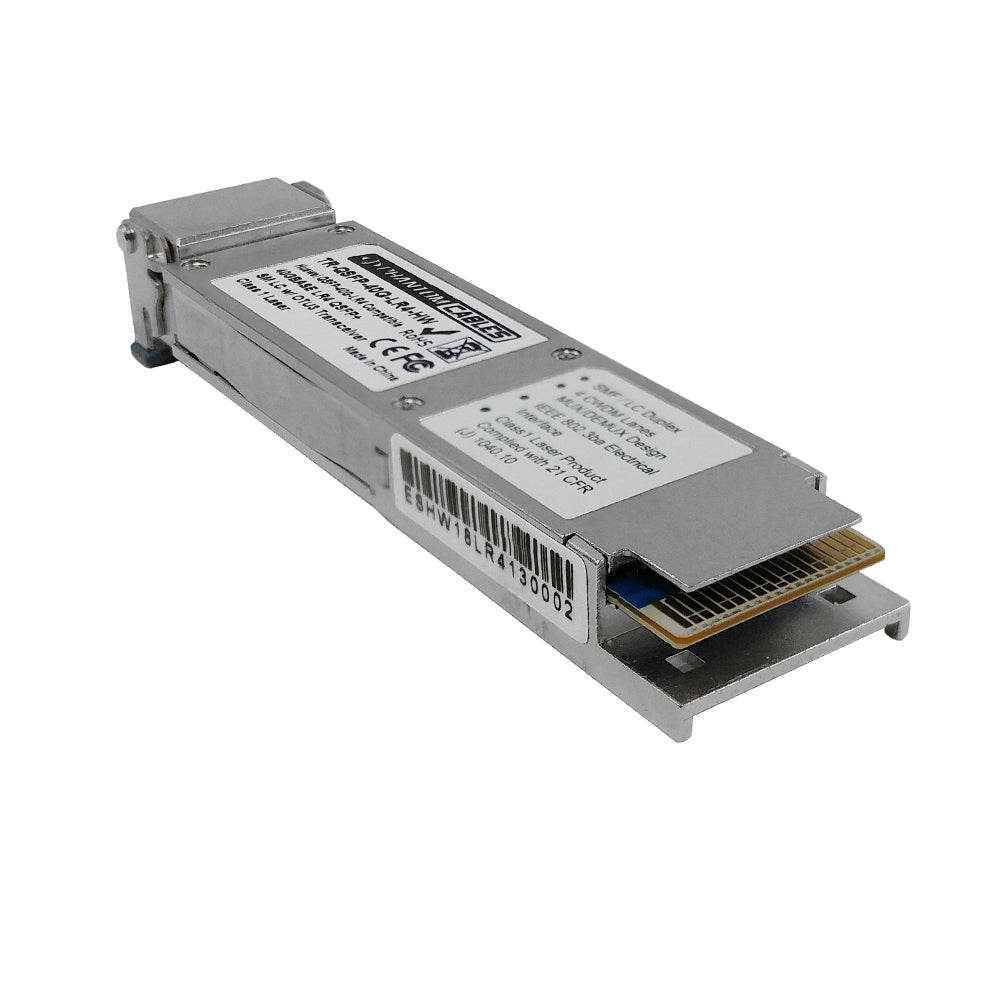

This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 40 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with a QSFP slot. The QSFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Huawei and the Huawei logo are trademarks or registered trademarks of Huawei Technologies Co., Ltd.. This product is not certified or endorsed by Huawei Technologies Co., Ltd..
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -20°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 40GBase-LR4 Singlemode Fiber | |
| Maximum Transmission Distance | 10km | |
| Wave Length | 1270/1290/1310/1330nm | |
| DDM Support | Yes | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Product Weights
| SKU | Weight | |
| TR-QSFP-40G-LR4-HW | 0.08 lb |
