Description

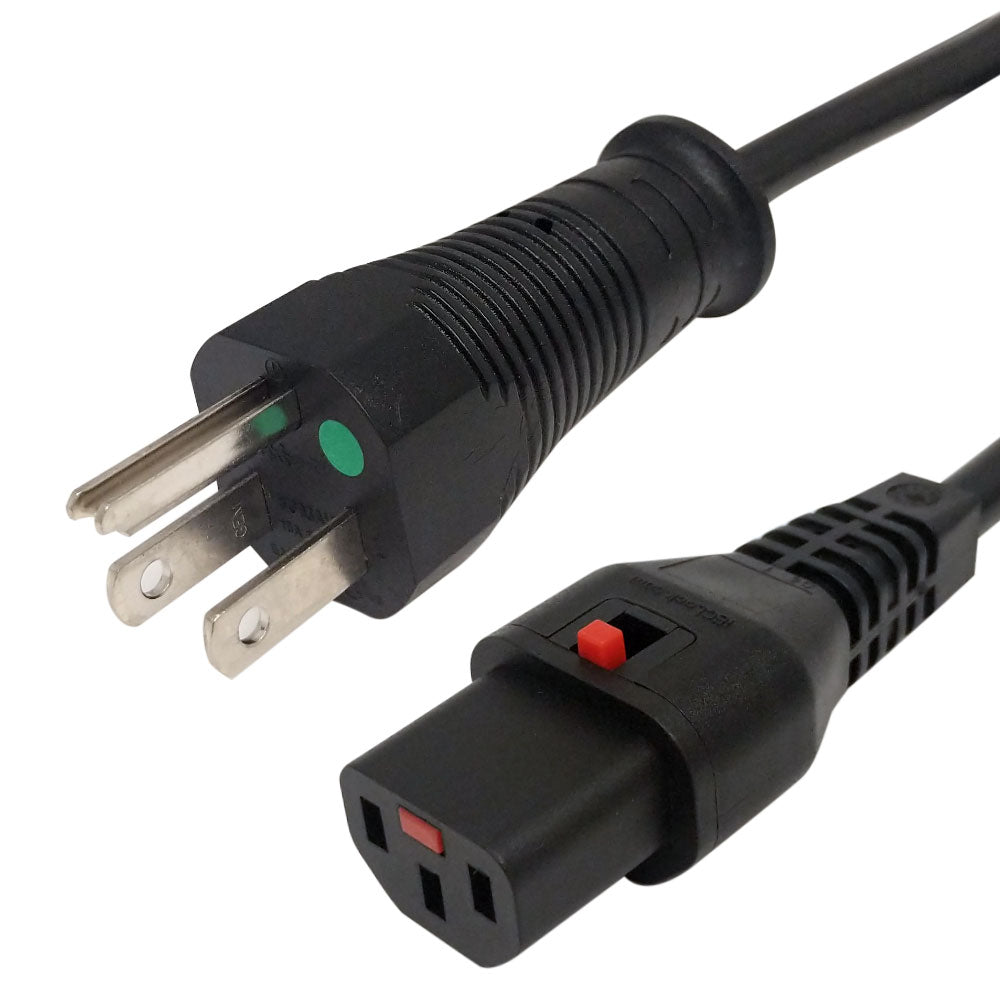

This power cord consists of a 5-15P hospital grade male on one end and a locking C13 female on the other end. It is typically used to connect hospital equipment to a PDU or a wall outlet. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. The unique lockable C13 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 Locking C13 - c(UL)us |
| Connector B | NEMA 5-15P Hospital Grade - c(UL)us |
| Performance | |
| Power Rating | 10 Amp / 125 Volt |
| Approvals | |
| c(UL)us |
Yes |
| CSA | Yes |
| ISO | ISO 9001:2008 |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 6ft | 10ft |
|---|---|
| 0.48 lbs | 0.73 lbs |
Spec Sheets
Video
Product Weights
| SKU | Options | Weight |
| PWL-H105-06 | 6ft | 0.65 lb |
| PWL-H105-10 | 10ft | 1.03 lb |
