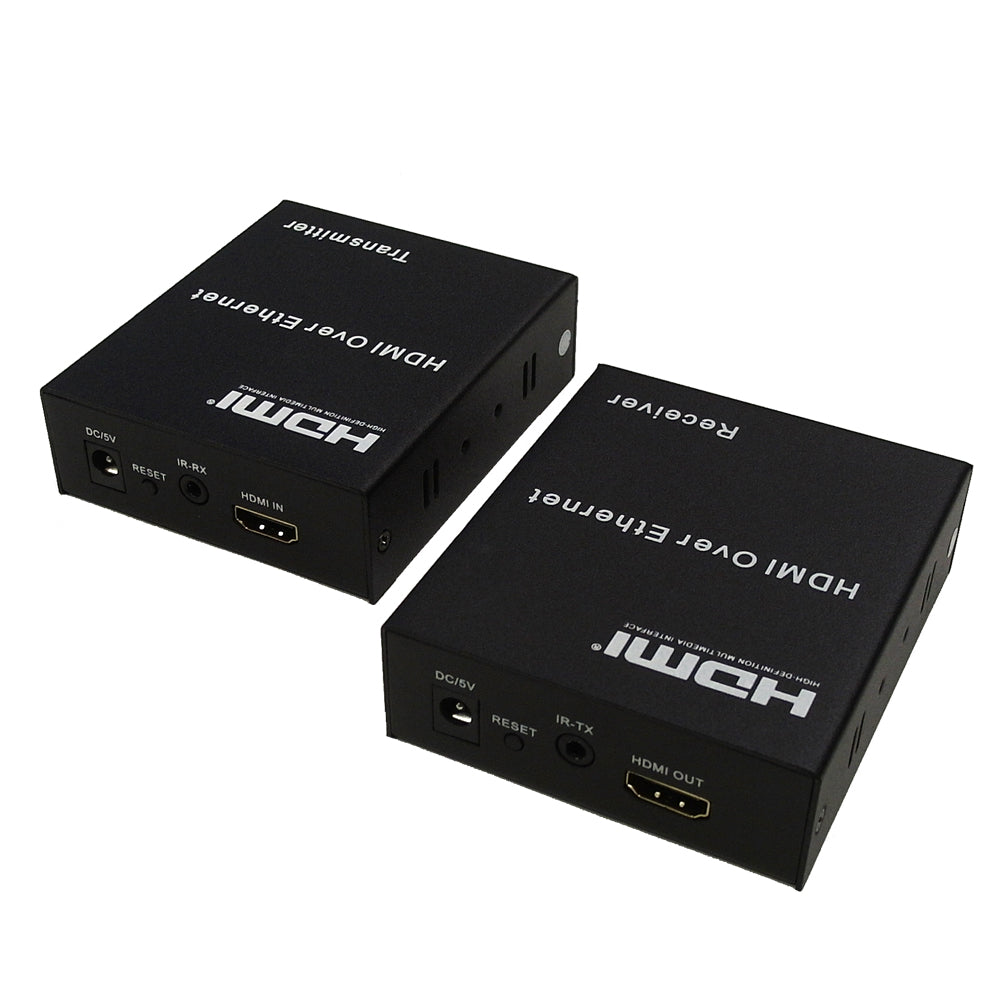

This video extender allows you to extend your 3D or HD display up to 393ft (120 meters) away from your source device over a single Cat5e or Cat6 cable at a resolution of 1080p/60Hz. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices. Receivers can be purchased separately under part number VE-HDMI-007B-R.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0 ~ 70ā |
| Dimensions | 92 x 79 x 20mm |
| Power | |
| Power Adapter | 100V-240V(50-60Hz) Output: 5V/1A |
| Power Consumption | HDMI Sender: 3W HDMI Receiver: 3W |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Transmitter | HDMI Female, RJ45 Female, 3.5mm Female |
| Receiver | HDMI Female, RJ45 Female, 3.5mm Female |
| Performance | |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz |
| IR Frequency Range | 38khZ; NEC |
| Transmission Range | Up to 120m (393ft) |
| Audio | Sample Rate: 32kHz, 44.1kHz, 48kHz |
| HDMI Version | 1.3 |
| HDCP Compliant | Yes, HDCP 1.2 |
| Approvals | |
| Power Adapter | c(ETL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1 lbs [0.5kg] |
| Package Weight | 1.7 lbs [0.8kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |

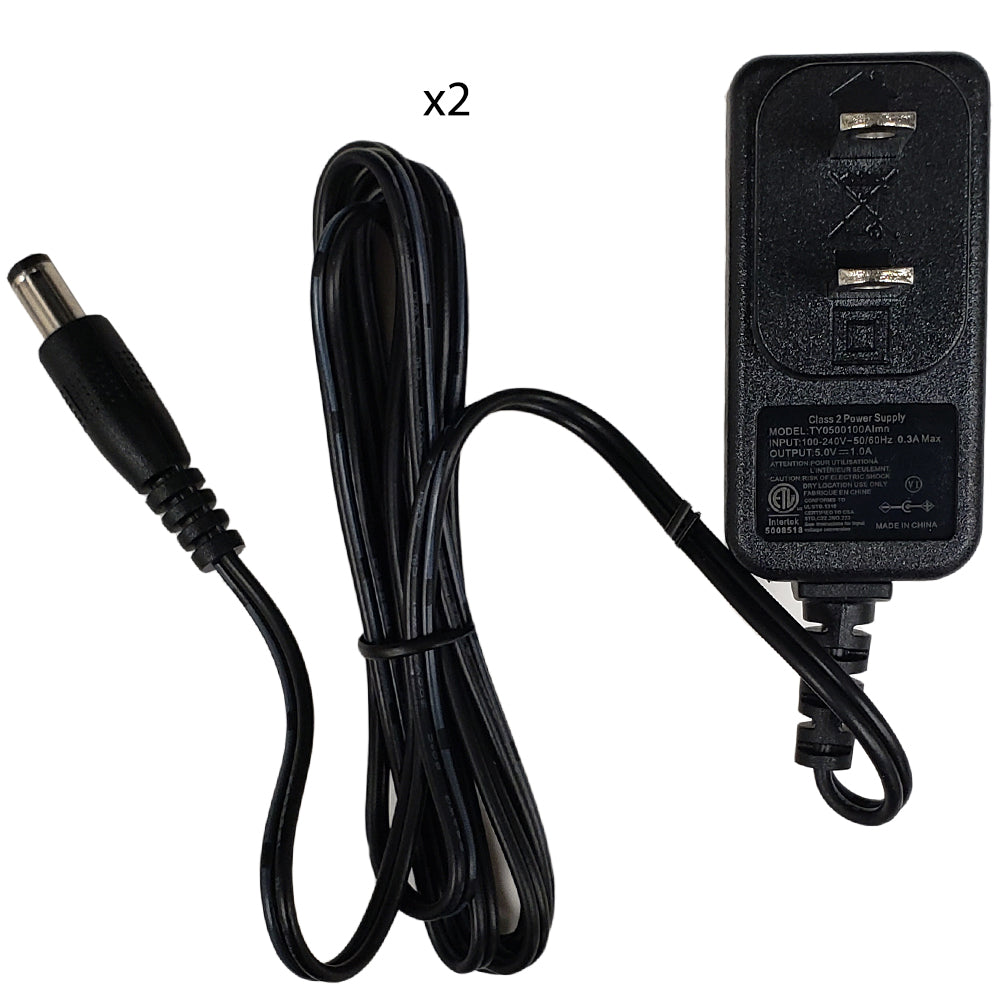

| 2 - DC5V Power Adapter 1 - IR Emitter 1 - IR Receiver |
|
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VE-HDMI-007C | 1.7 lb |
