Overview

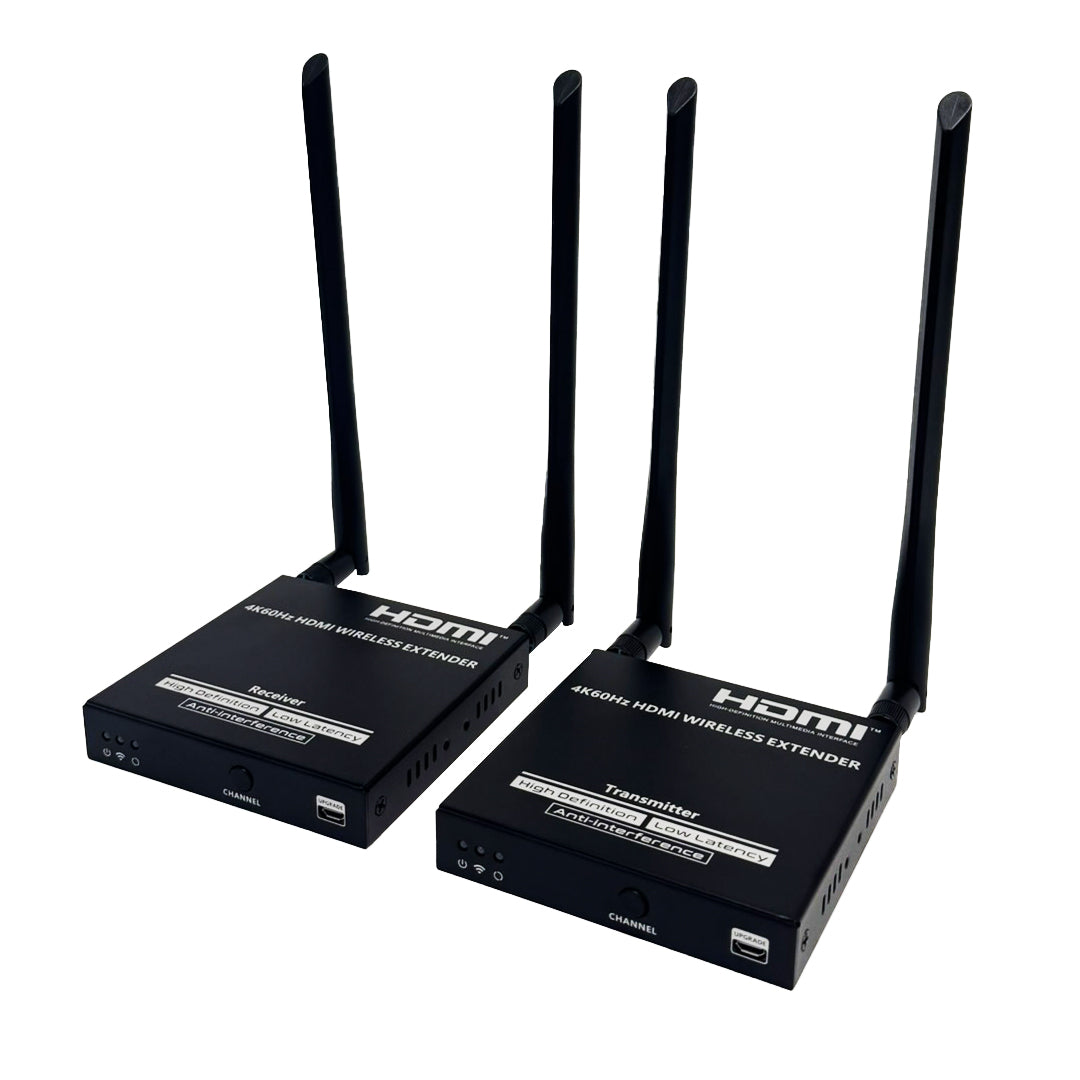

This high-performance wireless HDMI2.0 extender that delivers 4K@60Hz UHD video transmission with ultra-low latency and crisp image quality. Equipped with ipcolor STREAM technology, it ensures reliable, high-definition streaming over the 5G wireless frequency band, offering excellent anti-interference capability and secure signal transmission.
Designed to simplify complex wiring environments, it supportsĀ 1-to-1 wireless transmission up to 50 meters, even through walls. This makes it an ideal solution for a wide range of scenarios including video conferencing, home theater setups, multimedia classrooms, and corporate presentations.
Noteļ¼
- Transmission distances may vary depending on the environment.
- Signals may be reduced or completely lost by solid structures such as walls, bricks, and glass.
-
The surrounding wireless signal may cause certain interference to the transmission, and the channel can be switched to reduce the interference.
Features
- Adopting ipcolor STREAM technology can realize high definition andĀ low-latency transmission
- Support up to 4096x2160@60Hz resolution, backward compatible
- Support wireless transmission up to 50 meters (line of sight)
- The transmitter supports HDMI loop out
- In case of multiple sets of products in the same area, support SSID pairingĀ and channel switching to avoid interference.
- Support IR passback
- Support 5G wireless frequency bands, strong anti-interference
- Support firmware upgrade via Micro USB port
- Supports stable 24/7 operation
Connection
Applications
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -20ā ~ 60ā |
| Storage Temperature | -30ā ~ 70ā |
| Operating Humidity |
0 to 90%RH (No Condensation) |
| Dimensions (L x W x H) | TX: 106 x 103 x 20.6 mm RX: 106 x 103 x 20.6 mm |
| Power | |
| Power Supply | 5V/2A DC Power Adapter |
| Power Consumption | TX ā¤ 5W, RX ā¤ 4W |
| Connector(s) | |

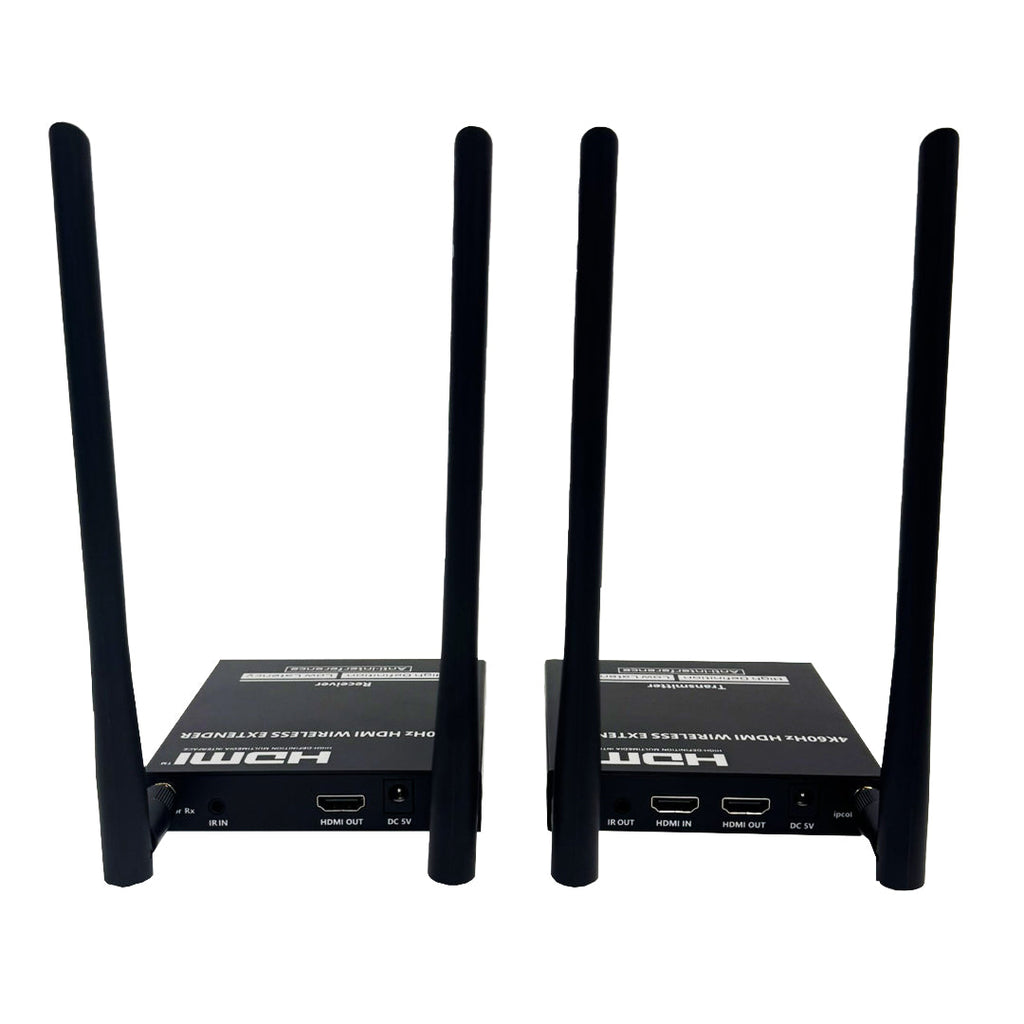

| Transmitter | HDMI Input Female, HDMI Output Female, 4 x RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| HDMI Version | HDMI 2.0 |
| HDCP Version | HDCP 1.4/HDCP 2.2 |
| Input Video Format | 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440 |
| Maximum Transfer Rate |
18Gbps |
| Input and Output TMDS Signal | 0.7~1.2Vp-pļ¼TMDSļ¼ |
| Input and Output DDC Signal |
5Vp-pļ¼TTLļ¼ |
| Wi-Fi Frequency Bands |
5.18~5.24 GHz |
| TransmissionĀ Distance | ā¤ 50m |
| Latency | 4K@60Hz: 130~220ms 1080P@60Hz: 70~120ms |
| Connection Types | One-to-one |
| SSID Pairing | Supported |
| ESD Protection | 1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2 Lightning protection, Surge protection |
| Infrared Frequency | 20~60kHz |
| Receiving Range | ā¤ 5m |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 2.65 lbs |
| Contents | |

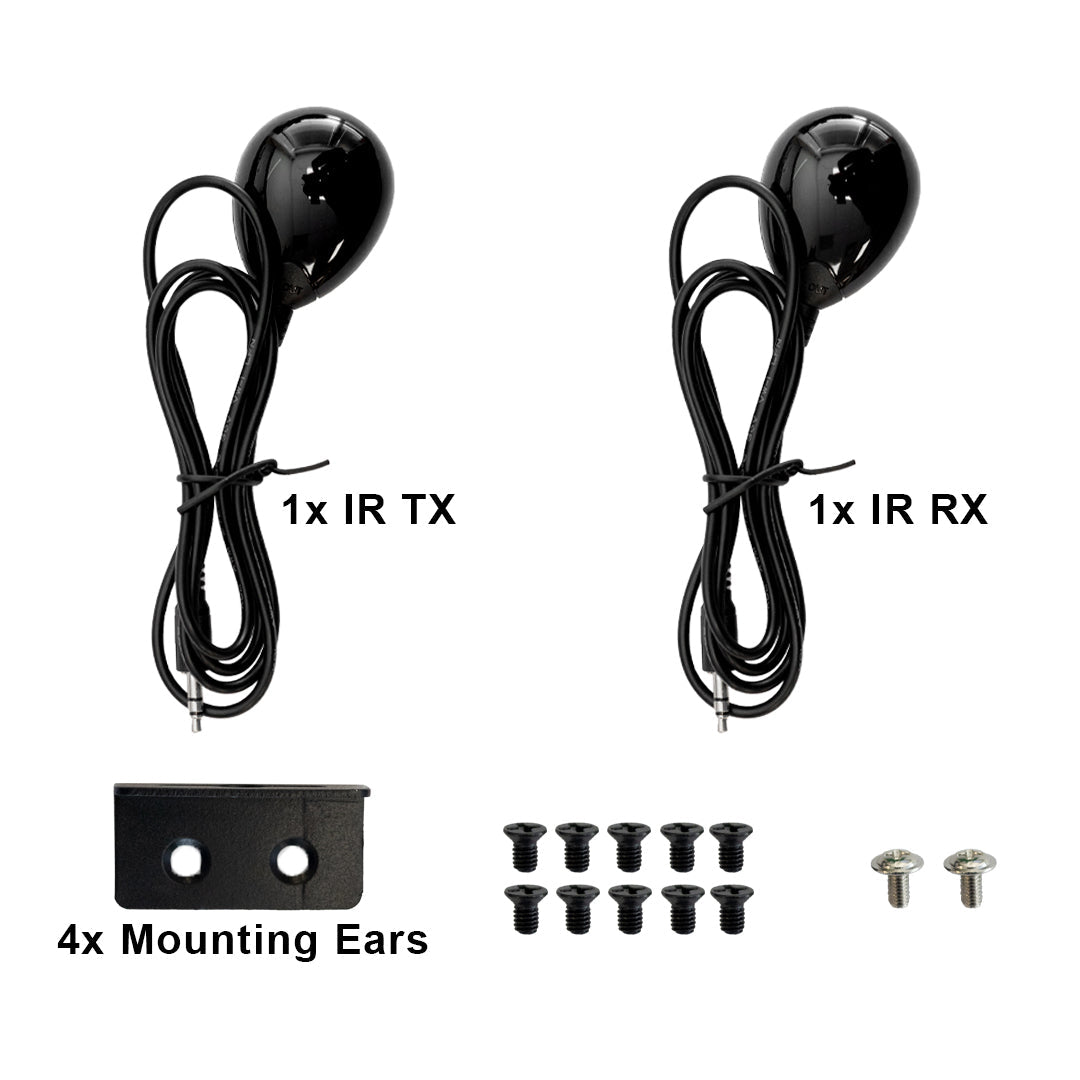

| Included in Package | 1 - Transmitter Unit |
| 1 - Receiver Unit | |
| 1 - IR Receiver Extension Cable | |
| 1 - IR Blaster Extension Cable | |
| 4 - Antenna | |

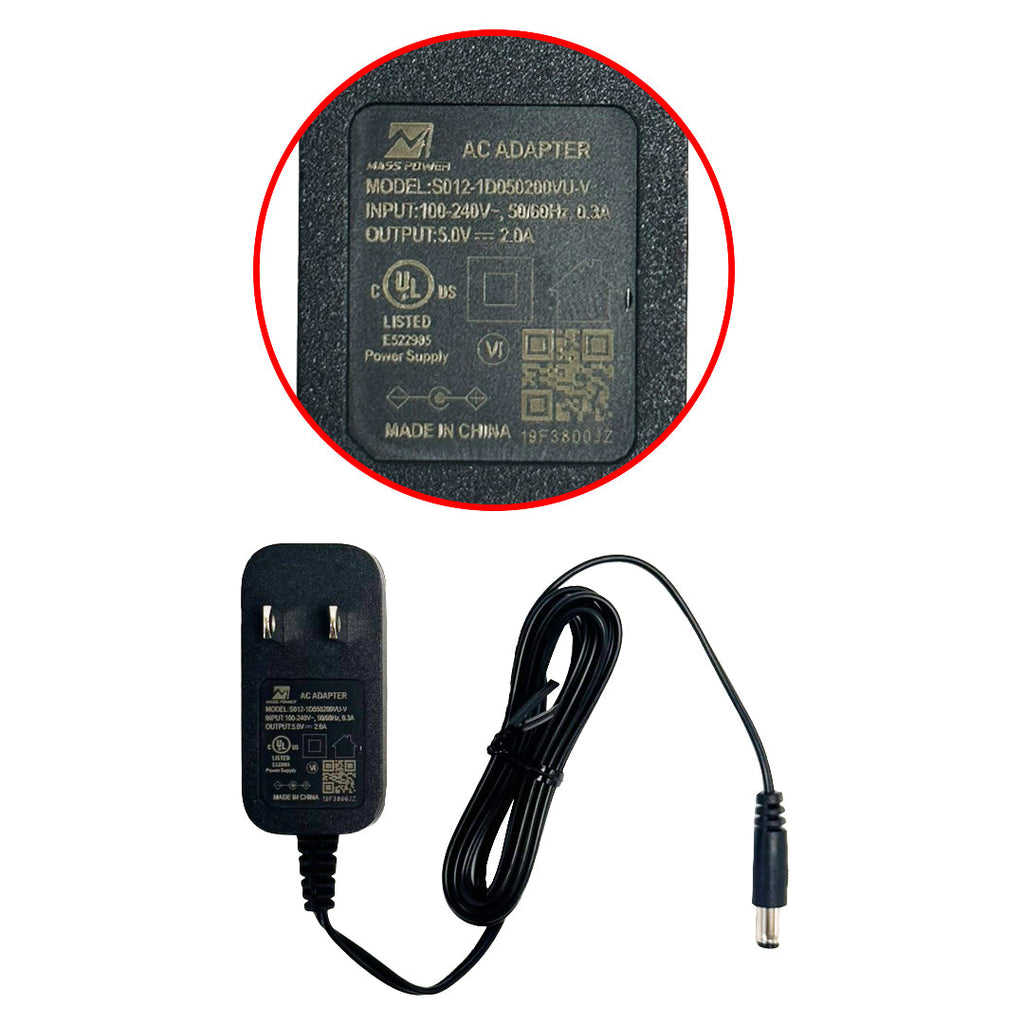

| 2 - DC5V/2A DC Power Adapter | |
| 1 - Manual | |
| 4 - Mounting EarsĀ | |
| 10 - Screw | |
| 2 - Grounding Screw | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VE-HDWL-201 | 2.65 lb |
