- Spec Sheets

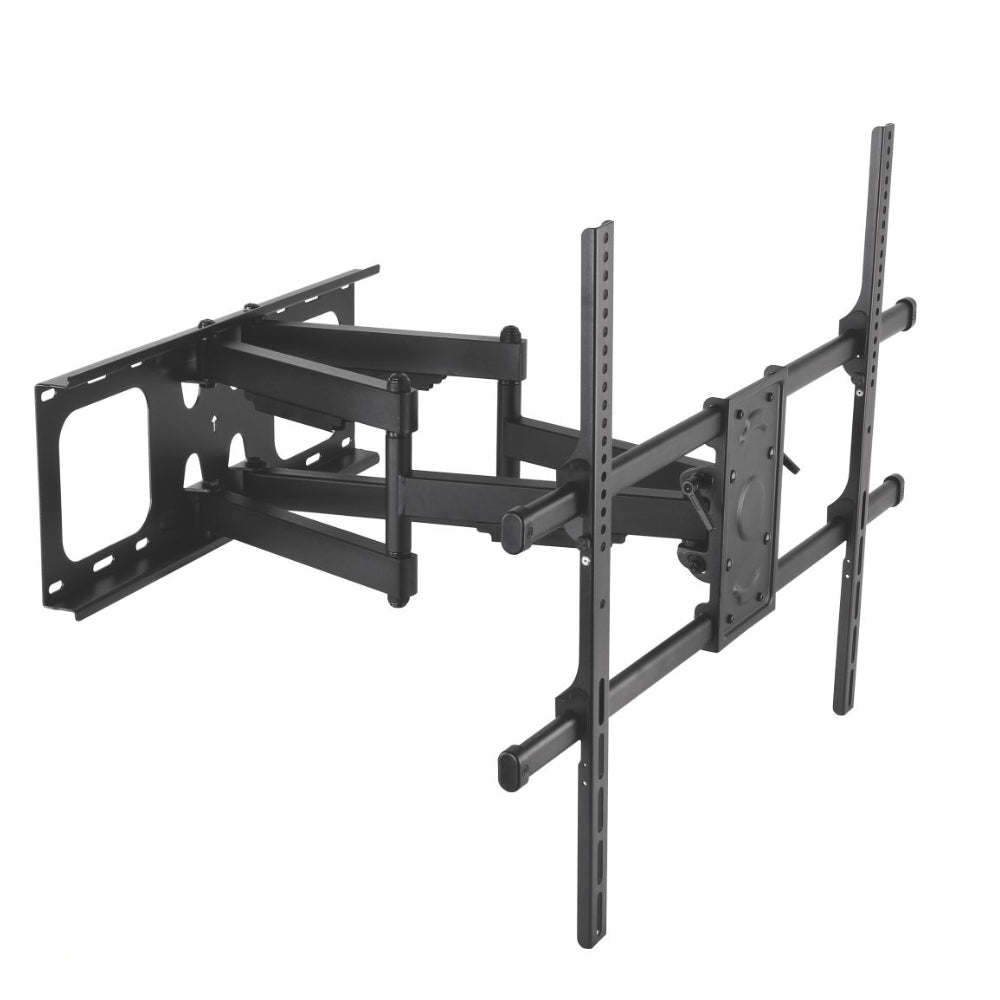

This swivel, tilting pan and extend wall mount bracket is designed to hold most 50 inch to 90 inch flat screen displays with a maximum VESA hole pattern of 600x800. It offers a up to a +5° to -15° tilt and a -60° to +60° swivel. It can be used in both residential and commercial environments.
Full Motion Makes any Seat, the Best Seat
This full motion TV mount bracket has swiveling arms and free-tilting design to give you maximum viewing flexibility and multiple viewing angles. It can be pulled out from the wall (635mm extension) and angled towards a separate viewing area, with a quick lock and release system to keep the TV in place with no tools required.
Save Space and Keep Everything Organized
The heavy-duty steel constructed mount provides a solid hold for even the largest TVs. The mount also features built-in level adjustment to ensures perfect positioning and cable management to keep everything organized.
The Ideal TV Mount for Many Possibilities
This TV mount offers a wide VESA spacing to accommodate larger TVs from 50 inch and up to 90 inch flat and curved displays. It can also be used on wood, masonry or concrete construction.

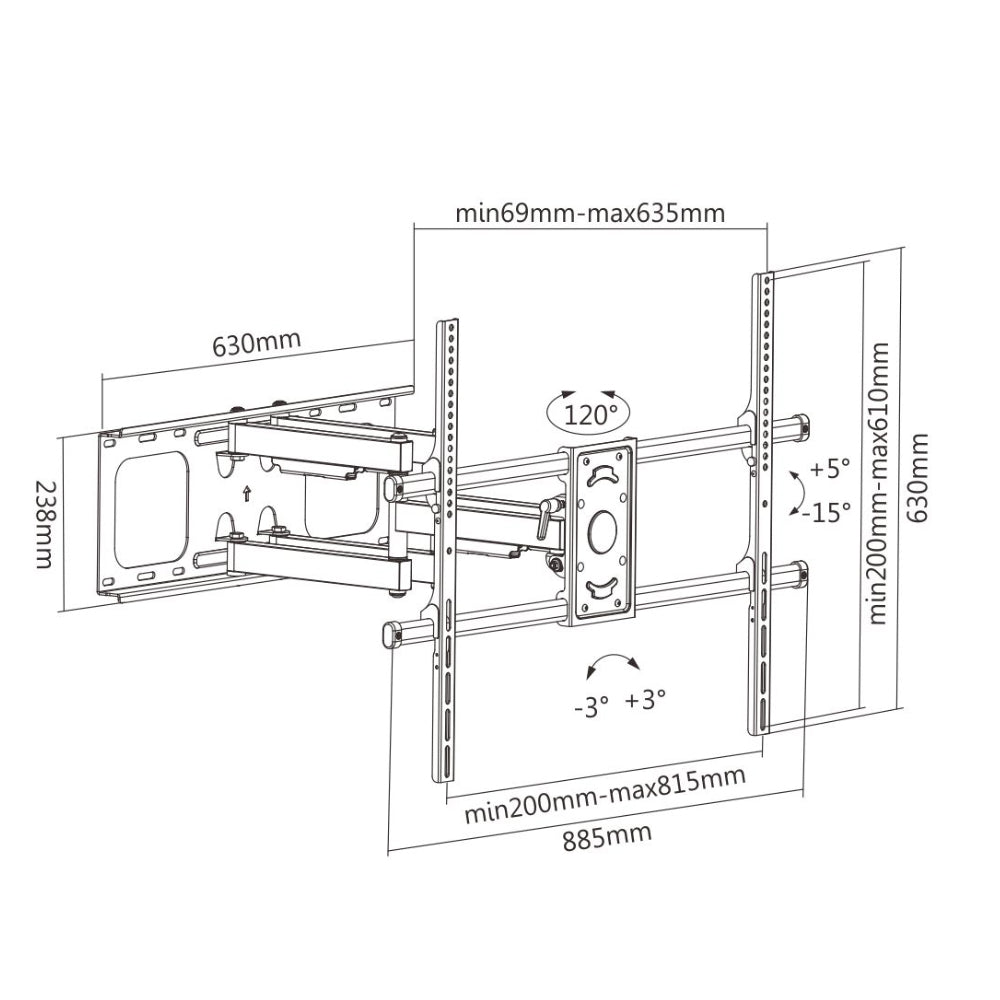

|Mounting Style||Tilting & Swivel Wall Mount|
|Mounting Pattern||VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,800x600|
|Screen Size||50 - 90 inches [127 - 228cm]|
|Weight Capacity||165 lbs [75kg]|
|Tilt||-15° ~ +10°|
|Swivel||-60° ~ +60°|
|Profile||2.7 - 25 inches [69 - 635mm]
|Level Adjustment||-3° ~ +3°|
|Screen Freely Tilting
|Wall Plate Type
||Fixed Wall Plate
||Hook-on Bubble Level(Included in Components Package)
|Installation||Double Stud(406mm/450mm/600mm) or Solid Wall
|Mounting Hardware||4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
6 - ST6.3x55 Screws
6 - Concrete Anchors
4 - D6 Washers
|Product Weight||26.05lbs [11.8kg]|
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
