- Spec Sheets

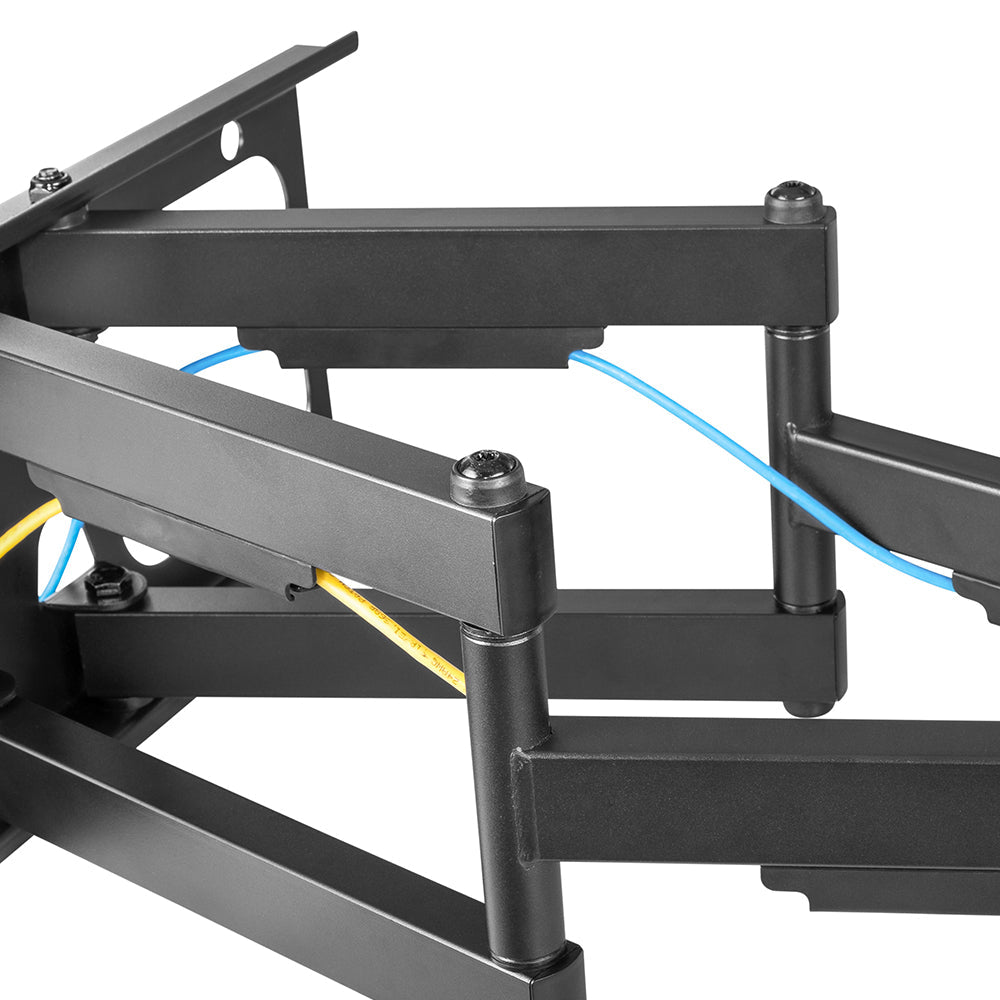

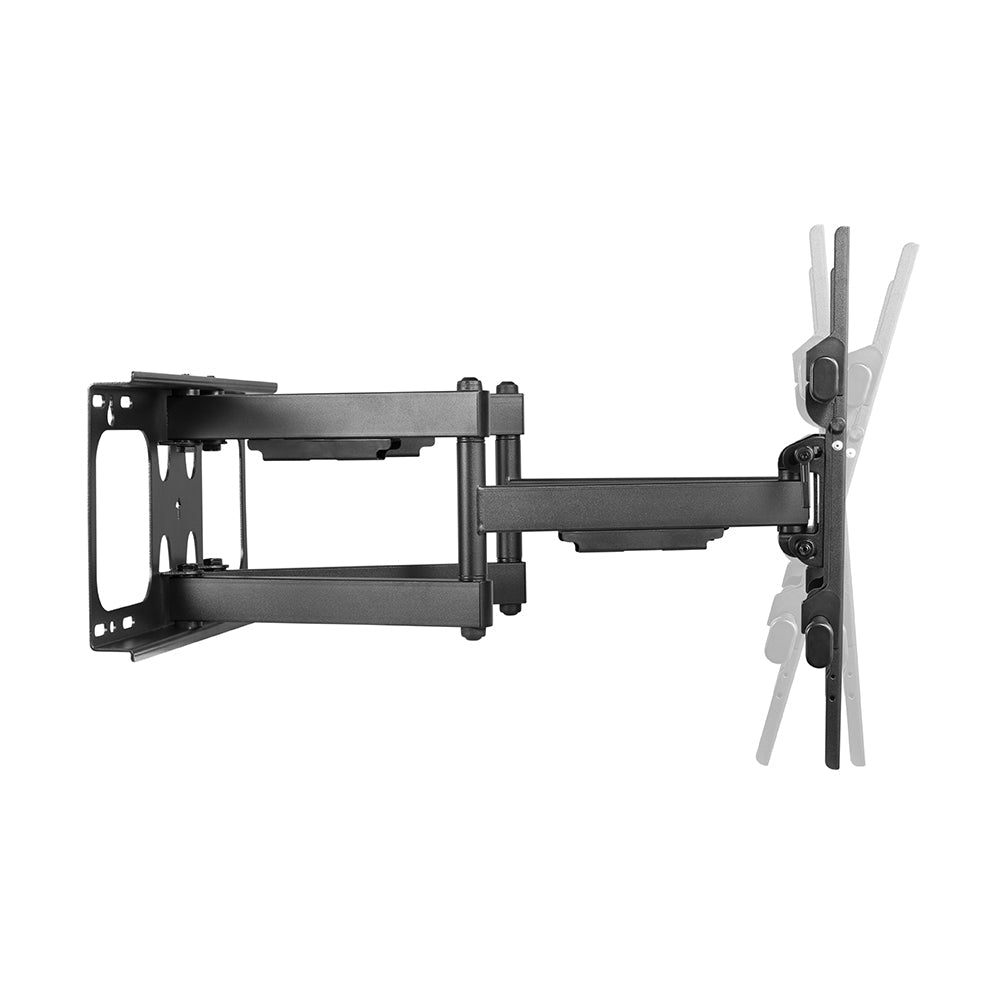

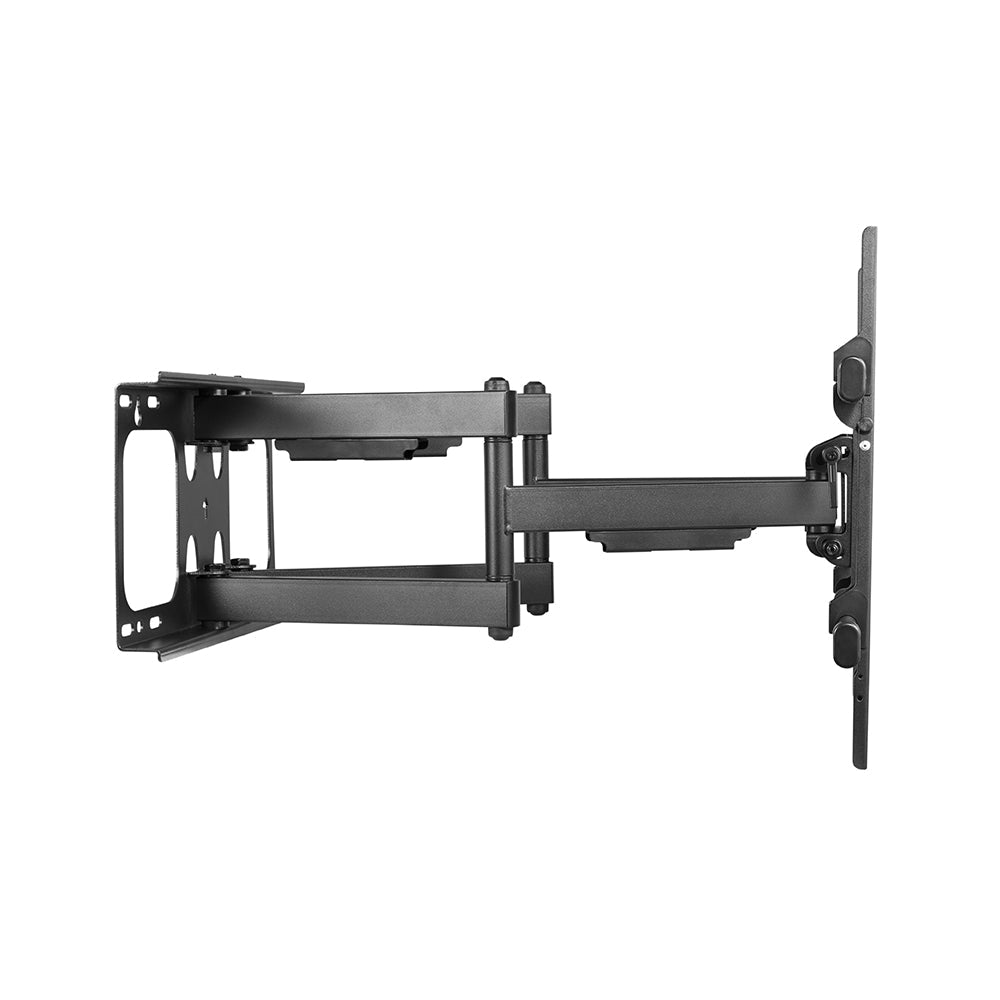

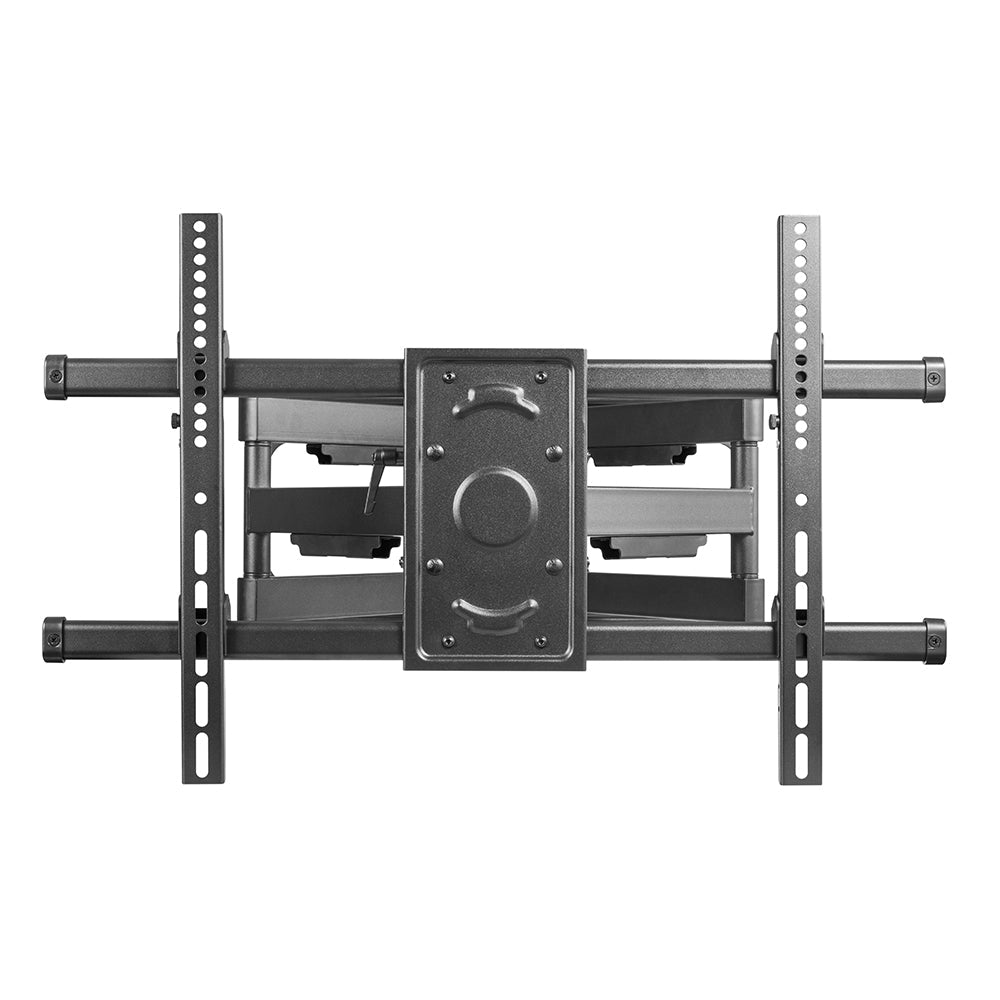

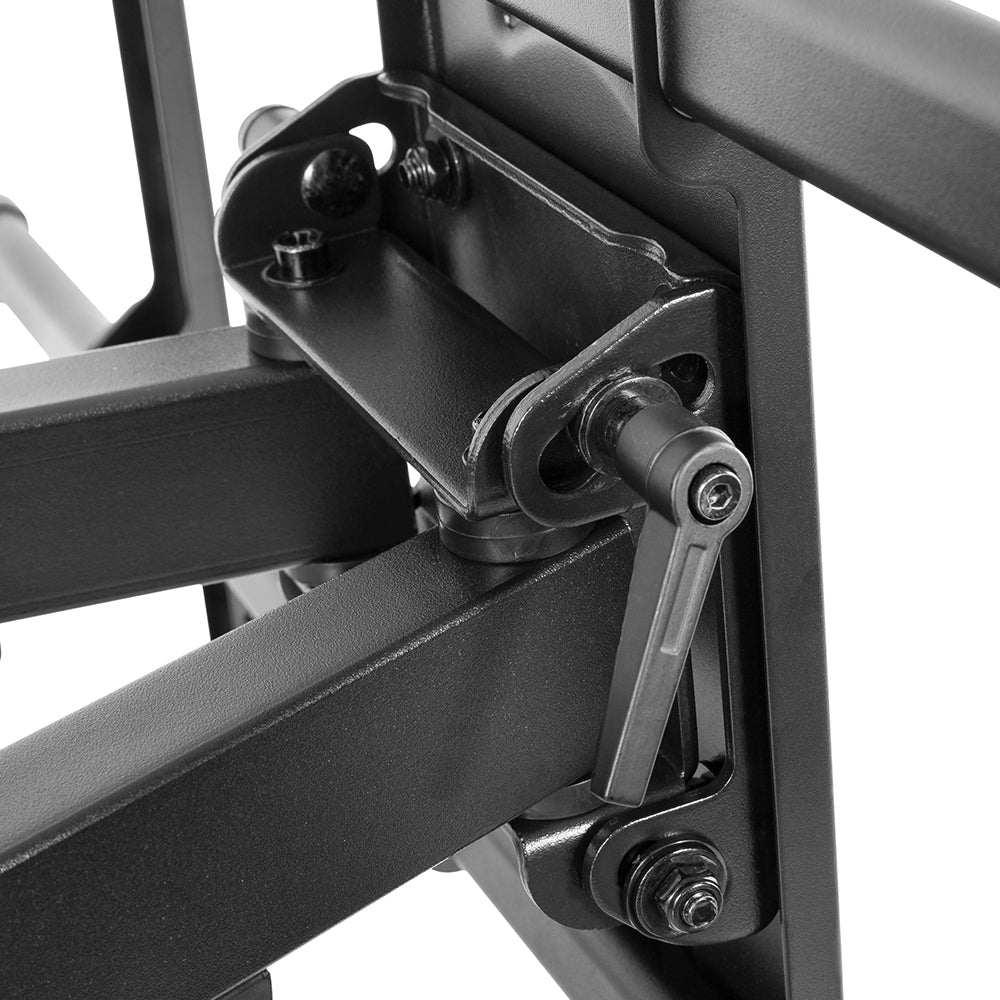

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 37 inch to 90 inch LCD/LED displays with a maximum VESA hole pattern of 600x400. It offers up to a 5° to -15° tilt, 60° to -60° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
|Mounting Style||Tilting & Swivel Wall Mount|
|Mounting Pattern||VESA 200x200, 300x300, 400x200, 400x400, 600x400|
|Screen Size||37 - 90 inches [93.9 - 228.6cm]|
|Weight Capacity||143 lbs [65kg]|
|Tilt||+5° ~ -15°|
|Swivel||+60° ~ -60°|
|Level Adjustment||+3° ~ -3°|

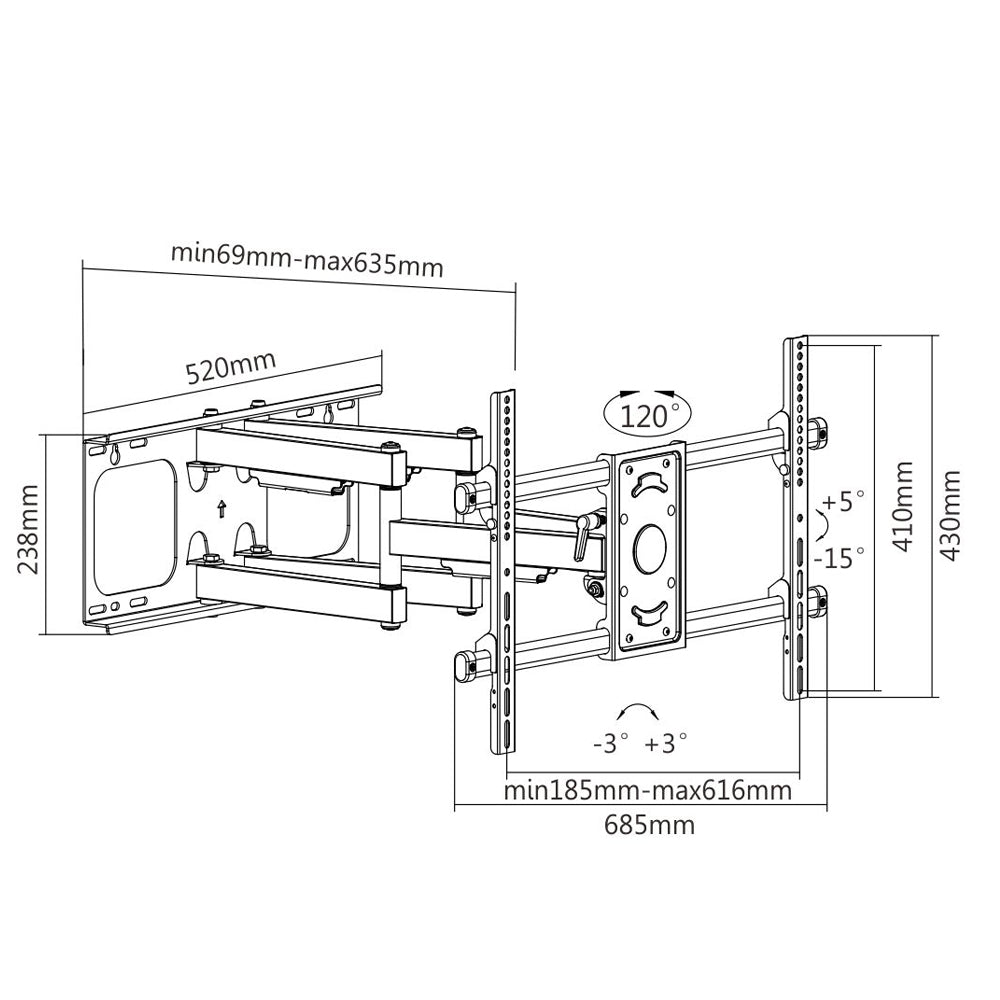

|Profile||69 to 635mm [2.7 - 25 inches]|
|Curved TV Available||Yes|
|Installation||Solid Wall or Double Stud|
|Mounting Hardware||4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
6 - ST6.3x55 Screws
6 - Concrete Anchors
4 - D6 Washers
|Package Weight||23.3 lbs [10.6kg]|
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
