- Spec Sheets

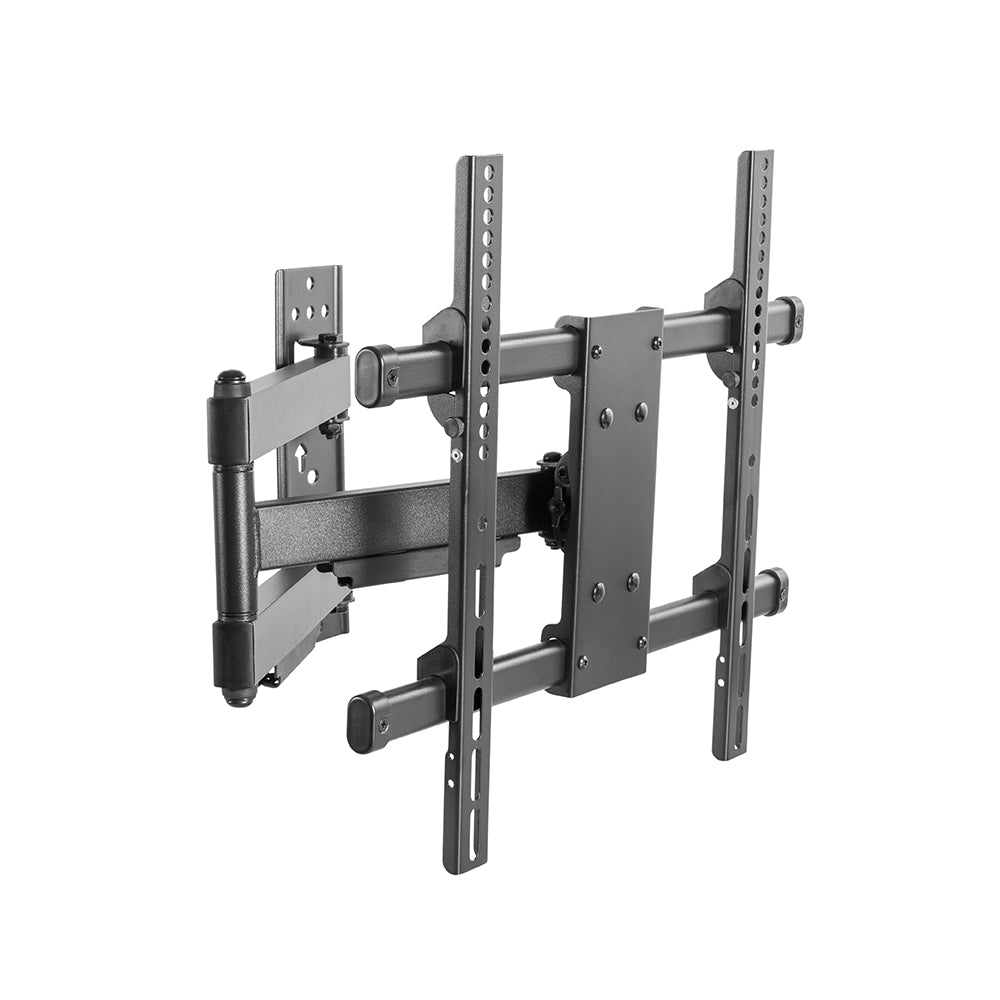

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 32 inch to 55 inch LCD/LED displays with a maximum VESA hole pattern of 400x400. It offers up to a 5° to -15° tilt, 90° to -90° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
|Mounting Style||Tilting & Swivel Wall Mount|
|Mounting Pattern||VESA 200x200, 400x200, 300x300, 400x400|
|Screen Size||32 - 55 inches [81.2 - 139.7cm]
|Weight Capacity||110 lbs [50kg]|

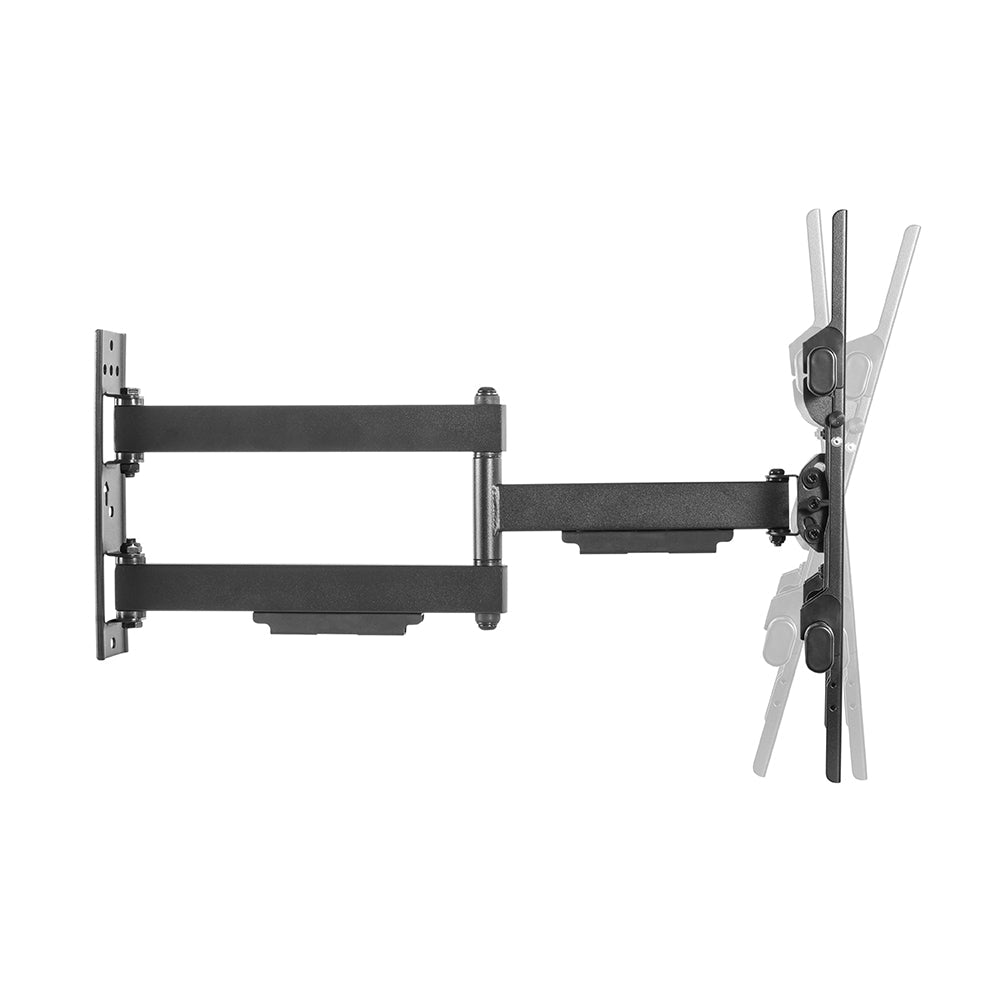

|Tilt||+5° ~ -15°|
|Swivel||+90° ~ -90°
||+3° ~ -3°

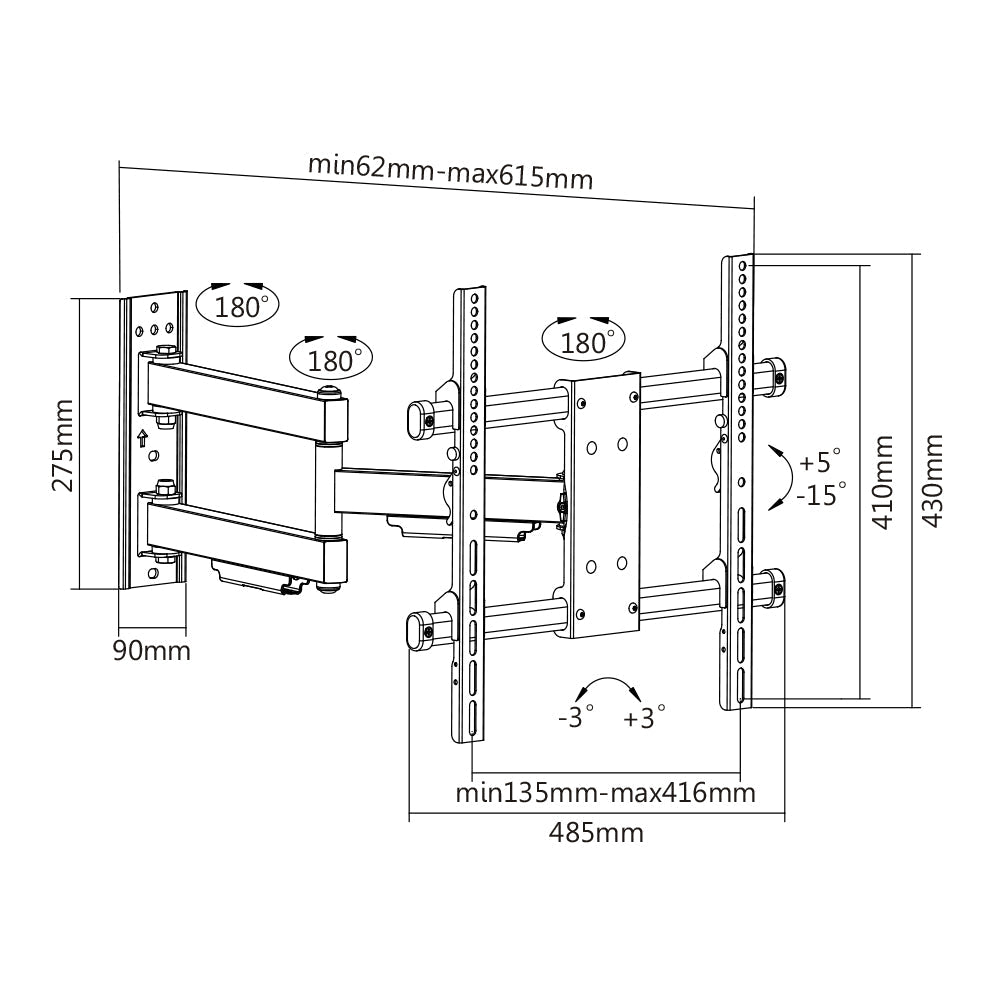

|Profile||62 to 615mm [2.4 - 24.2 inches]
|Curved TV Available
|Installation||Solid Wall or Single Stud|
|Mounting Hardware||4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
4 - ST6.3x55 Screws
4 - Concrete Anchors
4 - D6 Washers
|Product Weight||11.5 lbs [5.2kg]
