This cladding alignment fusion splicer allows simultaneous preparation and loading of two fibers. The advanced fiber coating stripper and cleaver adapter streamline the process. Patented sheath clamps enable one-handed operation, linked to the wind protector for quick sleeve transfer. A faster tube heater reduces splicing cycle time by over 30%, enhancing overall productivity.
Features
- Simultaneous fiber preparation with newly patented sheath clamp design
- Sheath clamps automatically opened with the wind protector
- Automatic fiber placement correction
- Active Fusion Control for arc optimization with every splice
- Active Blade Management for cleave quality monitoring and correction
- Easy-access battery, screen position adjustments, and ergonomic adaptations
- Fully ruggedized for shock, moisture and dust resistance
Applications
- 5G Small Cell Site
- FTTx drops and terminations
- MDF/IDF splices and terminations
- Rural fiber deployments and restorations
Specifications
| Physical Characteristics | |
|---|---|
| Fiber Count | Single fiber |
| Fibre Alignment Method | Active cladding alignment |
| Cladding Diameter | 125 µm |
| Cleave Length | 5 to 16 mm with Sheath Clamp 10 mm with fiber holders |
| Cleave Angle Capability | Single Fiber: 0.3 ~ 0.9° Fiber Ribbon: 0.3 ~ 1.2° |
| Splice Loss | ITU-T G.652: Avg. 0.03dB ITU-T G.651: Avg. 0.01dB ITU-T G.653: Avg. 0.05dB ITU-T G.655: Avg. 0.05dB ITU-T G.657: Avg. 0.03dB |
| Splicing Time | SM FAST mode: Avg. 6 to 8 sec. SM AUTO mode: Avg. 8 to 11 sec. |
| Sleeve Type | Heat shrinkable sleeve |
| Sleeve Length | Max. 66 mm |
| Sleeve Diameter | Max. 6.0 mm before shrinking |
| Sleeve Heat Time | 60 mm mode: Avg. 21 to 23 sec. 60 mm slim mode: Avg. 16 to 18 sec. |
| Fiber Tensile Test Force | 2.0 N |
| Electrode Life | Approx. 6,000 splices |
| Dimensions (W x D x H) | 131 mm x 123 mm x 121 mm |
| Temperature |
Operate: -10 to 50°C Storage: -40 to 80°C |
| Humidity |
Operate: 0 to 95%RH non-condensing Storage: 0 to 95%RH non-condensing |
| Altitude |
Max. 5,000 m |
| Display |
LCD TFT 4.95 inches with touch screen monitor |
| Display Magnification |
Approx. 132 to 300X |
| Illumination |
V-grooves: LED lamp |

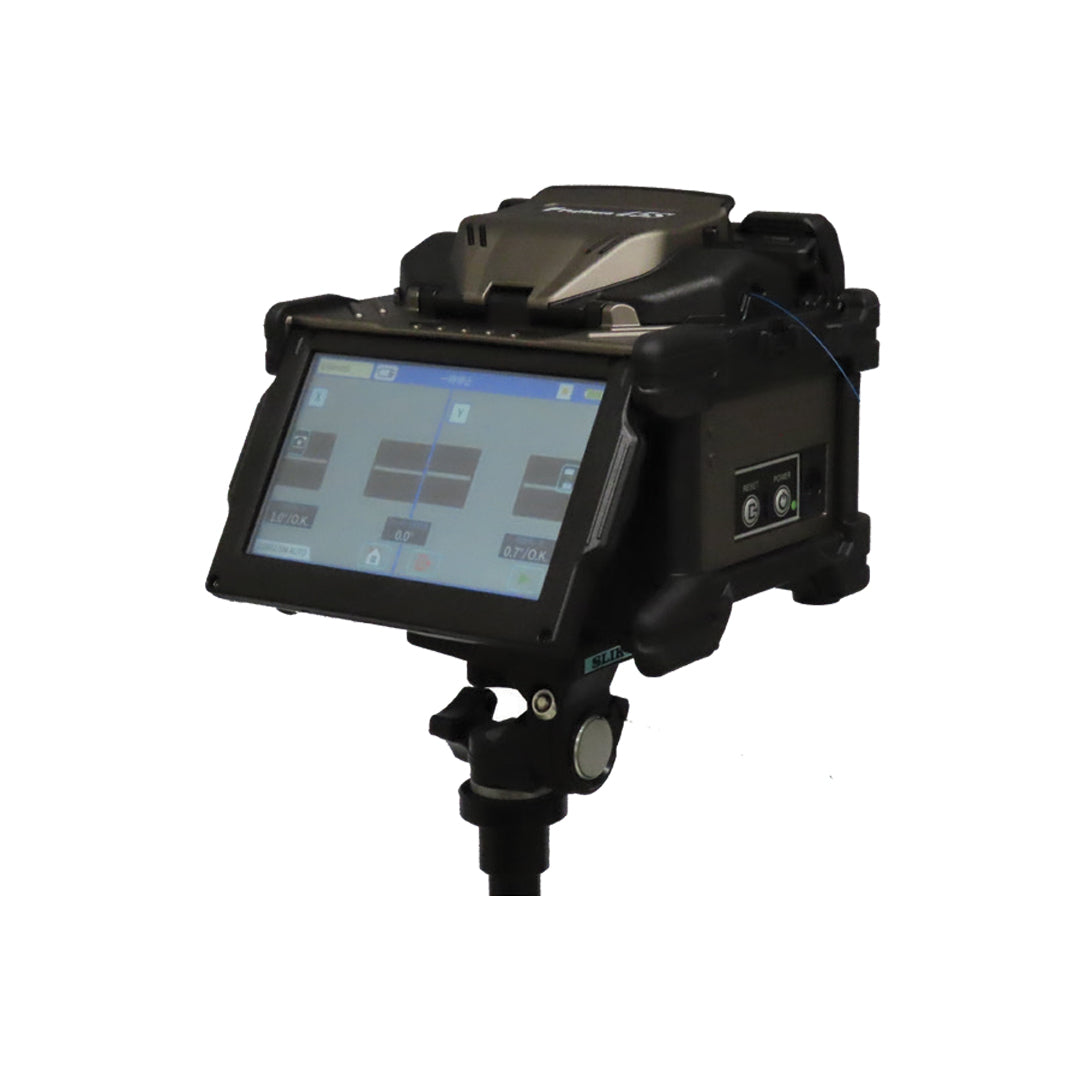

| Screw Hole for Tripod |
1/4-20UNC |
| Interface | |
| PC | USB2.0 MINI B type |
| External LED lamp |
USB 2.0 A type, Approx. DC5V, 500mA |
| Wireless |
Bluetooth® 5.2 |
| Data Storage | |
| Splice Mode | 100 splice modes |
| Heat Mode |
30 heat modes |
| Splice Result |
20,000 splices |
| Fiber image |
100 images |
| Power | |
| AC Adaptor | Input: AC100 to 240V, 50/60Hz, Max. 1A Output: Approx. DC 19V, Max. 2.1A |
| Battery Pack Type | Rechargeable Lithium Ion |
| Battery Pack Output | Approx. DC14.4V / 3,190mAh |
| Battery Pack Capacity | 60 mm heat mode: Approx. 200 splice & heat cycles 60 mm slim heat mode: Approx. 230 splice & heat cycles |
| Battery Pack Temperature | Operate: -10 to 50°C Recharge : 0 to 40°C Short term storage of 30 days: -20 to 50°C Long term storage: -20 to 30°C |
| Battery Pack Lifespan | Approx. 500 recharge cycles |
| Other Features | |
| Automatic Functions | Fusion control Blade management and control Splice start Heater start |
| Reference Guide | PDF file stored on splicer |
| Sheath Clamp | Open with/without wind protector Close when setting fiber |
| Electrode | Tool-less replacement |
| PC Software | Splicer firmware update via internet Parameter Upload and download |
| Manufacturing Information | |
| AFL Part Number | 45S |
| Packaging Information | |

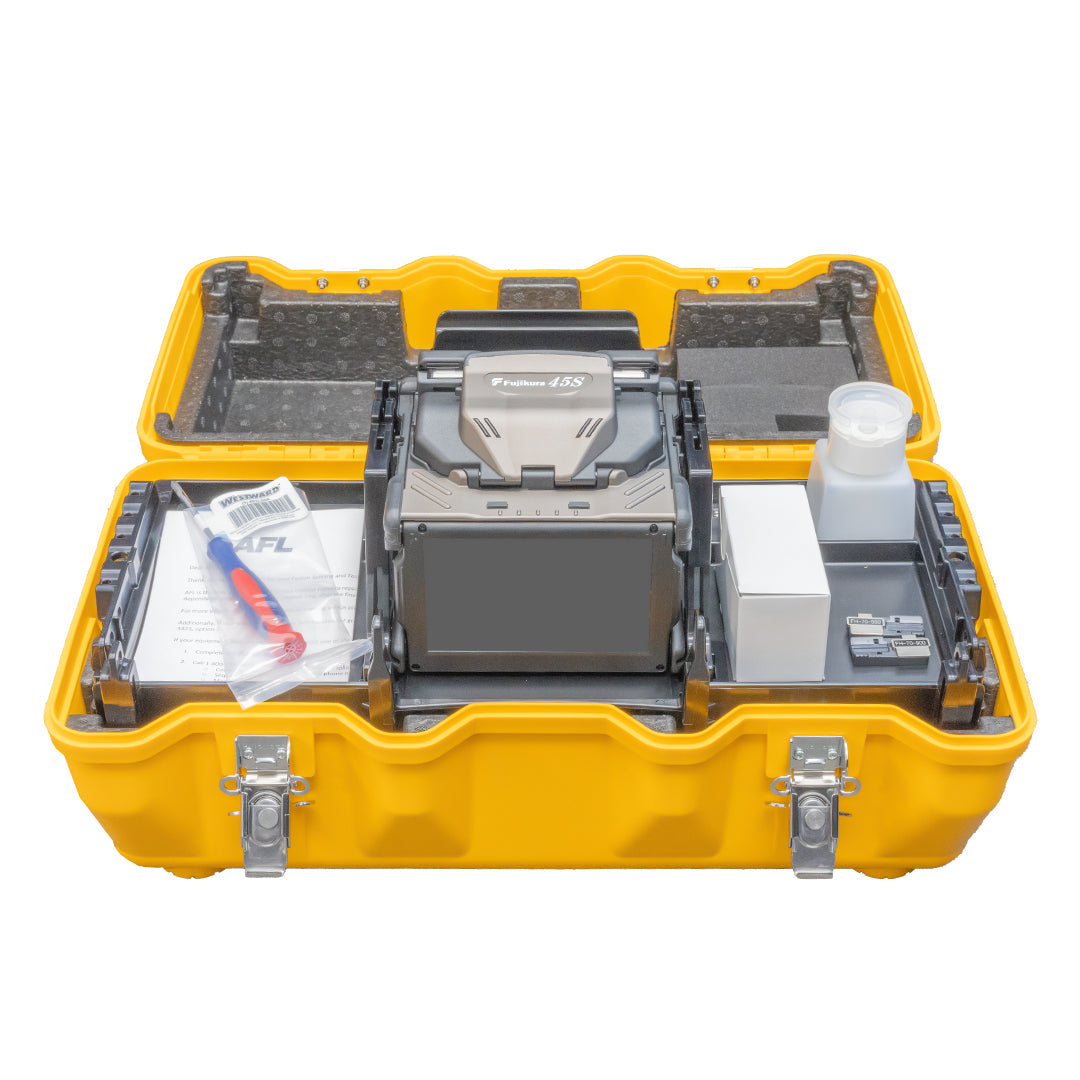

| Packaging Content |
1 - CT-50 cleaver |
| Product Weight | 3.08 lbs [1.4 kg] |
| Warranty | 1-Year Warranty |
| SKU | Weight | |
| TL-45S | 3.08 lb |
