Description
Overview

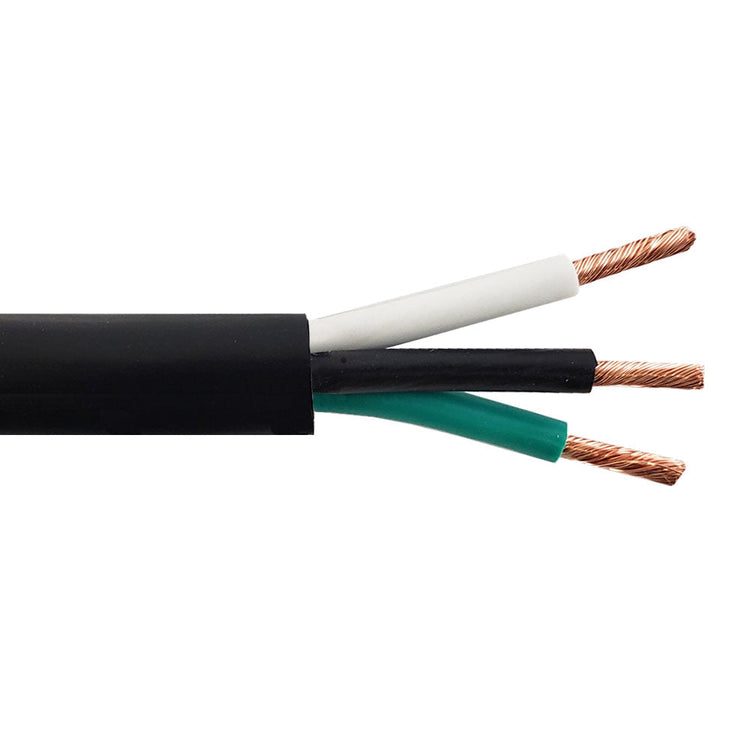

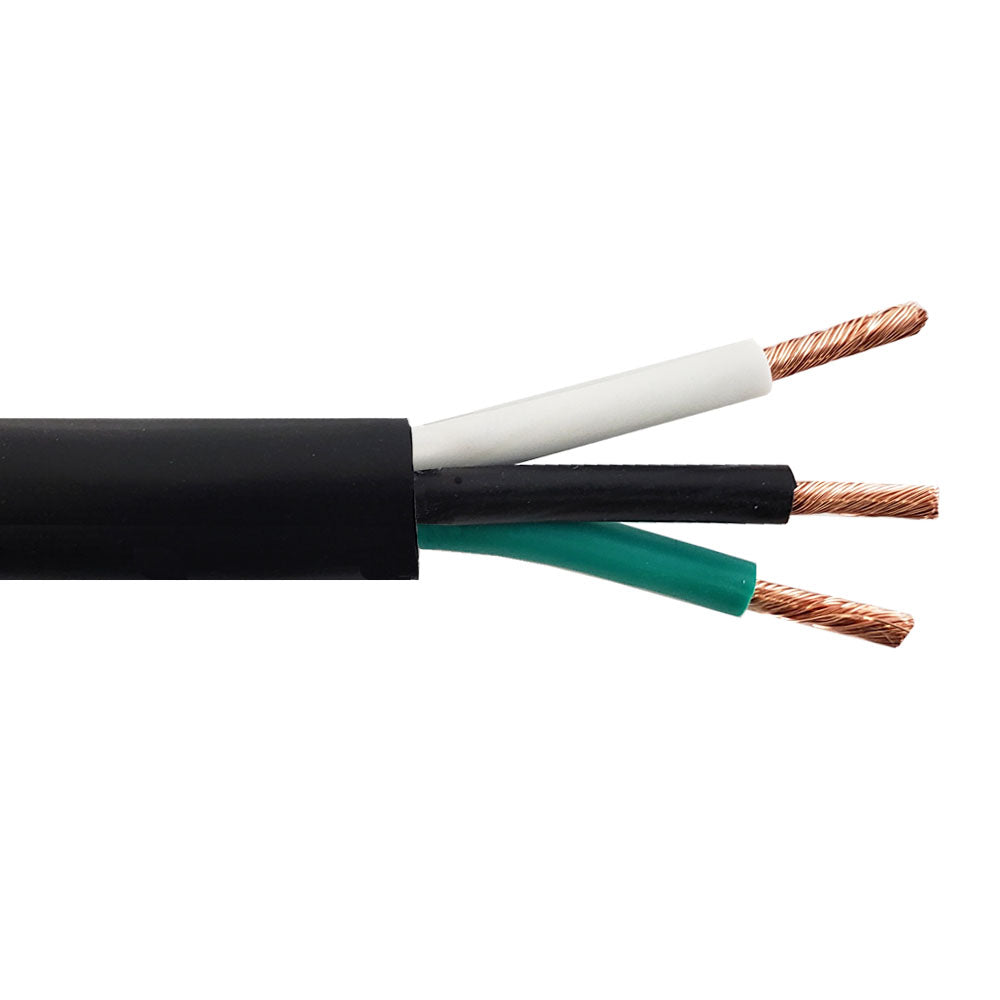

This bulk power cable consists of three 12 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.
Note: We offer a maximum of 100m spool size.
 |
Bare Copper ConductorsThis cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The Quality and Convenience You NeedThis cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | Black, White, Green |
| Wire Gauge | 12AWG |
| Construction | 65/ɸ0.254±0.008 |
| Number of Conductors | 3 |
| Conductor Material | Bare Copper |
| Conductor Diameter | 2.36 |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Diameter | 4.0 ± 0.10 |
| Insulation Thickness | 0.82 |
| Jacket | SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Jacket Overall Diameter | 11 ± 0.15 |
| Minimum Average Thickness | 1.20mm |
| Cable Diameter | 8.60 S=80±5mm |
| Extrusion : Extrude | tmax >= 0.87mm tmin >= 0.77mm |
| Extrusion : Talcum Powder Extrude |
tmax <= 1.30mm tmin >= 1.14mm |
| Temperature Rating | 105℃ |
| Performance | |
| Rating Voltage | 300V |
| Conductor Resistance | 6.07ohm/Km at 20℃ Max |
| Unaged Tensile Strength (Mpa) | Insulation :>=10.29 Jacket :>=10.29 |
| After Aging Tensile Strength (Mpa) |
Insulation :>=7.2 Jacket :>=7.2 |
| Unaged Elongation Rate (%) | Insulation :>=100 Jacket :>=100 |
| After Aging Elongation Rate 10d 100℃ |
Insulation :min65 Jacket :min65 |
| Cold Bend Test | -20±2℃ x 4hr No Crack |
| Heat Shock Test | 121±1℃ x 1hr No Crack |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
| Max. Spool Size | 100m |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-PWC3C12-SJT | 1.42 lb |
