Overview

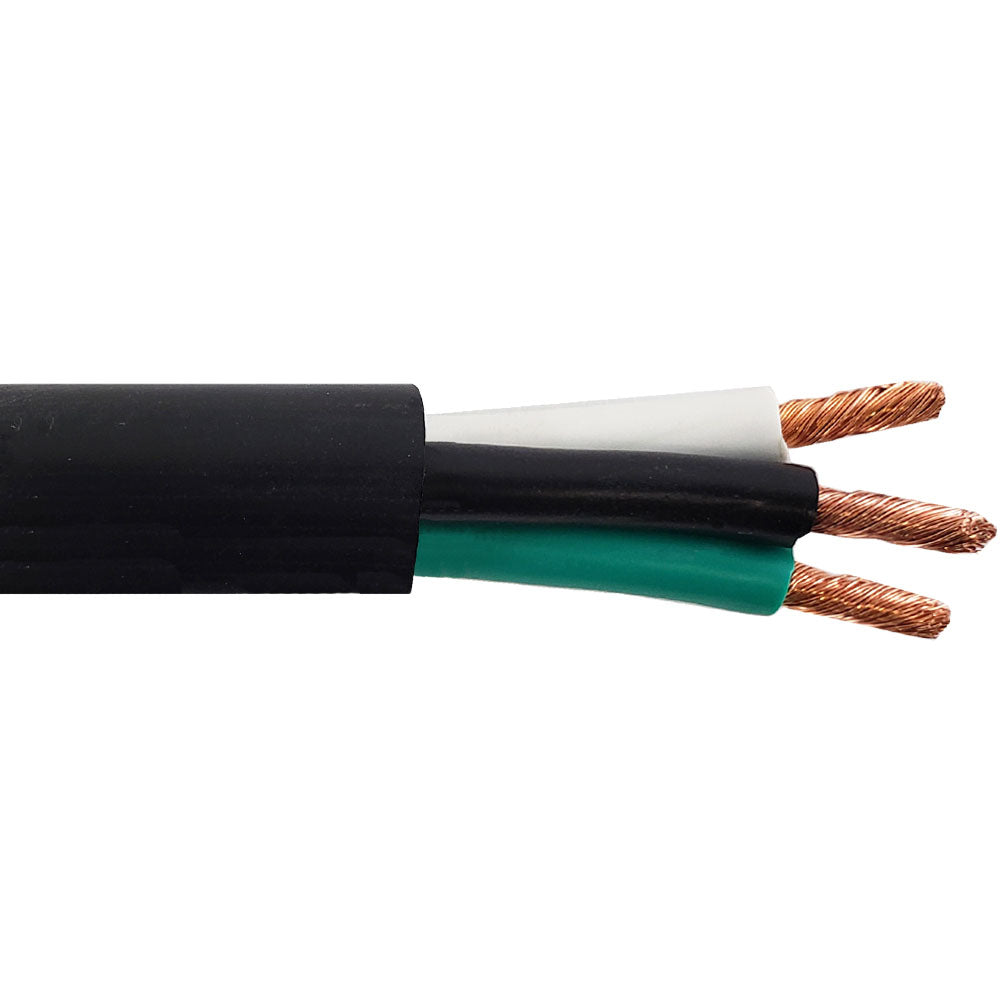

This bulk power cable consists of three 10 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.
 |
Annealed Bare Copper Conductors
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | Black, White, Green |
| Wire Gauge | 10AWG |
| Construction | 105/ɸ0.254±0.005 |
| Number of Conductors | 3 |
| Conductor Material | Annealed Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Diameter | 5.4 ± 0.10 |
| Jacket | SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 |
| Jacket Overall Diameter | 14.6 ± 0.2 |
| Minimum Average Thickness | 1.52mm |
| Core Assembly Twist | 3-Core |
| Core Assembly Filler | Cotton 20000D |
| Temperature Rating | 105℃ |
| Performance | |
| Rating Voltage | 300V |
| Insulation Resistance | ≥ 0.76MΩ/Km 15.0℃ Min |
| Dielectric Strength | AC 2.0KV/1 min No Crack |
| Spark Test | 6KV/0.15 Sec |
| Insulation Unaged Tensile Strength / Elongation | 1500 lbs/in2 min / 100% Min |
| Insulation Aged Tensile Strength / Elongation |
Min 85%(136±1℃x168hrs) / Min 65%(136±1℃x168hrs) |
| Jacket Unaged Tensile Strength / Elongation | 1500 lbs/in2 min / 100% Min |
| Jacket Aged Tensile Strength / Elongation | Min 85%(136±1℃x168hrs) / Min 45%(136±1℃x168hrs) |
| Deformation Test | 121±1℃m X 1hr ≤ 50% |
| Cold Bend Test | -20℃ x 4hr No Crack |
| Heat Shock Test | 121±1℃ x 1hr No Crack |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
Product Weights
| SKU | Weight | |
| BK-PW3C10-SJT | 1.42 lb |
