Overview

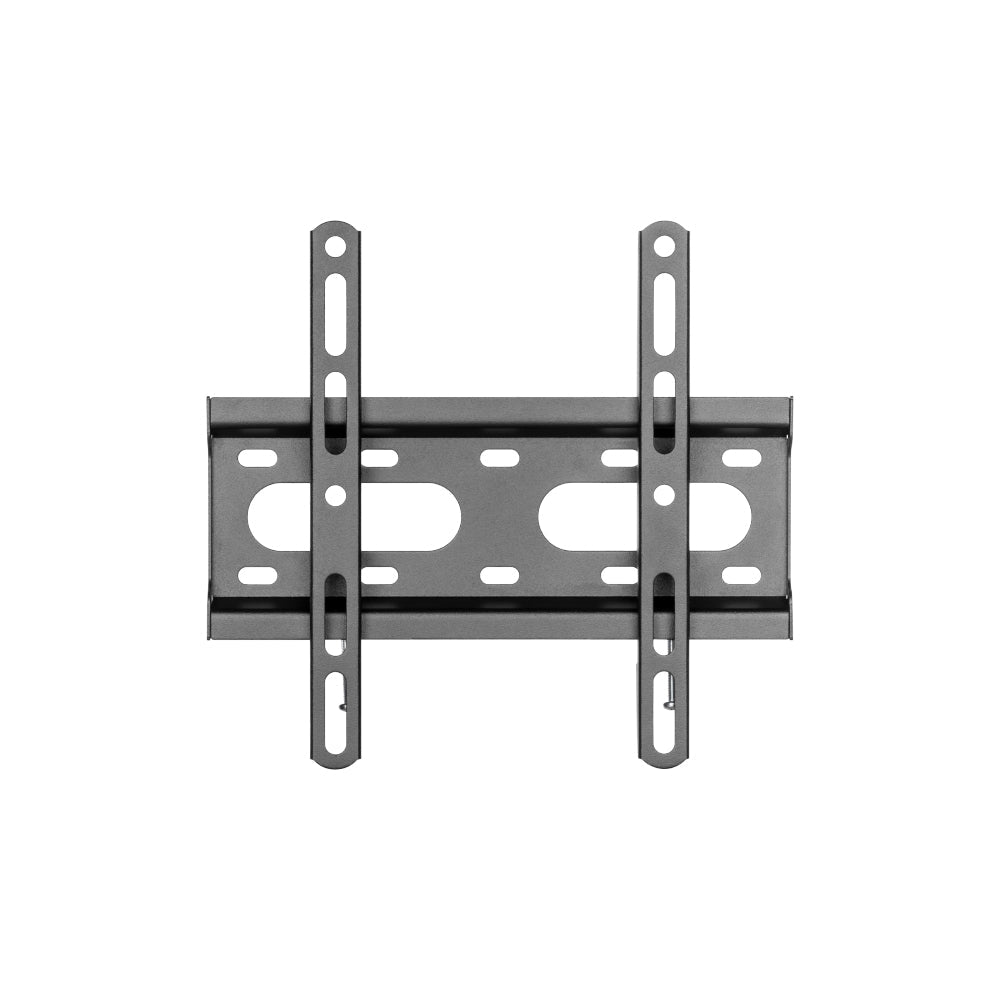

This LCD/LED fixed style TV wall mount bracket fits most 23 inch to 42 inch LCD displays with a maximum VESA hole pattern of 200x200. Its simple construction allows for easy installation and can be used in both residential and commercial environments.Ā
 |
Rail Security ScrewsThis TV mount has security screws that can hold the TV securely to the wall plate. Easy Installation and InexpensiveWith its simple construction, installation is quick, easy and cost-effective.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Fixed TV Wall Mount |
| Color | Powder Coated Black |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm Thickness=1.4mm [0.055 inch] cold-rolled sheet Wall Plate Thickness=1.4mm [0.055 inch] cold-rolled sheet |

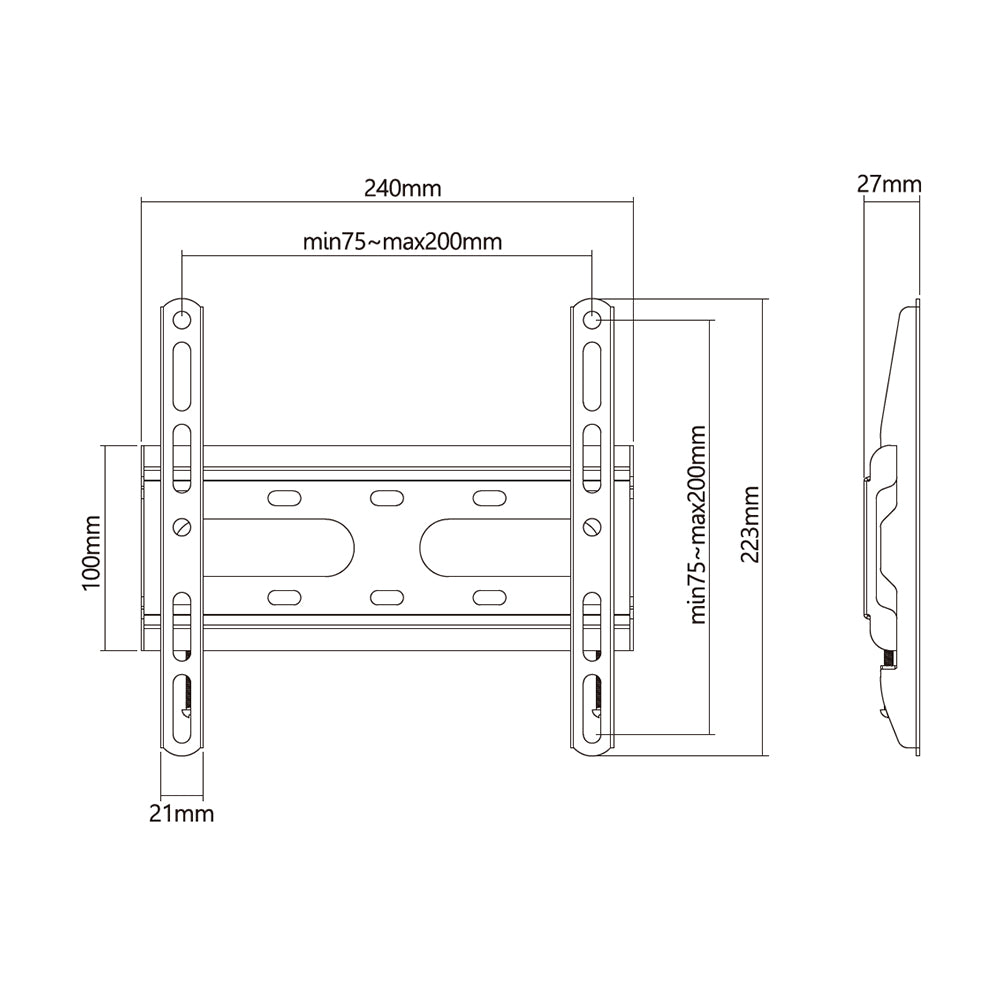

| Dimensions | 240 x 223 x 27mm [9.4 x 8.8 x 1.1 inches] |
| Mounting Pattern | VESA 75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200 |
| Screen Size | 23 - 42 inches [58 - 106cm] |
| Weight Capacity | 99 lbs [45kg] |

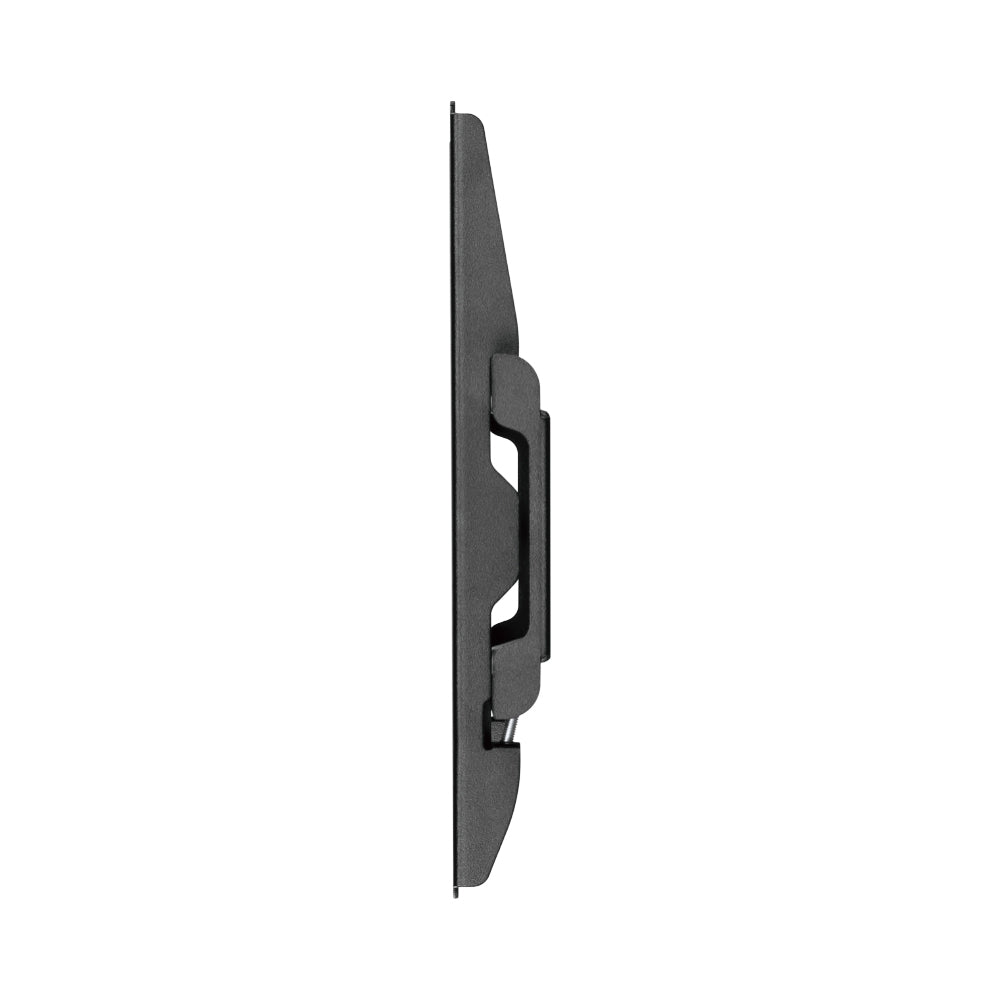

| Profile | 27 mm [1.1 inch] |
| Installation | Solid Wall |
| Panel Type | Detachable Panel |
| WallĀ Plate Type | Fixed Wall Plate |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Fits Curved TV | Yes |
| Tilt | No |
| Direction Indicator | No |
| Cable Management | No |
| Anti-Theft | No |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 2 lbs [0.90kg] |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| MT-335-BK | 40.0 lb |
