Overview

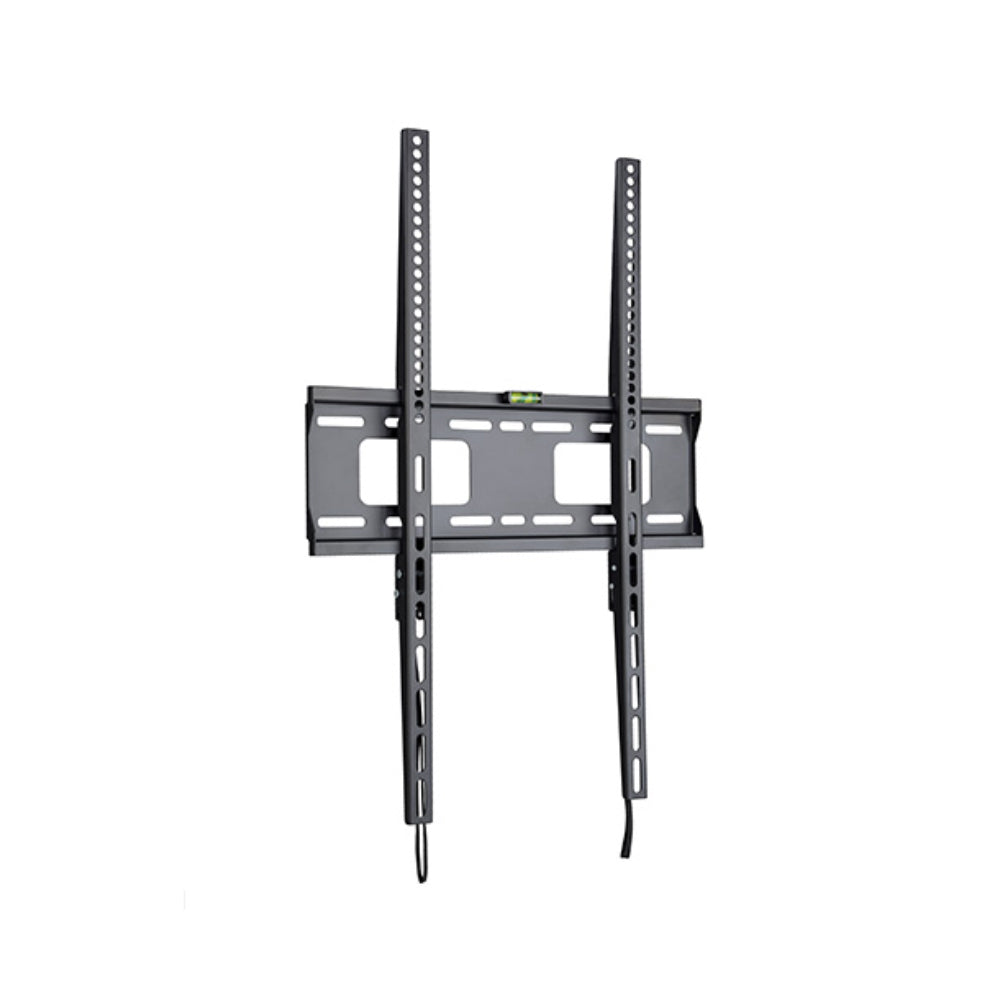

This wall mount bracket is designed to hold most 37 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 400x600. It is designed to mount the TV in a portrait orientation, typically used in commercial environments.
|
Portrait OrientationThis bracket is designed to mount the TV in a portrait orientation, and supports TVs up to 75kg/165lbs. The Ideal TV Mount for Many PossibilitiesThis TV mount offers a wide VESA spacing to accommodate larger TVs from 37 inch and up to 70 inch displays. It is ideal for public digital signage applications such as in restaurants/bars, houses of worship, cinemas and retail stores.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Fixed Portrait Wall Mount |
| Color | Durable Powder-Coated Black Finish |
| Material | Steel |

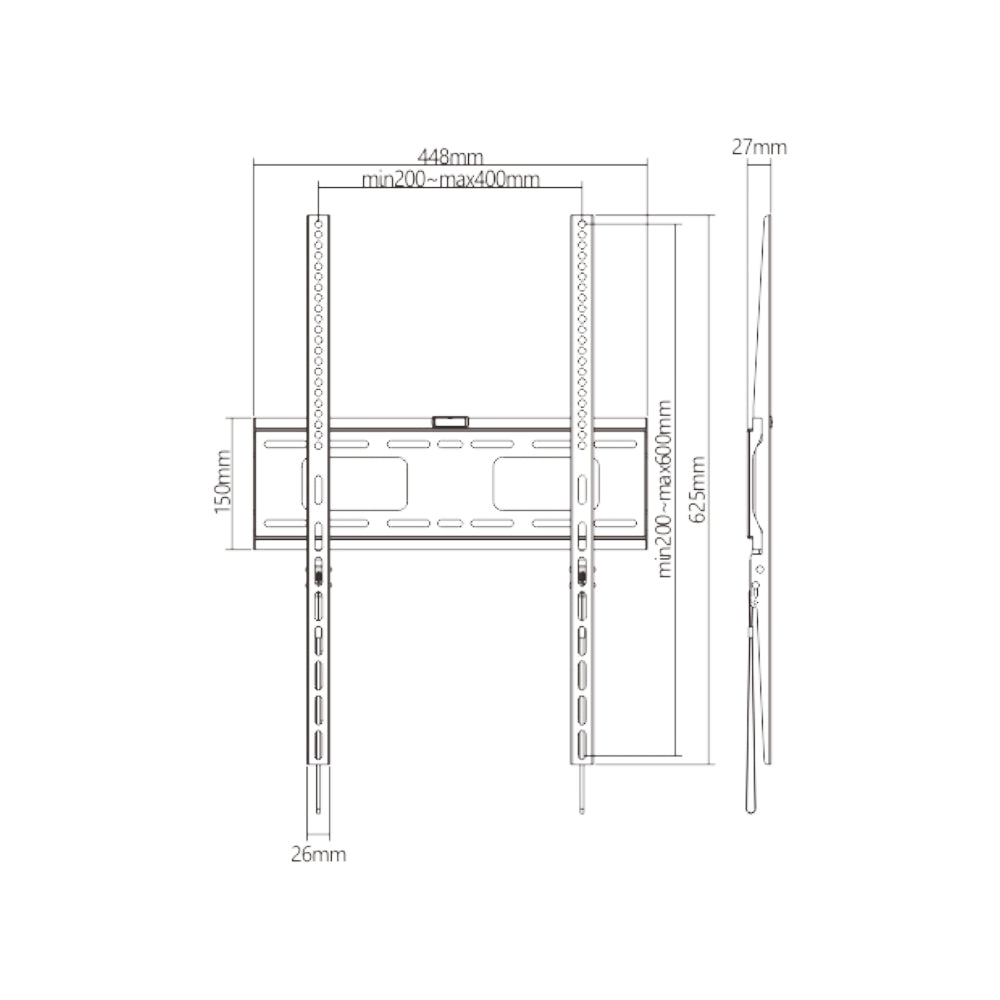

| Dimensions | 448 x 625 x 27mm [17.6 x 24.6 x 1.1 inches] |
| Mounting Pattern | VESA 200x200,300x200,400x200,300x300,400x300,400x400,400x600 |
| Screen Size | 37 - 70 inches [93.9 - 178cm] |
| Weight Capacity | 165lbs [75kg] |
| Profile | 27mm |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 4.65 lbs [2.1 kg] |
