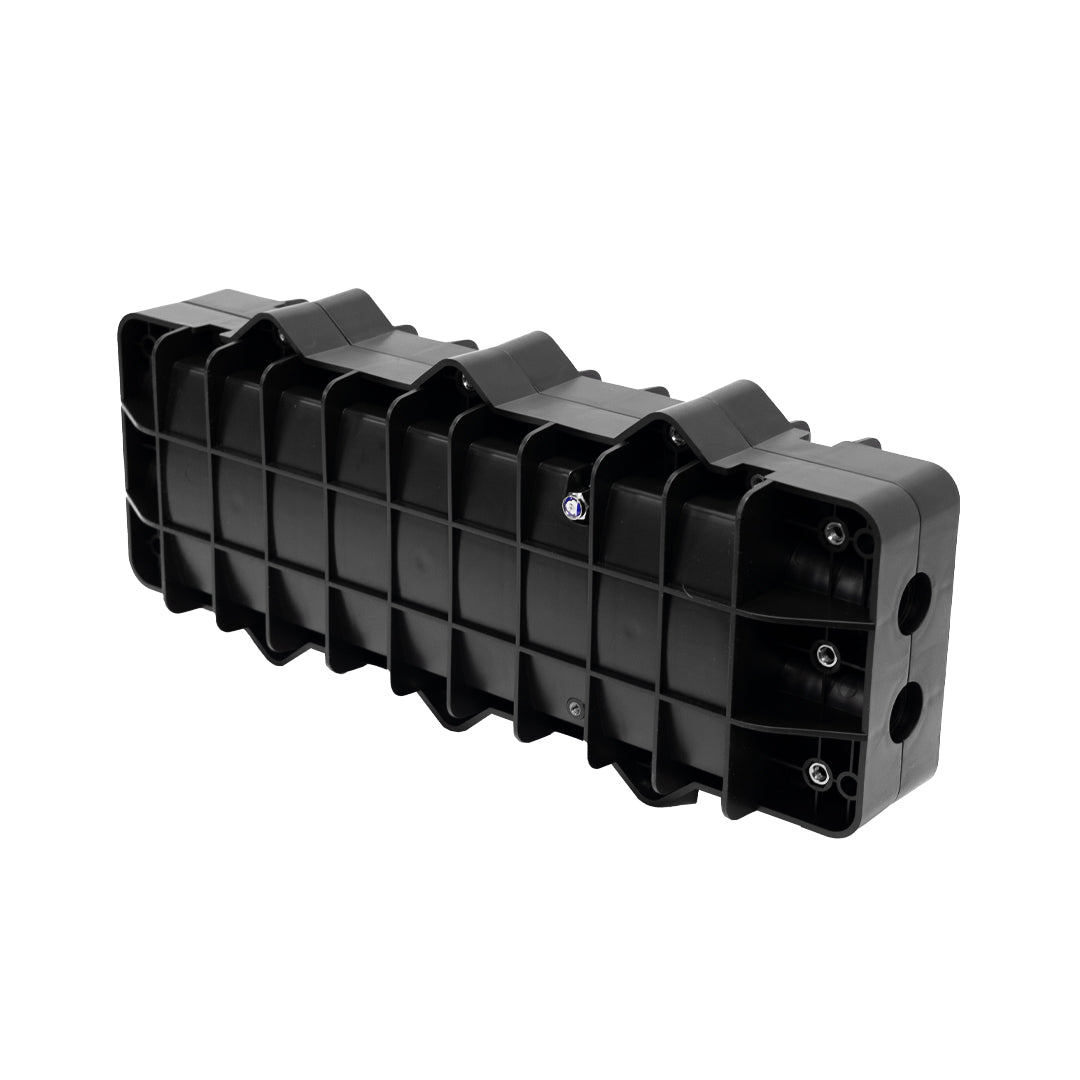

This horizontal fiber optic splice enclosure is used for fiber optic cable splicing. It hasĀ -40oC temperature rating, and is suitable for outdoor aerial hung, and wall mount applications.Ā
Features:
- Reasonable design for cable protection.
- Material: PP plastic for base and cover; ABS plastic for inside parts.
- 4 cable ports (2 in 2 out) for max. 19mm diameter optical cable entry & exist.

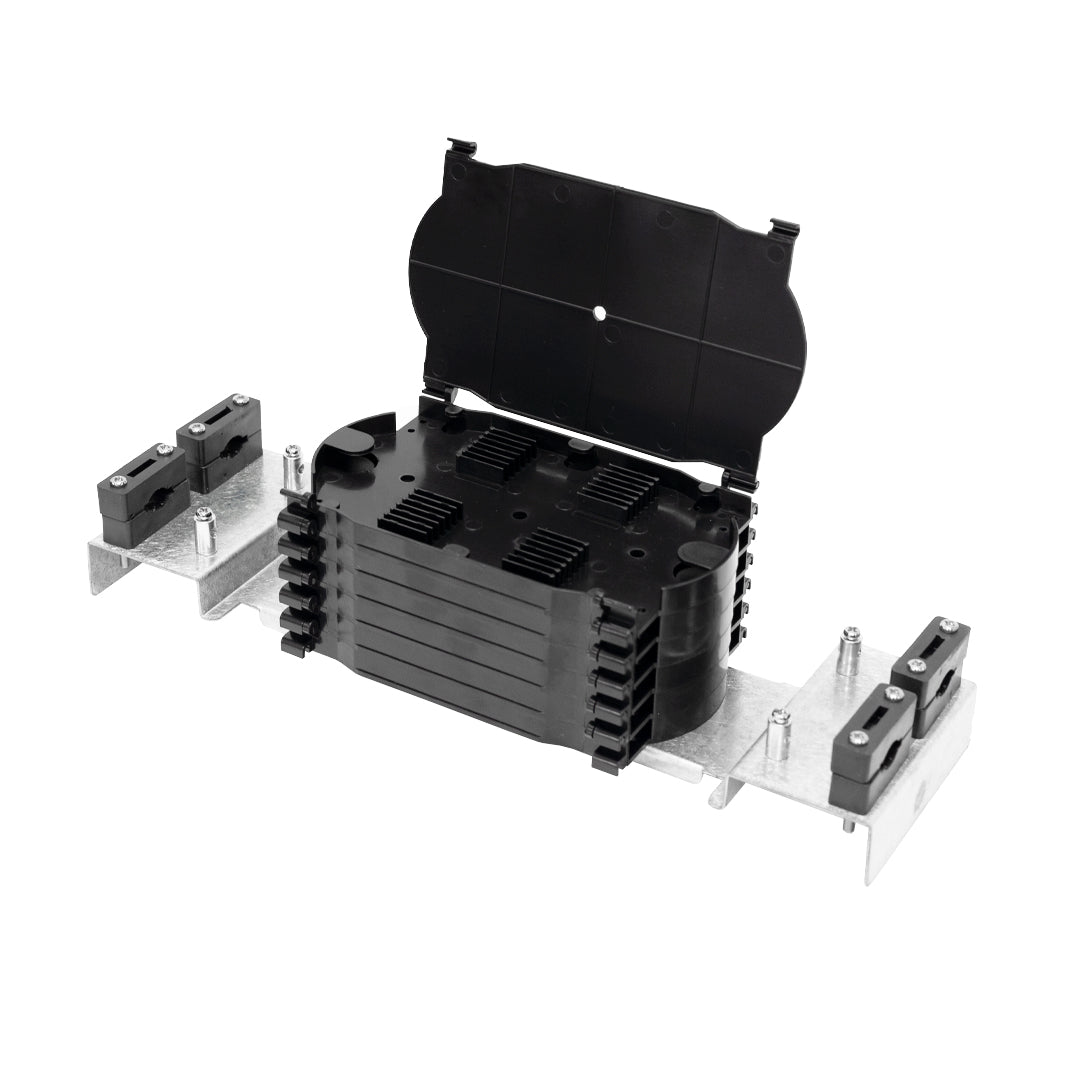

- Max. 6pcs splice tray, each 24 fibers; max. 144 fibers capacity.
- With fixing cable strengthen core parts.
- Dust-proof and waterproof, IP68.
Physical Characteristics |
|
|
Color |
Black |
|
|
Material |
Outside: PP Plastic Inside: ABS Splice Tray |
|
|
Cable Ports |
2 in 2 out |
|
|
Splice Tray |
Max Quantity of Splice Trays: 6pcs ā Comes loaded with 6 splice trays Max Capacity of Splice Tray: 24 fibers |
|
|
Capacity |
144 fibers max. |
|
|
Temperature Rating |
-40oC
|
|
|
Dimension |
424 x 173.6 x 104 mm |
|
|
IP Standard |
IP68, Dust-proof and Waterproof |
|
|
Packaging Information |
|
|

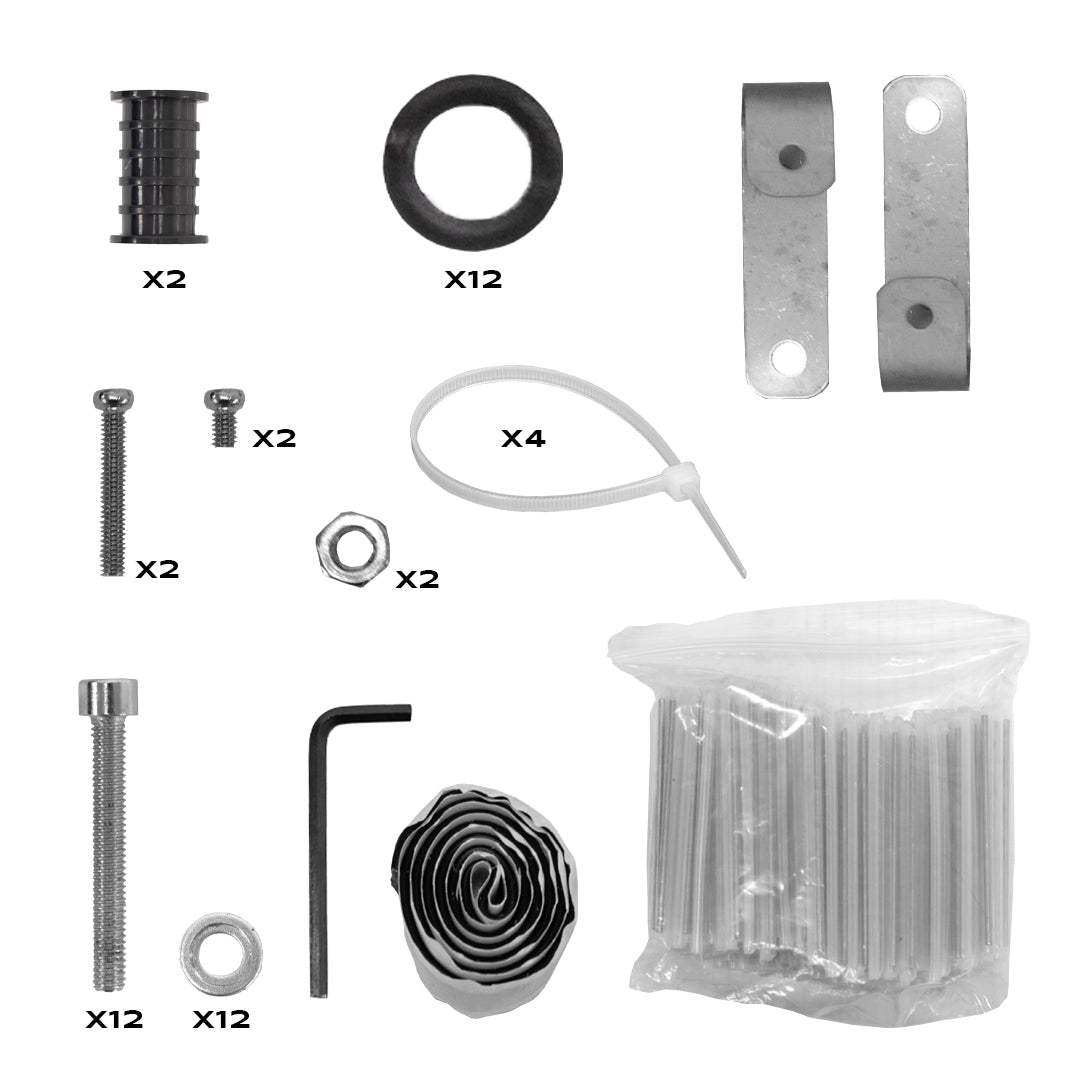

Package Contents |
Heat protect shrinkable sleeve |
60mm*3.0*1.5 |
As per using capacity |
|
Cable tie |
3mm*120mm |
4 pcs |
|
Inner hexagon spanner |
S6 |
1 pc |
|
Screw |
M4*25 |
2 pcs |
|
Screw nut |
M4 |
2 pcs |
|
Plug cap |
Ī¦28*42mm |
2 pcs |
|
Plastic gasket |
Ī¦28*Ī¦12*2.7 |
4 pcs |
|
Plastic gasket |
Ī¦28*Ī¦14*2.7 |
4 pcs |
|
Plastic gasket |
Ī¦28*Ī¦18*2.7 |
4 pcs |
|
Adhesive tape |
15mm*2mm*950mm |
1 reel |
|
Screws |
M5*8 |
2 pcs |
|
Aerial hook |
|
2 pcs |
Product Weight |
4.93 lbs [2.23kg]
|
|
|
