Description

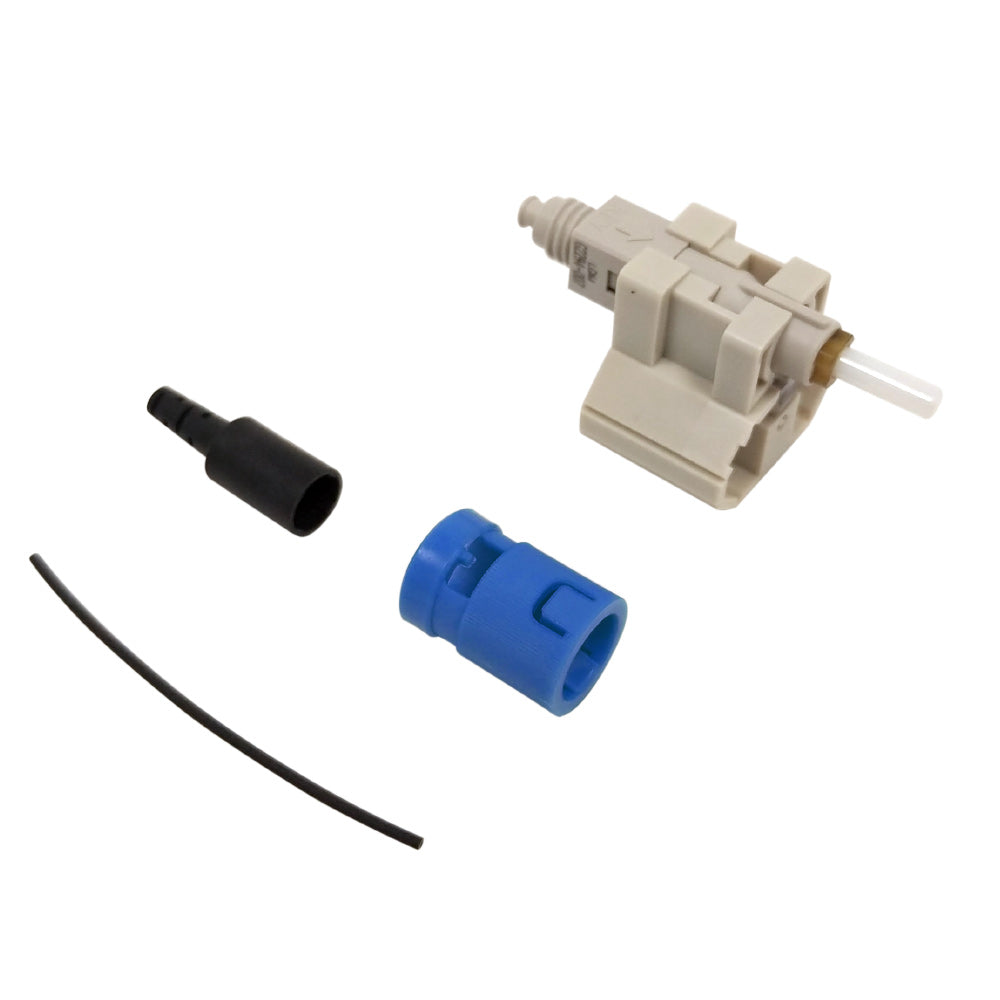

This device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Features
- No Epoxy, No Polish
- Low Insertion Loss
- Fiber Can Be Reinserted up to Three Times
- 3.0 mm, 2.0 mm and 900 µm Cordage Compatibility
- VFI Accessory to Confirm Proper Installation
Applications
- Premise/Enterprise Networks
- LAN/WAN Connections
- Patch Panels
- Equipment Termination
- FTTx Applications
- Field Repair/Replacement
- Equipment Test Leads
| Physical Characteristics | |
|---|---|
| Color | Beige Connector - Blue ST Connector Housing |
| Cable Diameter | 900 µm |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Operating Temperature | -40℃ to +75℃ |
| Fiber Classification | UPC |
| Connector | |
| Connector | ST Simplex Male |
| Performance | |
| Insertion Loss | Average: 0.2 dB, Maximum: 0.5 dB |
| Return Loss | Average: -50 dB, Maximum: -45 dB |
| Package Information | |
| Package Quantity | 6 |
| Product Weight | 0.19 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| FO-FAST-ST-SM-6 | 0.19 lb |
