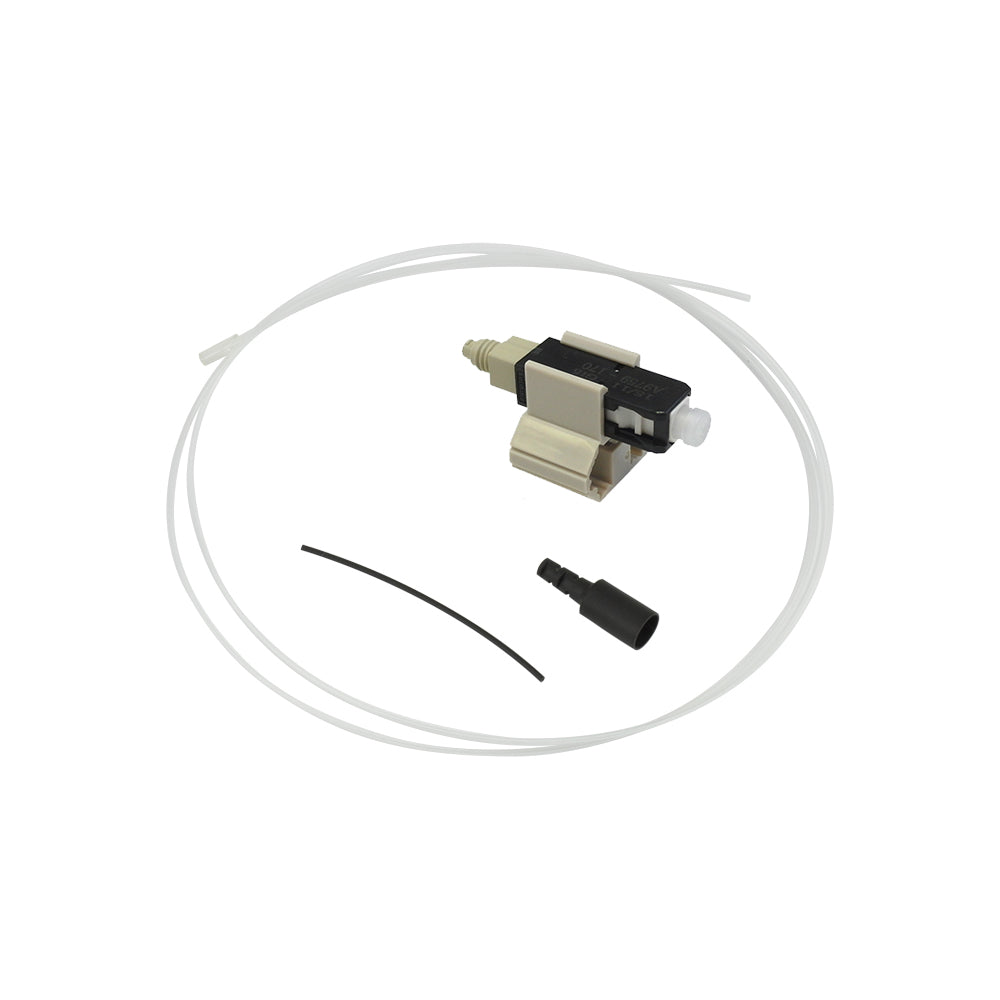

These fiber optic FASTConnect field-termination SC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination on 50 micron multimode optical fibers. FAST Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 3 mm cordage (2mm and 3mm boots sold separately). The connectors are color coded per industry standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

Features

• No Epoxy, No Polish
• Low Insertion Loss
• Fiber Can Be Reinserted up to Three Times
• 3.0 mm, 2.0 mm and 900 µm Cordage Compatibility
• VFI Accessory to Confirm Proper Installation

Applications

• Premise/Enterprise Networks
• LAN/WAN Connections
• Patch Panels
• Equipment Termination
• FTTx Applications
• Field Repair/Replacement
• Equipment Test Leads
