Description

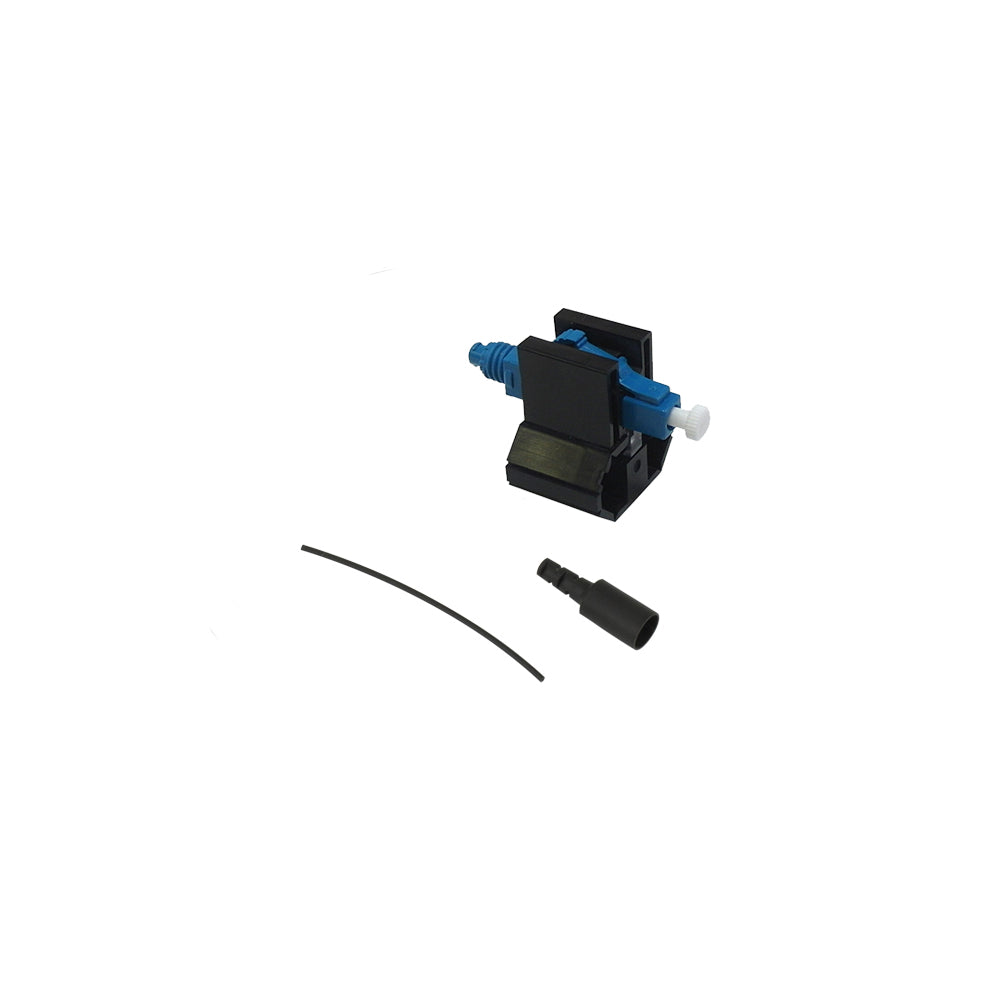

This device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Features
- No Epoxy, No Polish
- Low Insertion Loss
- Fiber Can Be Reinserted up to Three Times
- 3.0 mm, 2.0 mm and 900 Â1/4m Cordage Compatibility
- VFI Accessory to Confirm Proper Installation
Applications
- Premise/Enterprise Networks
- LAN/WAN Connections
- Patch Panels
- Equipment Termination
- FTTx Applications
- Field Repair/Replacement
- Equipment Test Leads
| Physical Characteristics | ||
|---|---|---|
| Color | Blue | |
| Cable Diameter | 900 µm | |
| Fiber Size | 9/125 micron | |
| Fiber Type | Singlemode | |
| Operating Temperature | -40℃ to +75℃ | |
| Fiber Classification | UPC | |
| Connector | ||
| Connector | LC Simplex Male | |
| Performance | ||
| Insertion Loss | Average: 0.2 dB, Maximum: 0.5 dB | |
| Return Loss | Average: -55 dB, Maximum: -45 dB | |
| Package Information | ||
| Package Quantity | 6 | 100 |
| Product Weight | 0.18 lbs | 2.51 lbs |
Spec Sheets
Installation Video
Product Weights
| SKU | Options | Weight |
| FO-FAST-LC-SM-100 | 100/Pack | 2.51 lb |
| FO-FAST-LC-SM-6 | 6/Pack | 0.18 lb |
