Description

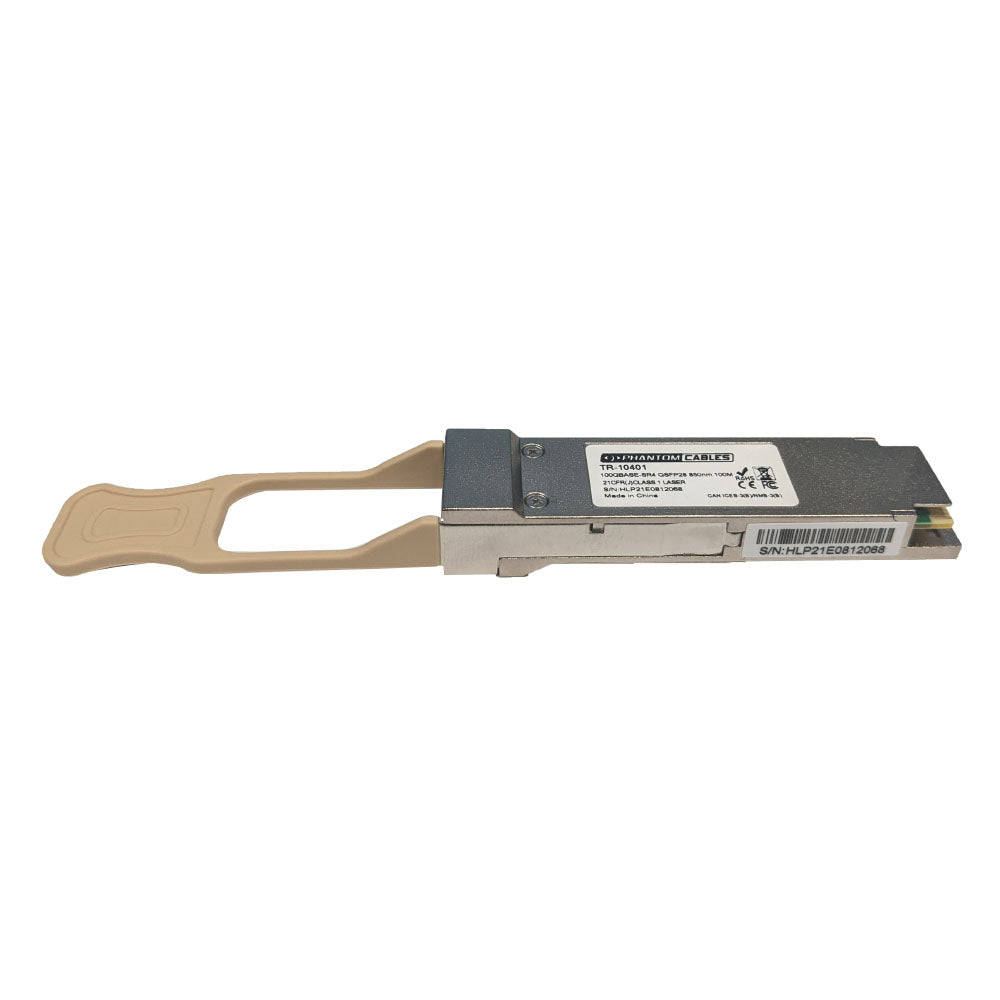

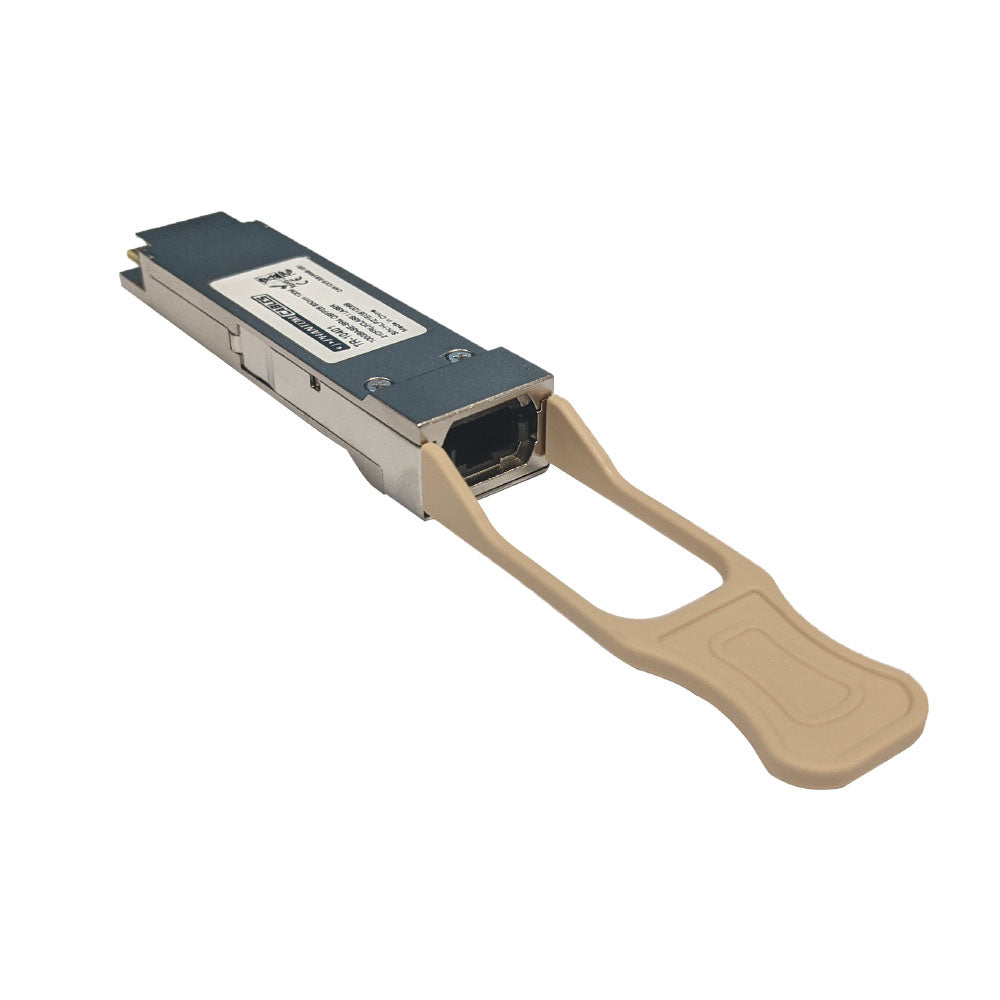

This is a Quad Small Form-factor Pluggable (QSFP28) transceiver module with maximum data transfer rate of 100 Gbps up to 100m over multimode fiber cable. It is used in compatible network devices with a QSFP28 slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Extreme Networks and the Extreme Networks logo are trademarks or registered trademarks of Extreme Networks. This product is not certified or endorsed by Extreme Networks.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 100°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | MPO/MTP | |
| Performance | ||
| Media Supported | 100GBase-SR4 Multimode Fiber | |
| Maximum Transmission Distance |
100m with 50/125µm OM3 MM |
|
| Wave Length | 850nm | |
| DDM Support | Yes | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Product Weights
| SKU | Weight | |
| TR-10401 | 0.08 lb |
