Description

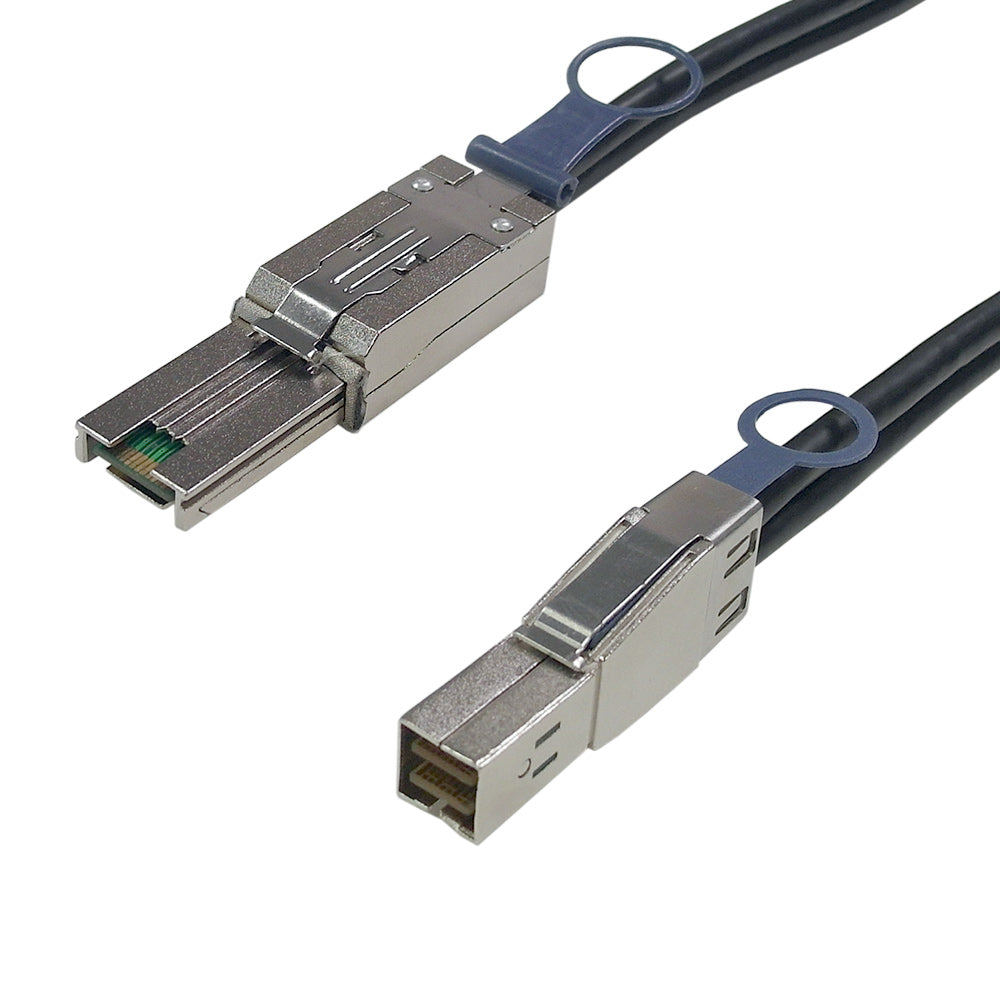

This external universal key Mini-SAS cable has a external Mini-SAS (SFF-8088) connector on one end, and a HD Mini-SAS (SFF-8644) connector on the other end. It is typically used to connect external Mini-SAS drives, servers and switches.
| Physical Characteristics | |
|---|---|
| Impedance | 100±5 ohm |
| Application | SAS 6G Use |
| Wire Gauge | 28AWG |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Connectors | |
| Connector A | External Mini-SAS (SFF-8088) |
| Connector B | HD Mini-SAS (SFF-8644) |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.5m | 1m | 2m | 3m | 5m | 7m |
|---|---|---|---|---|---|
| 0.25 lbs [0.12kg] | 0.34 lbs [0.15kg] | 0.52 lbs [0.24kg] | 0.69 lbs [0.31kg] | 1.05 lbs [0.5kg] | 1.4 lbs [0.64kg] |
Product Weights
| SKU | Options | Weight |
| MS-105-0.5M | 0.5m | 0.35 lb |
| MS-105-1M | 1m | 0.5 lb |
| MS-105-2M | 2m | 0.65 lb |
| MS-105-3M | 3m | 1.2 lb |
| MS-105-5M | 5m | 1.4 lb |
| MS-105-7M | 7m | 1.75 lb |
