Description

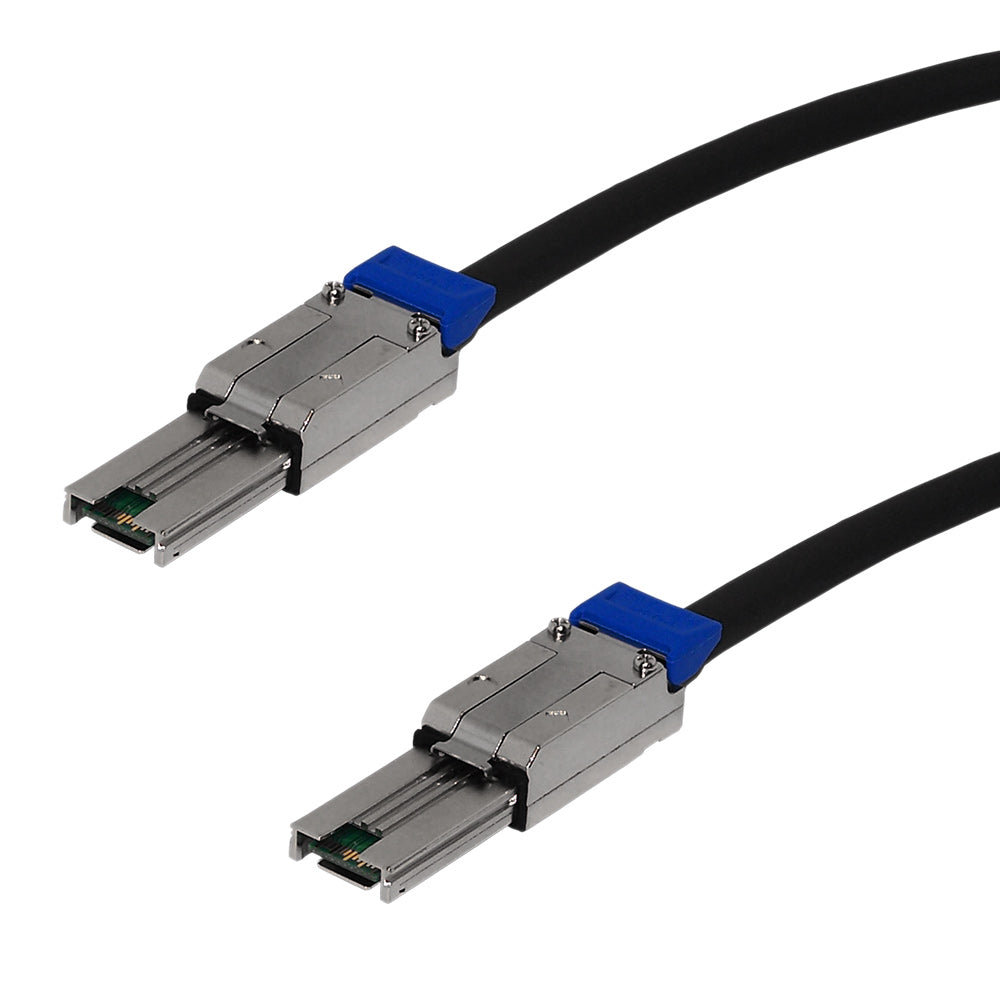

This external universal key Mini-SAS cable has Mini-SAS (SFF-8088) connectors on both ends. It is typically used to connect external Mini-SAS drives, servers and switches.
| Physical Characteristics | |
|---|---|
| Impedance | 100±5 ohm |
| Application | SAS 6G Use |
| Wire Gauge | 28AWG |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Connectors | |
| Connector A | External Mini-SAS (SFF-8088) |
| Connector B | External Mini-SAS (SFF-8088) |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.5m | 1m | 2m | 3m | 5m | 7m |
|---|---|---|---|---|---|
| 0.15 lbs [0.06kg] | 0.35 lbs 0.1kg] | 0.5 lbs [0.2kg] | 0.65 lbs [0.2kg] | 1.2 lbs [0.5kg] | 1.4 lbs [0.6kg] |
Product Weights
| SKU | Options | Weight |
| MS-100-0.5M | 0.5m | 0.35 lb |
| MS-100-1M | 1m | 0.5 lb |
| MS-100-2M | 2m | 0.65 lb |
| MS-100-3M | 3m | 1.2 lb |
| MS-100-5M | 5m | 1.4 lb |
| MS-100-7M | 7m | 1.75 lb |
