Description

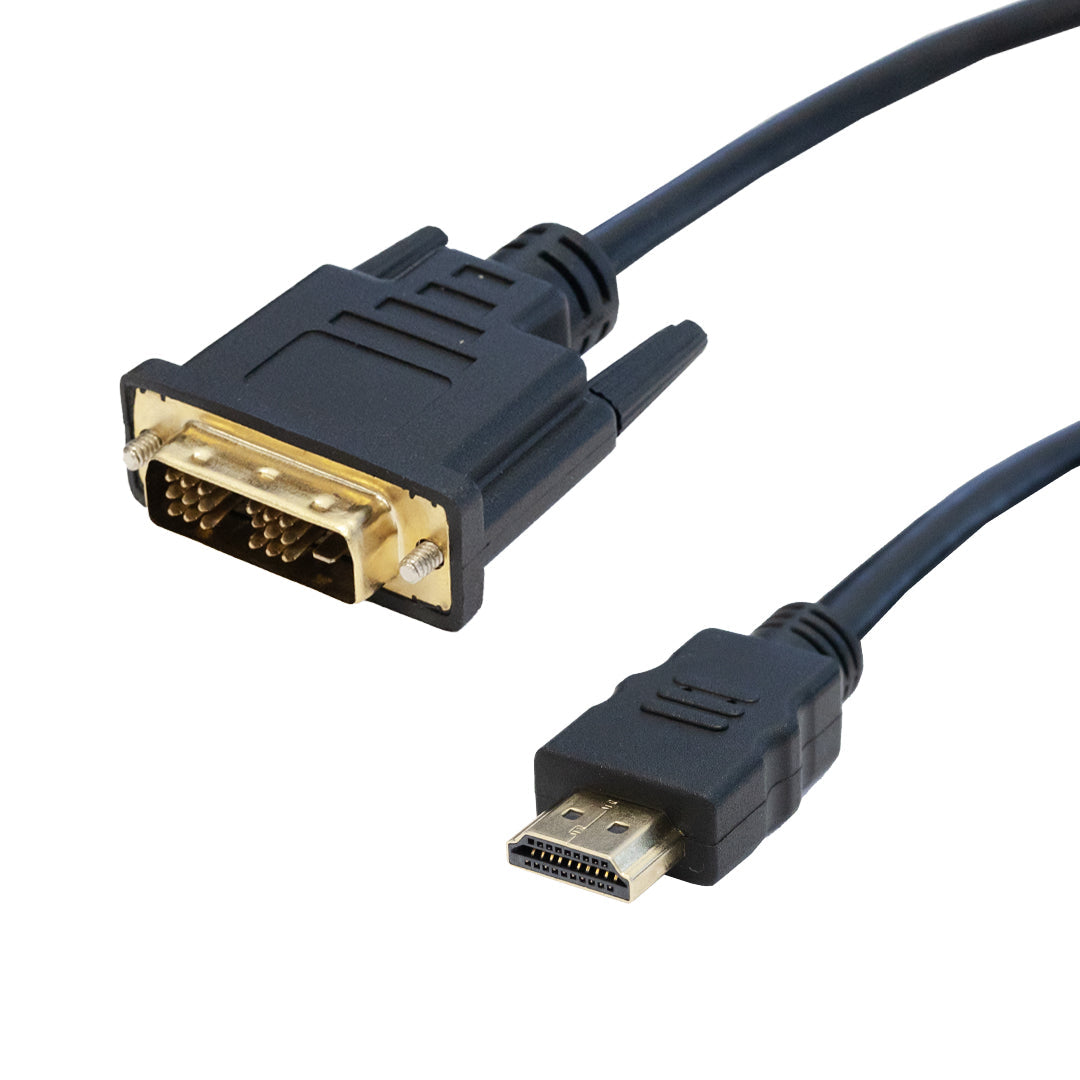

This bi-directional DVI to HDMI video cable consists of a DVI-D male connector on one end and a HDMI male connector on the other. It can be used to connect a DVI source to a HDMI display or a HDMI source to a DVI display.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 7.3 mm |
| Wire Gauge | 28 AWG (3/6/10/15 ft) 24 AWG (25/35/50 ft) |
| Shielding | 85% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | DVI-D Single Link Male |
| Connector B | HDMI Male |
| Performance | |
| Resolution | 1920x1200 / 1080p |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 0.25 lbs | 0.40 lbs | 0.57 lbs | 0.73 lbs | 2.30 lbs | 3.00 lbs | 4.30 lbs |
