Description

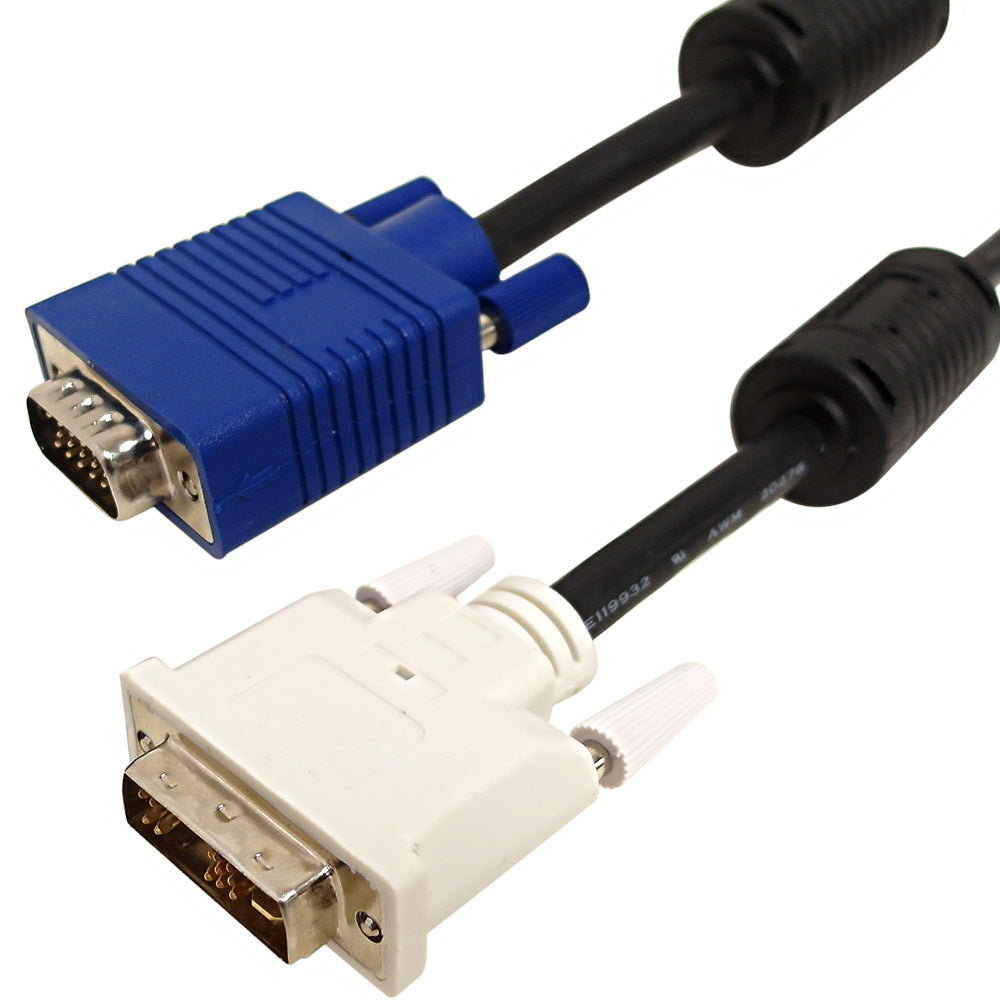

This analog DVI to VGA video cable consists of a DVI-A male connector on one end and a VGA male connector on the other. It is typically used to connect a DVI analog source to a VGA display.
| Physical Characteristics | |
|---|---|
| Color | Black Cable, Blue VGA Molding, White DVI Molding |
| Connector Plating | Nickel |
| Cable Diameter | 8.0 mm |
| Wire Gauge | 28 AWG |
| Shielding | 85% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | DVI-A Single Link Male |
| Connector B | HD15 Male |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 50ft |
|---|---|---|---|---|---|
| 0.50 lbs | 0.70 lbs | 0.90 lbs | 1.25 lbs | 2.30 lbs | 5.50 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DVI-VGA-03 | 3ft | 0.15 lb |
| DVI-VGA-06 | 6ft | 0.21 lb |
| DVI-VGA-10 | 10ft | 0.33 lb |
| DVI-VGA-15 | 15ft | 0.5 lb |
| DVI-VGA-25 | 25ft | 0.77 lb |
| DVI-VGA-50 | 50ft | 1.55 lb |
