Dual Locking C19 to C20 Universal Power Cable - 14AWG H05VV-F 1.5 (16A 250V) - SJT Jacket

AC Power CordsSKU: PWDL-125C-03

Length: 3ft
Price:
Sale price$10.04 USD
Stock:
In stock

Description

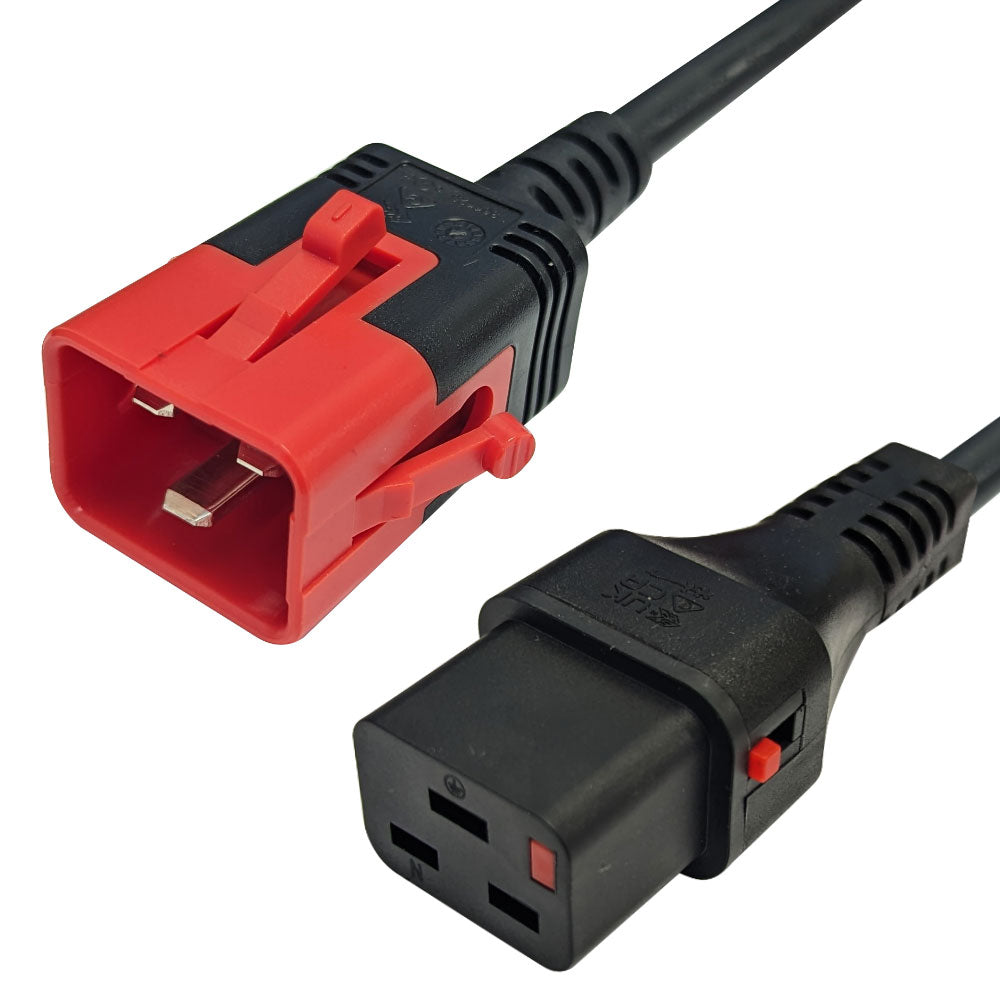

This power cord consists of a locking C20 male on one end and a locking C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. The unique dual lockable C19 female and C20 male connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Conductor Color Codes Earth (Green and Yellow)
Neutral (Blue)
Live (Brown)
Wire Gauge 14AWG / 1.5 mm2
Jacket Heavy Duty SJT / H05VV-F (Universal Approved)
Jacket Fire Rating VW-1
Strain Relief Molded PVC
Temperature Rating 105 deg C
Connector(s)
Connector A IEC 60320 Locking C19 - c(UL)us
Connector B IEC 60320 Locking C20 - c(UL)us
Performance
Power Rating 16 Amp / 250 Volt
Approvals
c(UL)us Yes
SAA Yes
ENEC Yes
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft
0.34 lbs 0.51 lbs 0.78 lbs
SKU Options Weight
PWDL-125C-03 3ft 0.36 lb
PWDL-125C-06 6ft 0.65 lb
PWDL-125C-10 10ft 1.03 lb
