DisplayPort Male to DVI Male Cable - CL3/FT4 28AWG

DisplayPort CablesSKU: DP-DVI-03

Length: 3ft
Price:
Sale price$10.85 USD
Stock:
In stock

Description

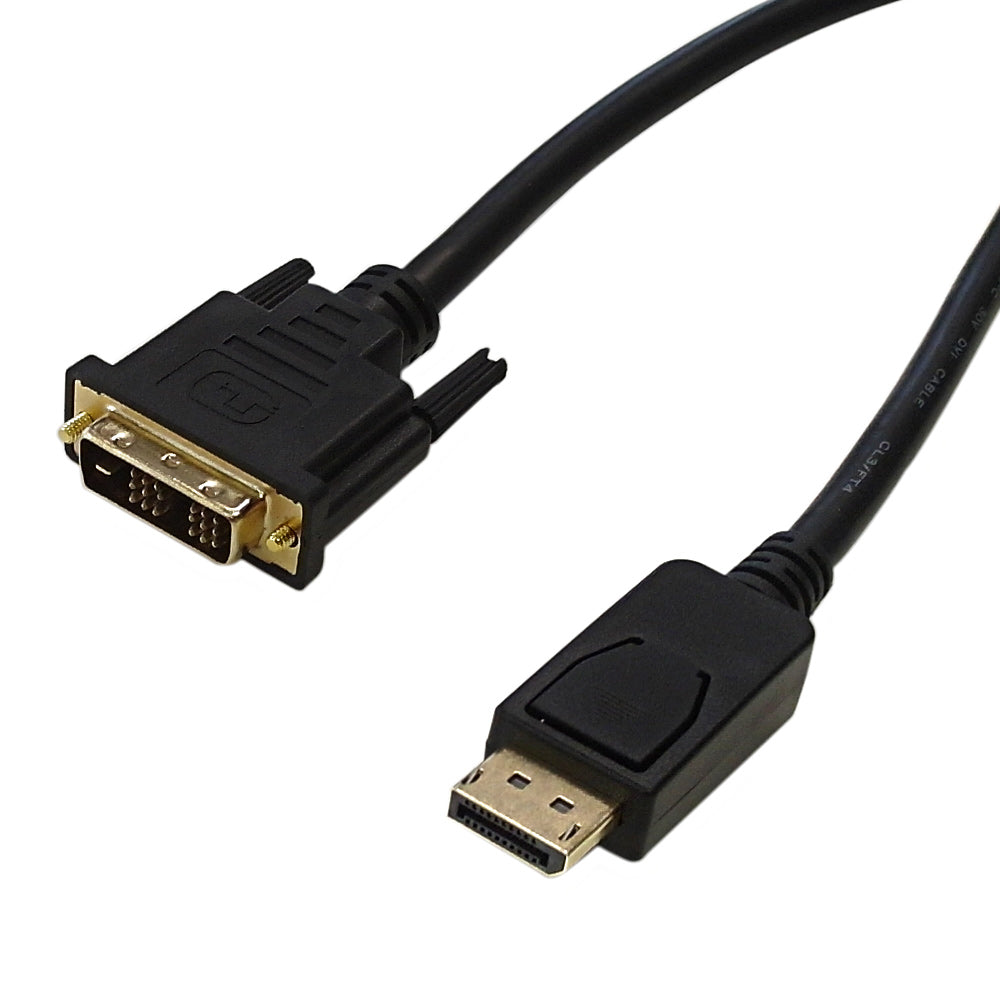

This cable consists of a DisplayPort male on one end and a DVI male on the other end. It is typically used to connect a DisplayPort PC to a DVI monitor. This is a passive directional cable that will only work on a DisplayPort++ (DP++) source to DVI monitor and does not work in the reverse direction (DVI PC to DisplayPort monitor).

Physical Characteristics
Color Black
Connector Plating Gold
Cable Diameter 7.3 mm
Wire Gauge 28AWG
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CL3, FT4 Riser Rated
Cable Shielding Yes
Strain Relief Molded PVC
Temperature Rating 80 deg C
Connector(s)
Connector A DVI Single Link Male
Connector B DisplayPort Male
Performance
Bandwidth 6.75Gb/S
Resolution 1080P
3D Support No
Version v1.1
Approvals
c(UL)us Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft
0.23 lbs 0.35 lbs 0.50 lbs 0.72 lbs 1.10 lbs
SKU Options Weight
DP-DVI-03 3ft 0.15 lb
DP-DVI-06 6ft 0.21 lb
DP-DVI-10 10ft 0.33 lb
DP-DVI-15 15ft 0.5 lb
DP-DVI-25 25ft 0.77 lb
