Overview

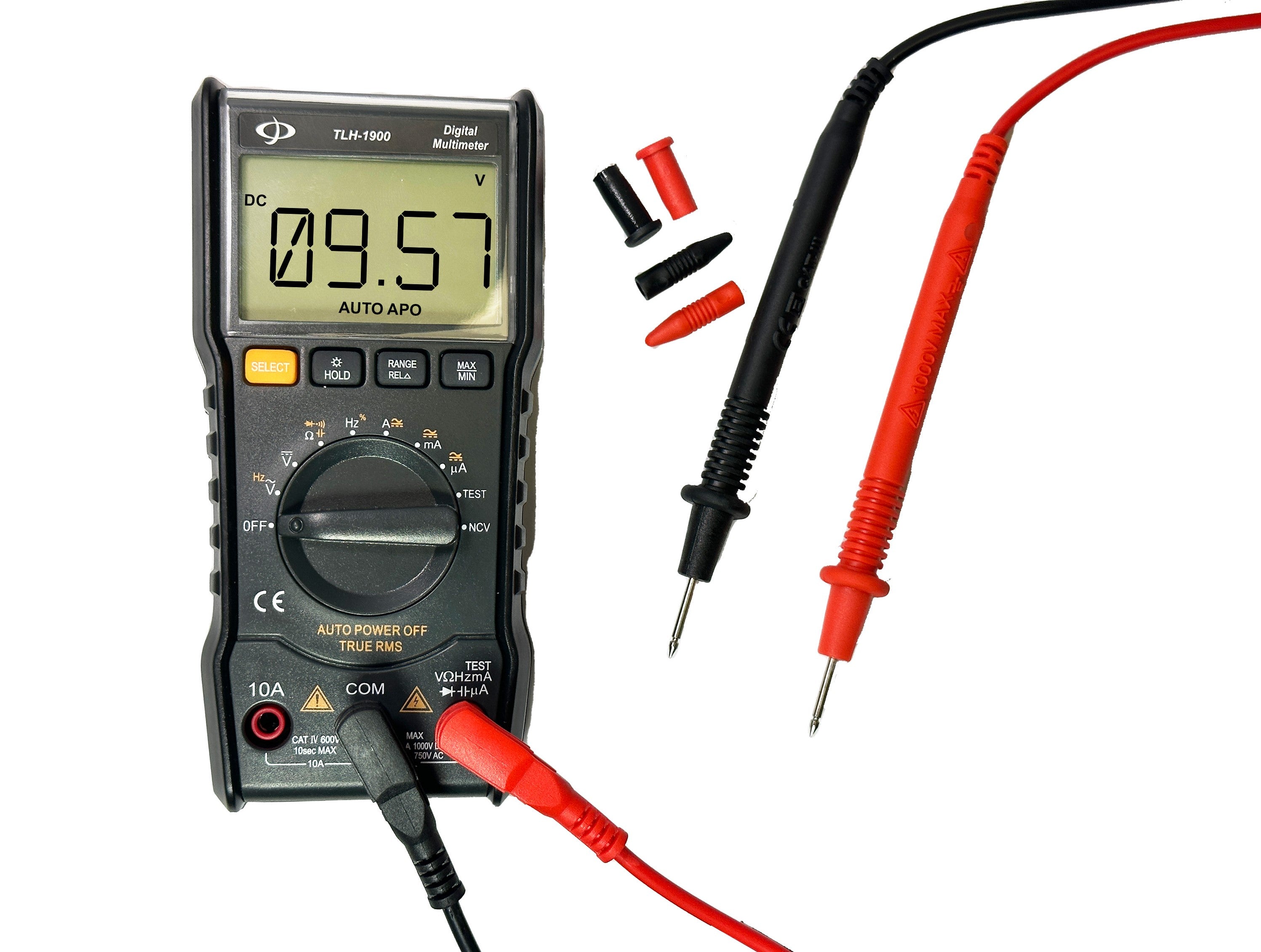

This digital multimeter is basically used to measure AC/DC voltage, AC/DC amperage, resistance, capacitance and frequency. The meter has a large back lit LCD display, overload protection and comes with test leads.
Features
- Display, liquid crystal display (LCD)
- Maximum display: 5999 (3 5/6) bits automatic polarity display
- Measurement: double integral A / D conversion
- Sampling rate: about 3 times per second
- Over-range and Low voltage display
- On-off buzzer diode
- Flashlight/ backlight
- Non-contact voltage
- Certifications - Passes RoHS, FCC, and CE compliance testing
 |

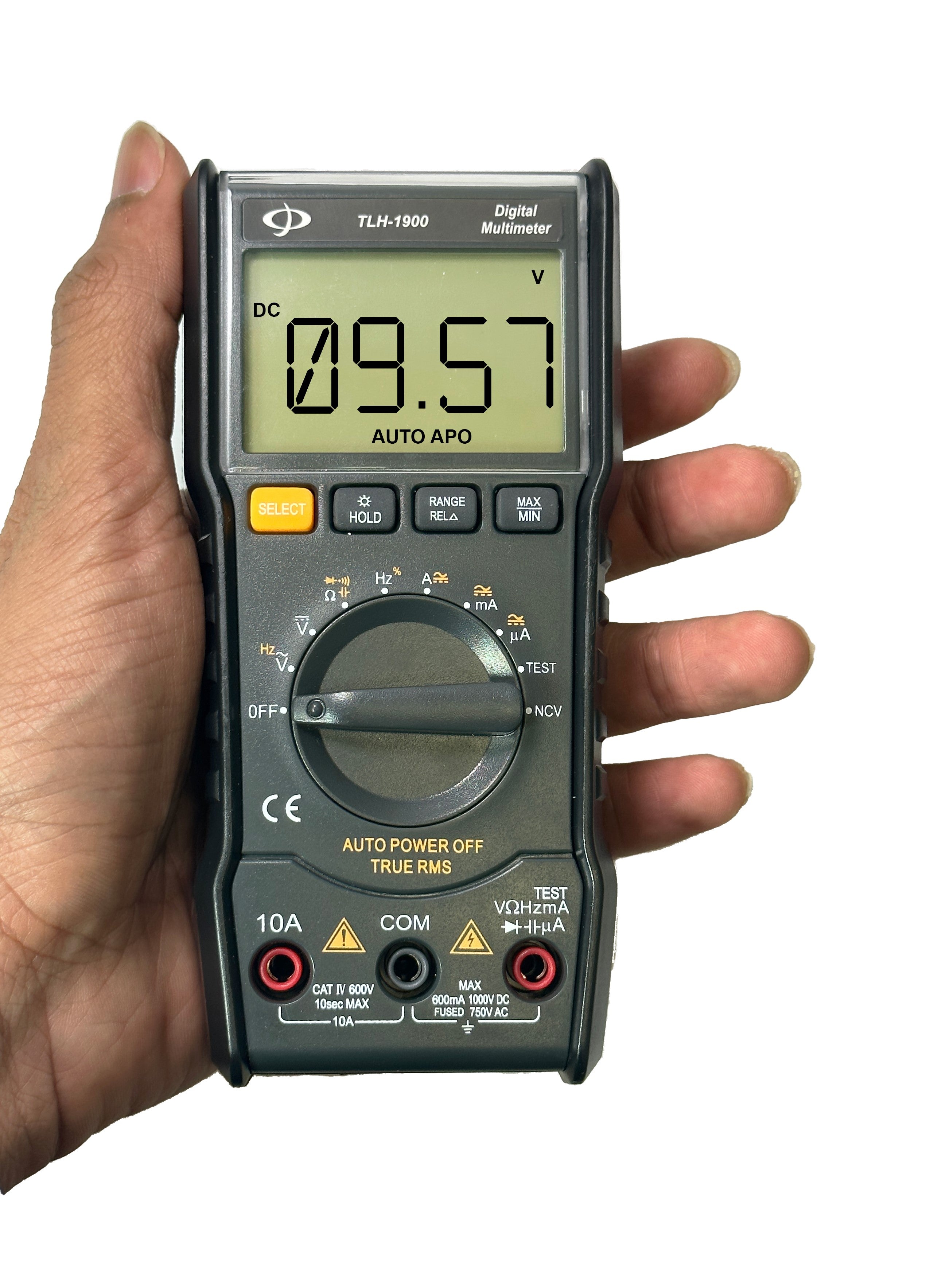

Smart - Inexpensive - CompactThis digital multimeter is smart, inexpensive and simple to use. Comes in a compact, lightweight design with large LCD display and smart turn OFF technology.
Quick and Easy OperationThis digital multimeter is a quick and easy way to measure AC/DC voltage, AC/DC amperage, resistance, capacitance, frequency and much more.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Display | liquid crystal display (LCD) |
| Resolution (RGB) | 800 x 480 |
| Dimensions |
142 x 70 x 32mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | <80% |
| Power Supply | |
| Battery | 2 x AAA 1.5V |
| Performance | |
| DC Voltage | 6V〜1000V ± (0.5%+4) |
| AC Voltage | 6V-750V ± (0.8%+3) |
| DC Current | 600μA~10A ± (0.8%+8) |
| AC Current | 600μA~10A ± (1.0%+8) |
| Resistance | 600Ω~40MΩ ± (1.0%+8) |
| Capacitance |
60nF〜6mF ± (5.0%+10) 30mF ± (5.0%+10) |
| Frequency | 10Hz〜10MHz ± (0.01%+5) |
| Duty Cycle | 0. 1-99% |
| Display counts | 6000 counts |
| Auto/Manual range | Manual |
| Live Test | Yes |
| NCV | Yes |
| Diode test | Yes |
| MAX/MIN/hold | MAX |
| Data Hold | Yes |
| True RMS | Yes |
| Battery test( 1.5 V/9 V ) | Yes |
| Low battery indication | Yes |
| AUTO power off | Yes |
| Double color backlight | Yes |
| Flashlight | Yes |
| Resistance measurement | 600 Ω~60M Ω ±(1.0%+8) |
| Capacitance measurement |
60nF~6mF ±(2.5%+60) 30mF ±(5.0%+10) |
| Packaging Information | |
| Packaging Contents |
1 - Digital Multimeter 1 - Multi-Meter Test Leads (One Pair of Red and Black) 1 - Test Certificate 1 - User Manual |
| Product Weight | 0.70 lbs [317g] |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on this product to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
