Description

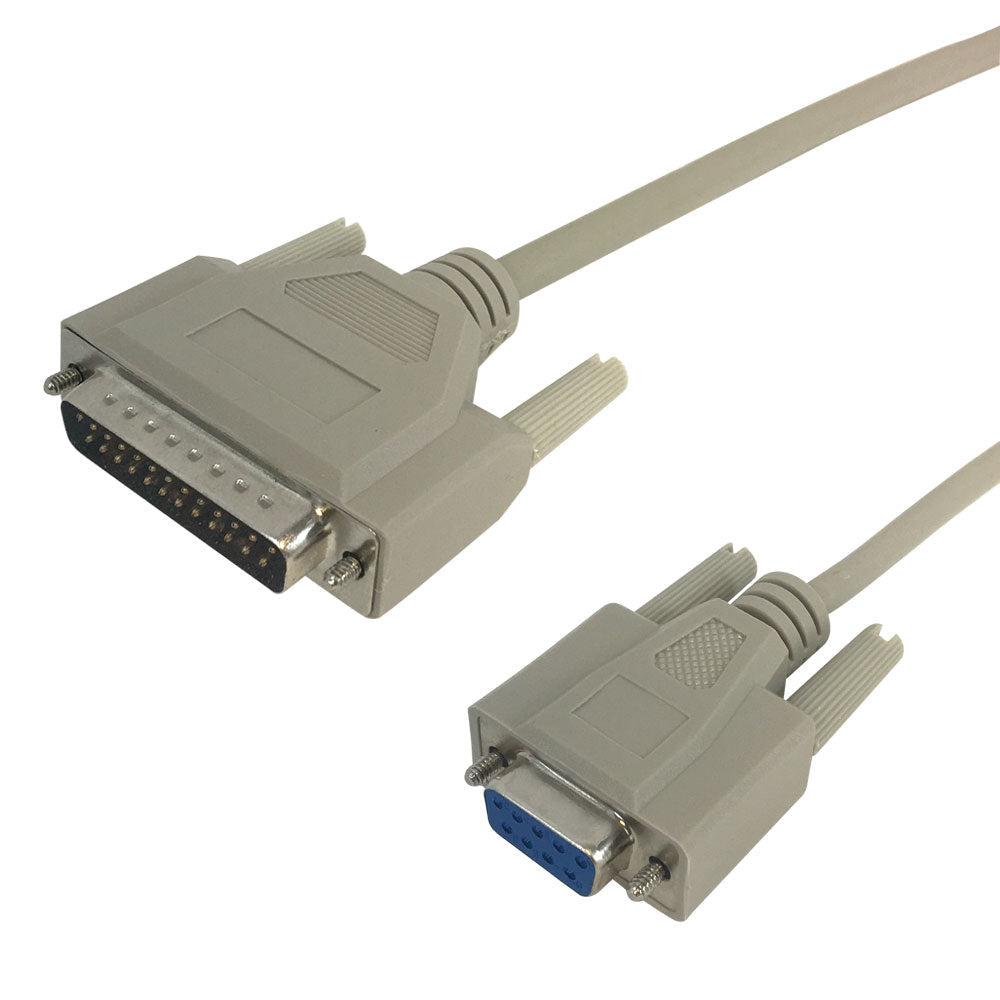

This AT-modem serial cable consists of a DB9 female on one and a DB25 male on the other. It is commonly used in serial RS-232 AT-modem applications.
| Physical Characteristics | ||
|---|---|---|
| Color | Beige/Black | |
| Wire Gauge | 28AWG Stranded | |
| Jacket Material | PVC - Polyvinyl Chloride | |
| Cable Shielding | 100% Aluminum Mylar Foil Shield | |
| Connectors | ||
| Connector A | DB9 Female | |
| Connector B | DB25 Male | |
| Pin Out | ||
| DB9 Female - DB25 Male | ||
| 1 - 8 | ||
| 2 - 3 | ||
| 3 - 2 | ||
| 4 - 20 | ||
| 5 - 7 | ||
| 6 - 6 | ||
| 7 - 4 | ||
| 8 - 5 | ||
| 9 - 22 | ||
| Shell - Shell | ||
| Environmental | ||
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
| 1ft | 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|---|
| 0.17 lbs | 0.35 lbs | 0.50 lbs | 0.65 lbs | 0.70 lbs | 1.35 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| SR-120-01BK | 1ft / Black | 0.07 lb |
| SR-120-03BK | 3ft / Black | 0.15 lb |
| SR-120-06BK | 6ft / Black | 0.21 lb |
| SR-120-10 | 10ft / Beige | 0.33 lb |
| SR-120-10BK | 10ft / Black | 0.33 lb |
| SR-120-15 | 15ft / Beige | 0.5 lb |
| SR-120-15BK | 15ft / Black | 0.5 lb |
| SR-120-25BK | 25ft / Black | 0.77 lb |
