Description

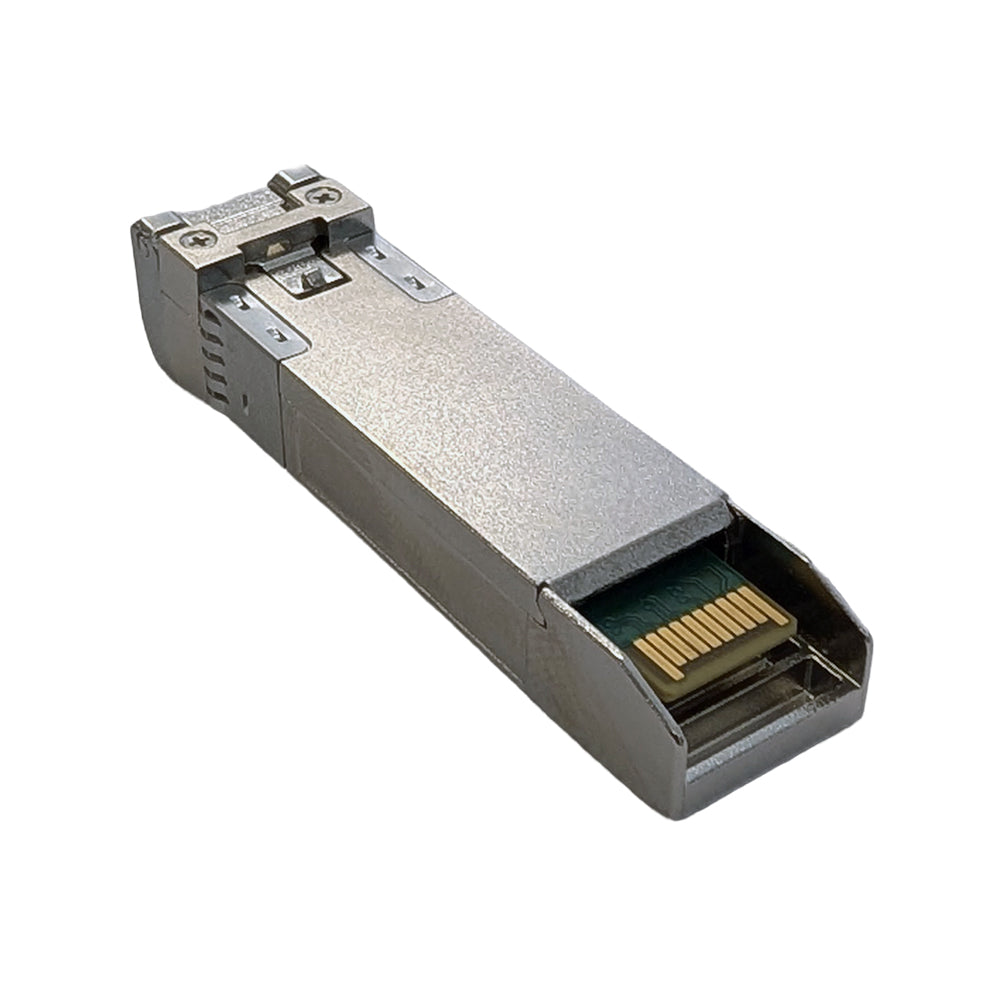

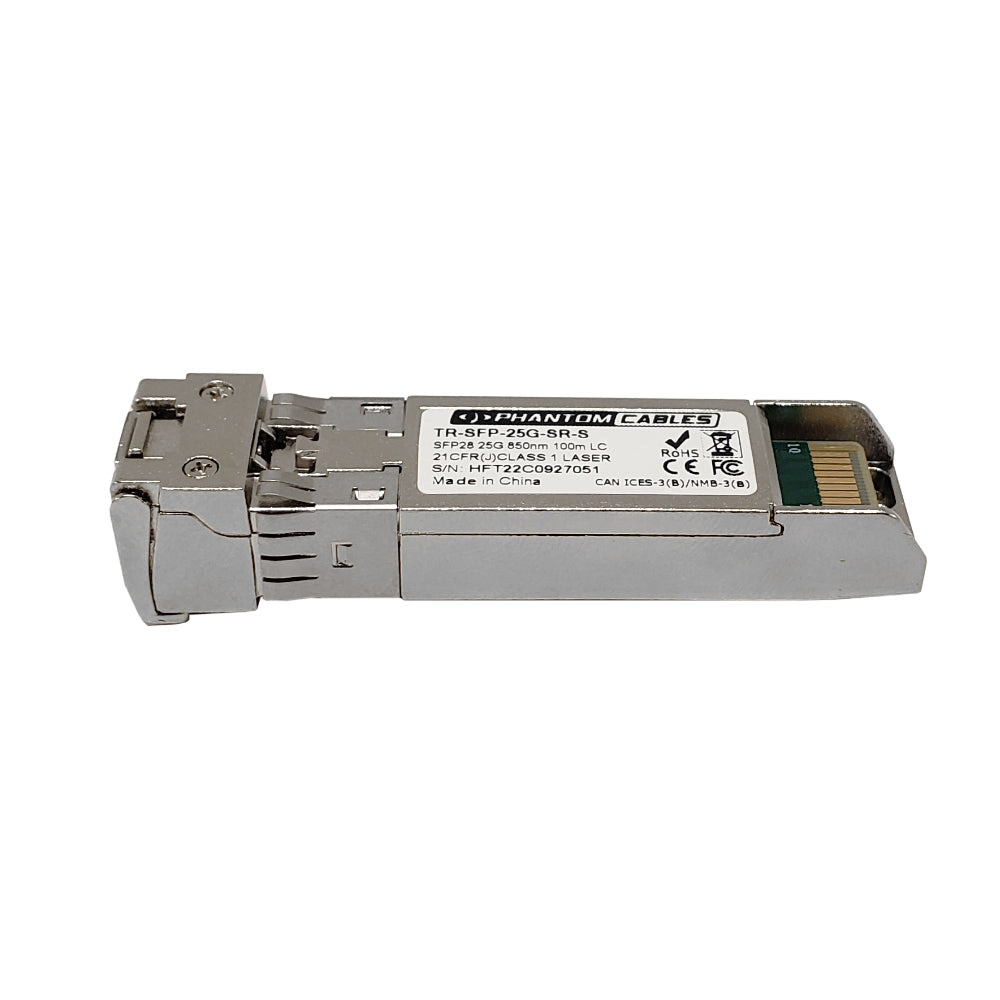

This is an Enhanced Small Form-factor Pluggable (SFP28) transceiver module with maximum data transfer rate of 25 Gbps up to 100m over multimode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 25GBase-LR Multimode Fiber | |
| Data Rate | Up to 25Gbps | |
| Maximum Transmission Distance | 100m (OM3) over MMF |
|
| Wave Length | 850nm | |
| Power Consumption | < 1W | |
| Voltage Supply | 3.3V | |
| TX Output Power | -8.4~+2.4 dBm | |
| RX Sensitivity | -103 dBm | |
| Compliance | SFP28 MSA, IEEE 802.3by 25GBASE-SR and CPRI/eCPRI | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
