Description

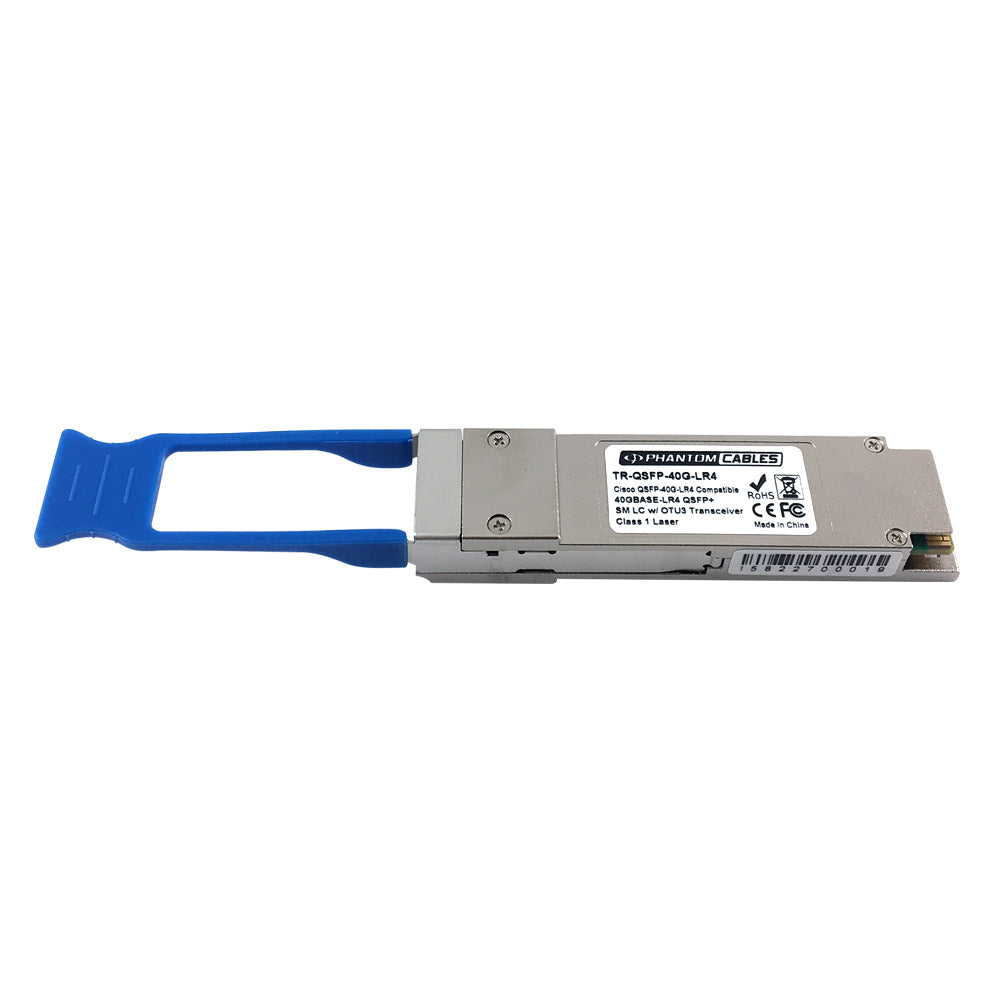

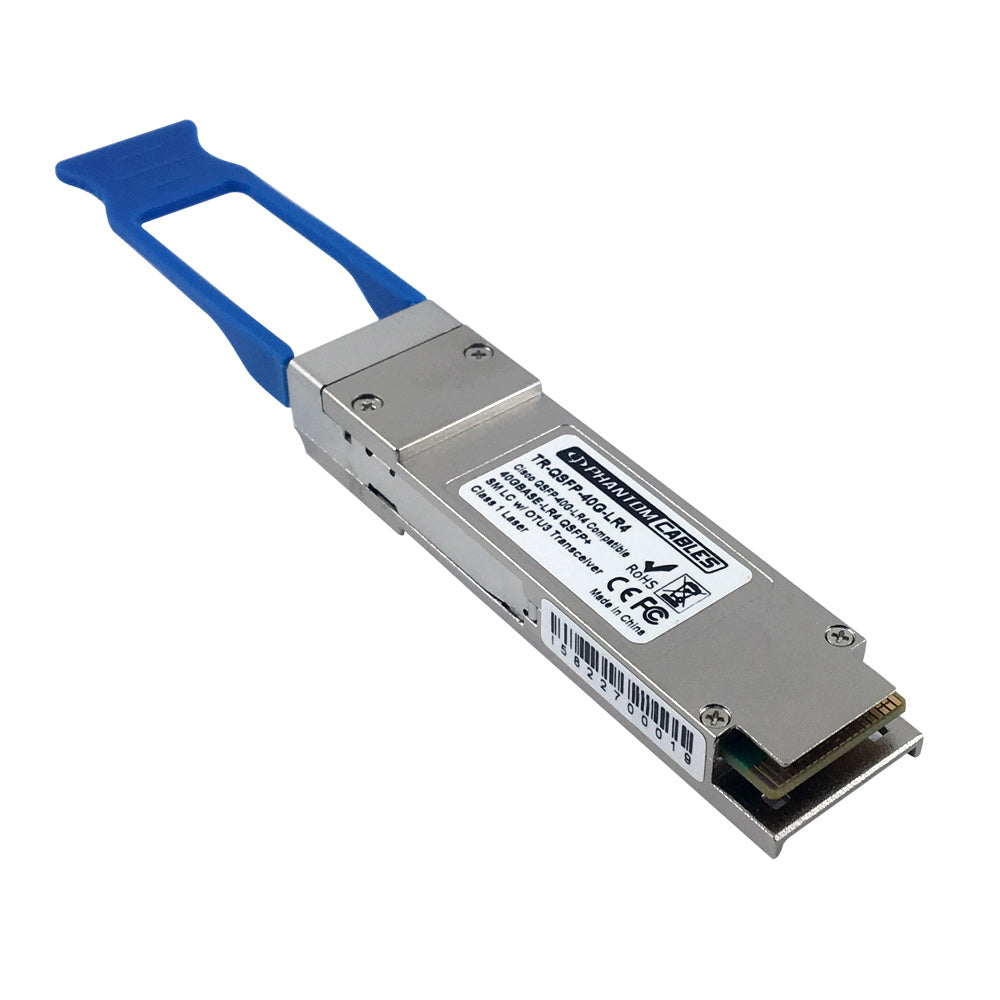

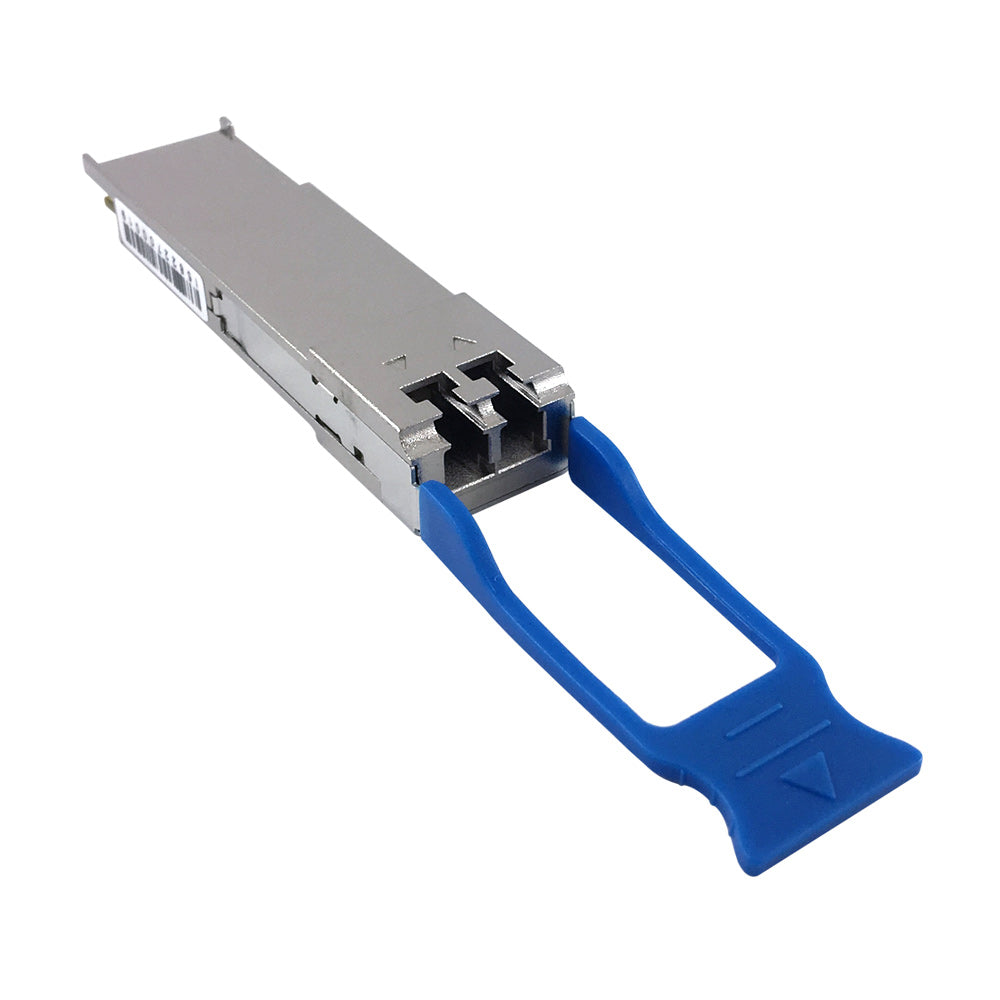

This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 40 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with a QSFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -20°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 40GBase-LR4 Singlemode Fiber | |
| Maximum Transmission Distance |
10km |
|
| Wave Length | 1270/1290/1310/1330nm | |
| DDM Support |
Yes |
|
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Compatibility List
| 2x100GE-FLEX-40 | A900-IMA2F | A9K-MPA-1X40GE | A9K-MPA-2X40GE | C3850-NM-2-40G | C6800-16P10G(-XL) |
| C6800-32P10G(-XL) | C6800-8P10G(-XL) | C6800-SUP6T | C6800-SUP6T-XL | C6824-X-LE-40G | C6840-X-LE-40G |
| C9300-24P | C9300-24T | C9300-24U | C9300-24UX | C9300-48P | C9300-48T |
| C9300-48U | C9300-48UXM | C9400-SUP-1 | C9400-Sup-1XL | C9500-12Q | C9500-24Q |
| C9500-40X | FPR4K-NM-4X40G | FPR9K-NM-4X40G | N2K- 2332TQ | N2K-2348TQ | N2K-2348UPQ |
| N2K-C2348TQ-E | N3K-C3016Q-40GE | N3K-C3064PQ | N3K-C3064PQ-10GE | N3K-C3064PQ-10GX | N3K-C3064TQ-10GT |
| N3K-C3064TQ-32T | N3K-C3132Q-40GE | N3K-C3132Q-40GX | N3K-C3132Q-V | N3K-C3132Q-XL | N3K-C3172TQ-10GT |
| N3K-C3172TQ-32T | N3K-C3232C | N3K-C3264Q | N55-M4Q | N5600-M12Q | N5696-M12Q |
| N56-M24UP2Q | N5K-C55XX | N5K-C56128P | N5K-C5624Q | N5K-C5648Q | N5K-C5672UP |
| N5K-C5672UP-16G | N5K-C5696Q | N6004-96Q | N6004-B-24Q | N6K-C6001-64P | N6K-C6001-64T |
| N6K-C6004-M12Q | N77-F324FQ-25 | N77-M312CQ-26L | N77-M324FQ-25L | N7K-F312FQ-25 | N7K-M206FQ-23L |
| N9K-9736C-EX | N9K-9736C-FX | N9K-C92160YC-X | N9K-C92300YC | N9K-C92304QC | N9K-C9236C |
| N9K-C9272Q | N9K-C93108TC-EX | N9K-C93108TC-FX | N9K-C93120TX | N9K-C93180LC-EX | N9K-C93180YC-EX |
| N9K-C93180YC-FX | N9K-C93240YC-FX2 | N9K-C9332PQ | N9K-C9336C-FX2 | N9K-C9336PQ | N9K-C9348GC-FXP |
| N9K-C9364C | N9K-C9372PX | N9K-C9372PX-E | N9K-C9372TX | N9K-C9372TX-E | N9K-M12PQ |
| N9K-M6PQ | N9K-M6PQ-E | N9K-X9432C-S | N9K-X9432PQ | N9K-X9464PX | N9K-X9464TX |
| N9K-X9464TX2 | N9K-X9536PQ | N9K-X9564PX | N9K-X9564TX | N9K-X9636C-R | N9K-X9636C-RX |
| N9K-X9636PQ | N9K-X97160YC-EX | N9K-X9732C-EX | N9K-X9736C-FX | N9K-X9736PQ | NC55-18H18F |
| NC55-24H12F-SE | NC55-24X100G-SE | NC55-36X100G | NC55-36X100G-A-SE | NC55-36X100G-S | NCS 5011 |
| NCS1002-K9 | NCS-5501 | NCS-5501-SE | NCS-5502 | NCS-5502-SE | NCS-55A1-24H |
| NCS-55A1-36H-S | NCS-F-SCSW | UCSC-MLOM-C40Q-03 | UCSC-PCIE-C40Q-03 | UCS-FI-6332-16UP-U | UCS-FI-6332-U |
| WS-C3560X-24P | WS-C3560X-24T | WS-C3560X-48P | WS-C3560X-48PF | WS-C3560X-48T | WS-C3850-48XS |
| WS-C3850-48XS-E | WS-C3850-48XS-F-E | WS-C3850-48XS-F-S | WS-C3850-48XS-S | WS-X45-SUP9-E | |
| Avaya | Force10 | D-Link | EMC2 | F5 Networks | |
| Fortinet | Hirschmann | Linksys | Moxa |
MRV |
|
| Netgear |
Nokia Siemens Networks |
Palo Alto Network |
Qlogic |
RAD |
Ruijie Networks |
| Supermicro | Synology |
Telco Systems |
TP-Link |
Trendnet |
WatchGuard |
| ZTE |
Product Weights
| SKU | Weight | |
| TR-QSFP-40G-LR4 | 0.08 lb |
