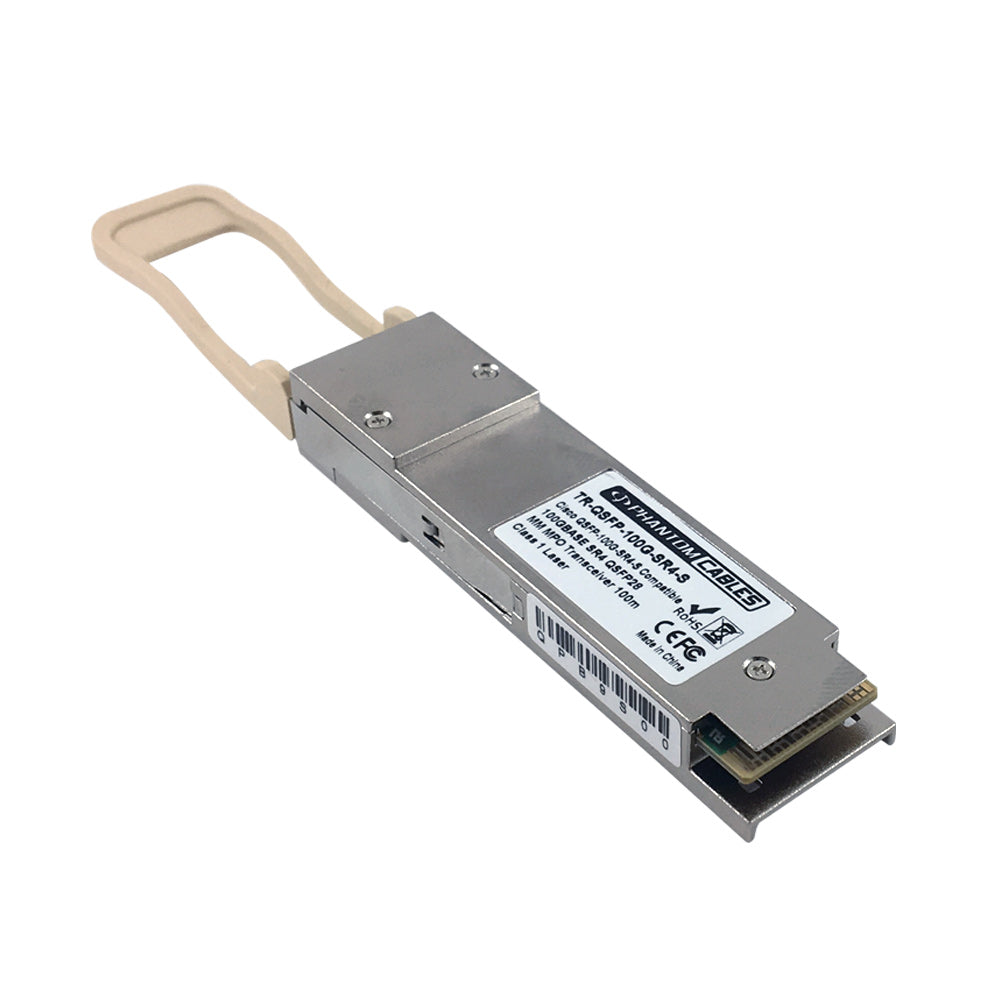

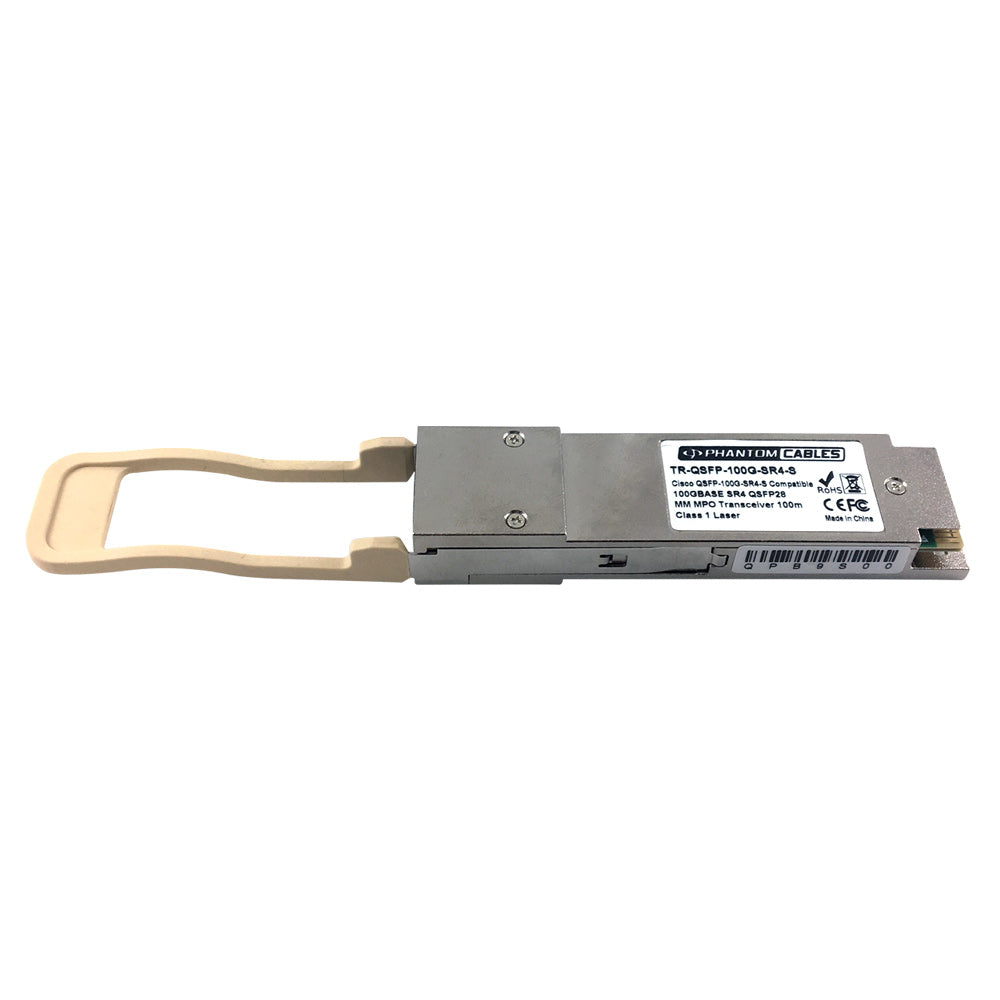

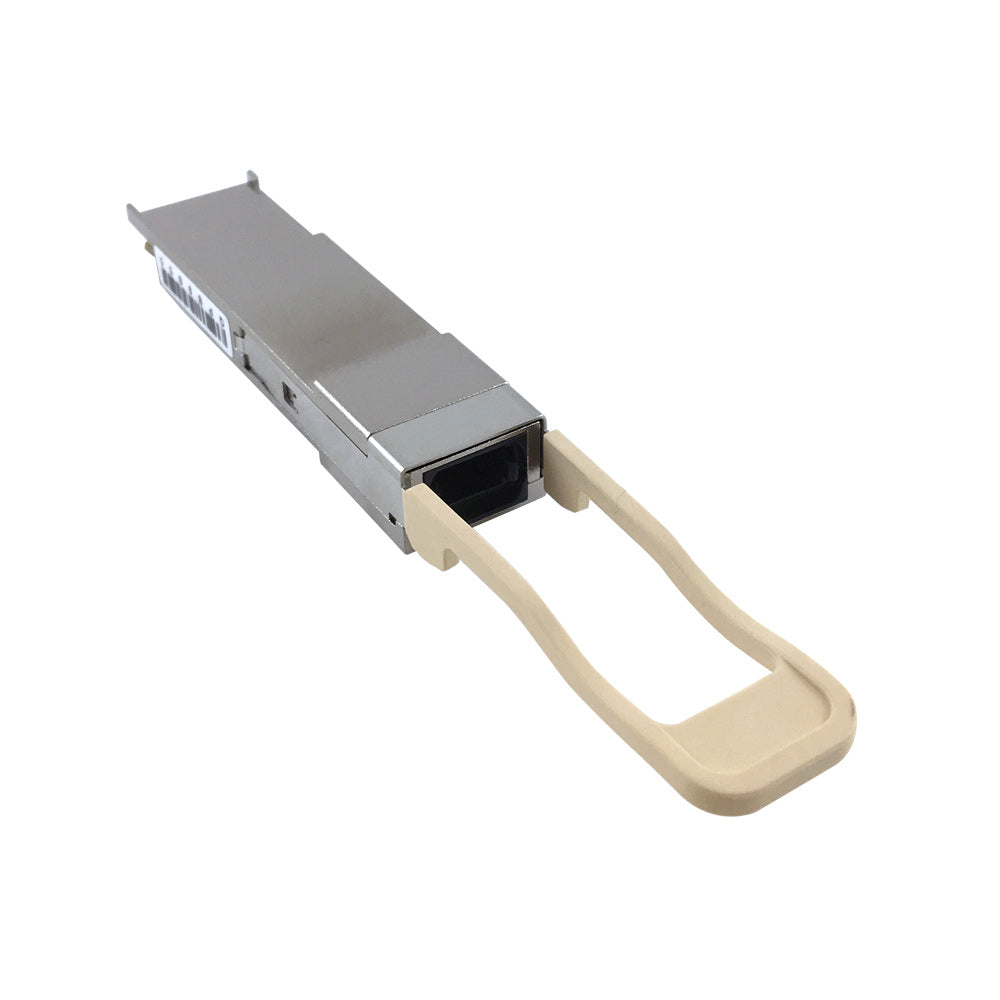

This is a Quad Small Form-factor Pluggable (QSFP28) transceiver module with maximum data transfer rate of 100Gbps up to 100m over multimode fiber cable. It is used in compatible network devices with a QSFP28 slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | MPO/MTP | |
| Performance | ||
| Media Supported | 100GBase-SR4 Multimode Fiber | |
| Maximum Transmission Distance | 100m with 50/125µm OM3 MMF | |
| Wave Length | 850nm | |
| DDM Support |
Yes |
|
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Compatibility List
| A99-12X100GE | A99-12X100GE-CM | FPR-DNM-2X100G | N3K-C31108PC-V | N3K-C31108TC-V | N3K-C3232C |
| N3K-C36180YC-R | N77-M312CQ-26L | N9K-C92160YC-X | N9K-C92300YC | N9K-C92304QC | N9K-C9236C |
| N9K-C93108TC-EX | N9K-C93108TC-FX | N9K-C93180LC-EX | N9K-C93180YC-EX | N9K-C93180YC-FX | N9K-C93240YC-FX2 |
| N9K-C9336C-FX2 | N9K-C9348GC-FXP | N9K-C9364C | N9K-X9432C-S | N9K-X9636C-R | N9K-X9636C-RX |
| N9K-X97160YC-EX | N9K-X9732C-EX | N9K-X9732C-FX | N9K-X9736C-EX | N9K-X9736C-FX | NC55-18H18F |
| NC55-24H12F-SE | NC55-24X100G-SE | NC55-36X100G | NC55-36X100G-A-SE | NC55-36X100G-S | NC6-20X100GE-L-C |
| NC6-20X100GE-M-C | NCS 5001 | NCS 5002 | NCS 5011 | NCS1002-K9 | NCS2K-400G-XP |
| NCS-5501 | NCS-5501-SE | NCS-5502 | NCS-5502-SE | NCS-55A1-24H | NCS-55A1-36H-S |
| Avaya | Force10 | D-Link | EMC2 | F5 Networks | |
| Fortinet | Hirschmann | Linksys | Moxa |
MRV | |
| Netgear |
Nokia Siemens Networks |
Palo Alto Network |
Qlogic |
RAD |
Ruijie Networks |
| Supermicro |
Synology |
Telco Systems |
TP-Link |
Trendnet |
WatchGuard |
| ZTE |
Product Weights
| SKU | Weight | |
| TR-QSFP-100G-SR4-S | 0.08 lb |
