Overview

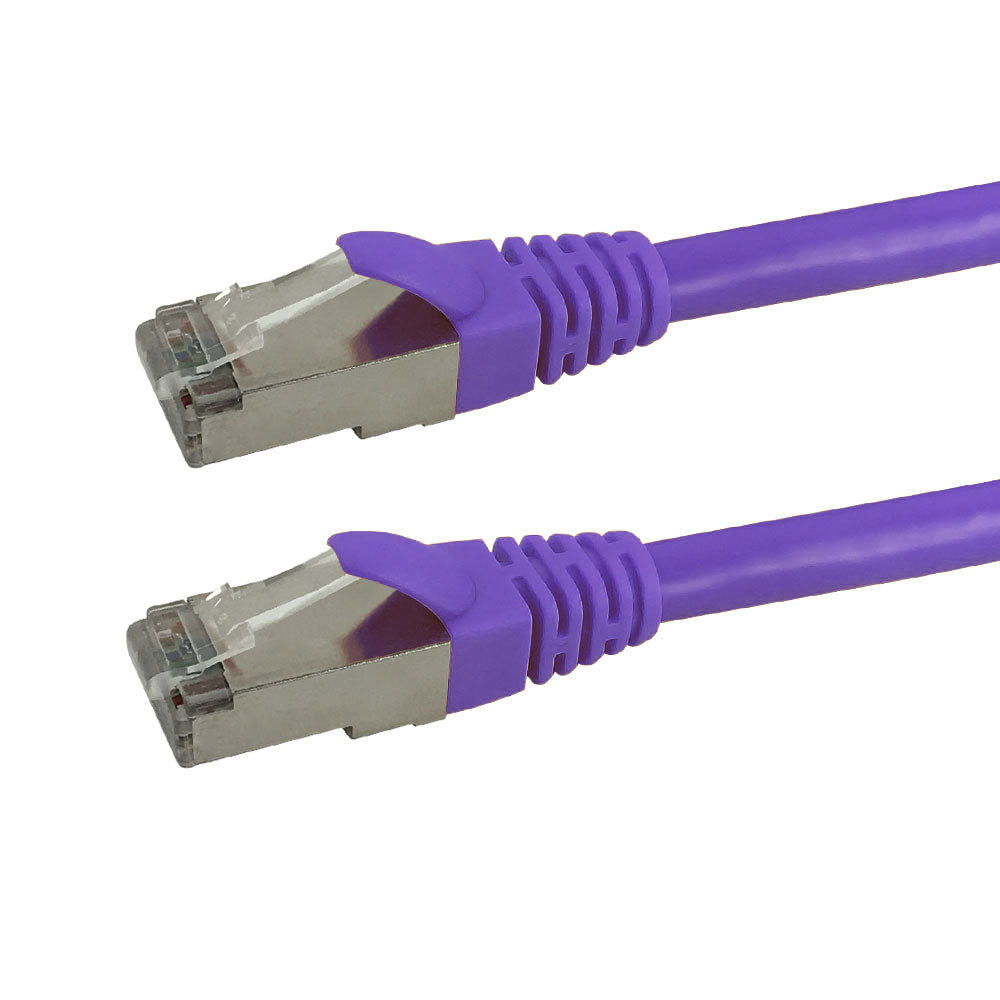

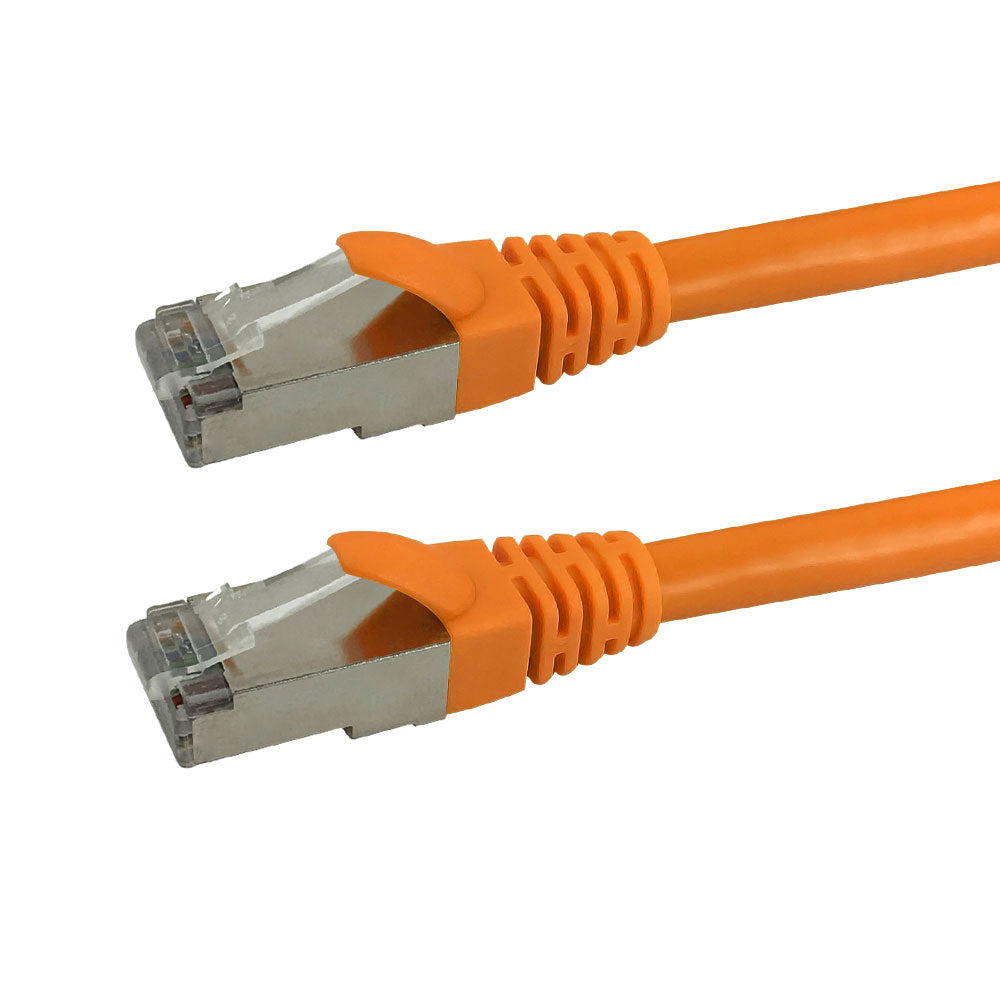

This Cat6 shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). These cables are Fluke® Cat6 patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Double Shielded100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT6 patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6mm |
| Wire Gauge | 26AWG Stranded |
| Shielding | F/FTP (Foil Shield on Individual Pairs plus Overall Foil Shield) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Molding | Assembled Tab Style Strain Relief |
| Temperature Rating | 75°C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Shielded Long Body Male |
| Connector B | RJ45 Shielded Long Body Male |
| Performance | |
| Fluke® CAT6 Patch Cable Test | Yes, with Test Report |
| Approvals | |
| c(UL)us | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
