1000ft CAT6 550Mhz Solid F/UTP 23AWG CMP Plenum Bulk Cable

CAT Bulk CableSKU: BK-C6E602-BK

Color: Black
Price:
Sale price$410.92 USD
Stock:
In stock

Description

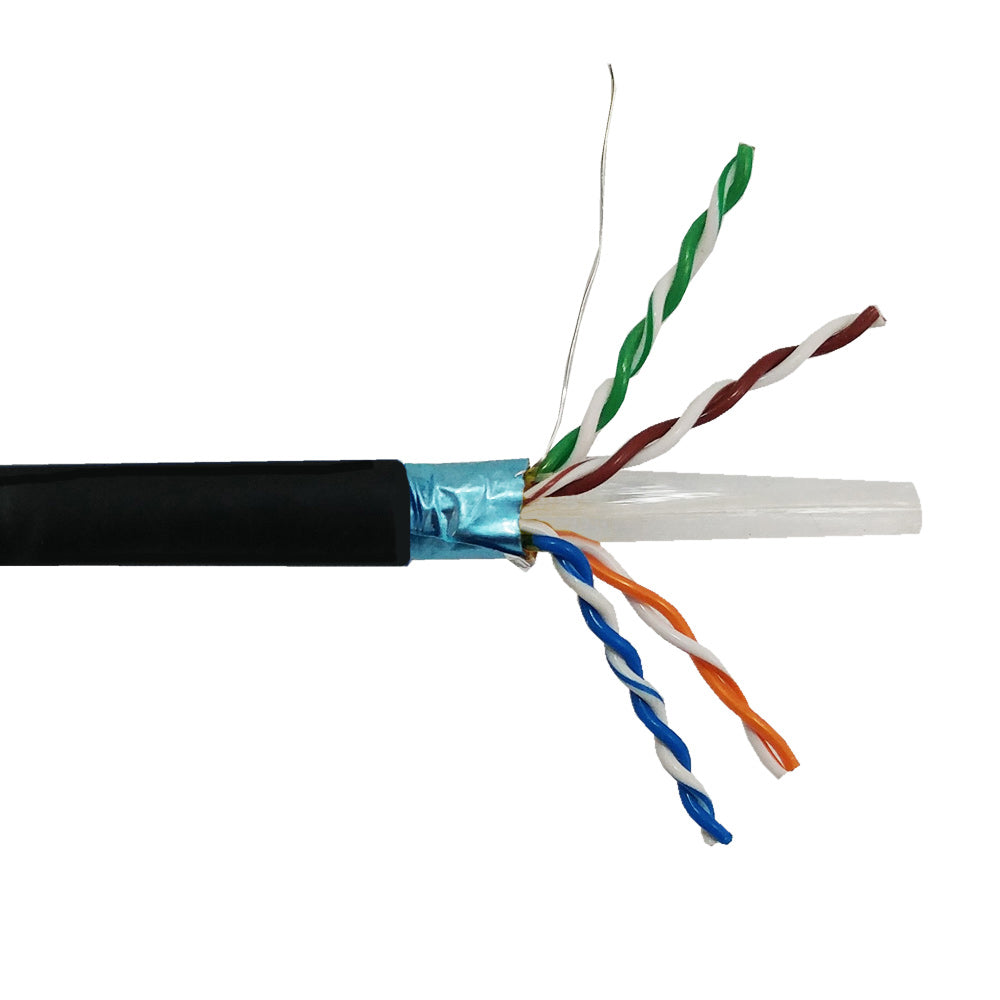

This bulk plenum rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used in a plenum environment as premise wiring and terminated from a patch panel to a Cat6 jack.

Physical Characteristics
Cable Length 1000 foot [305m]
Cable Diameter 7.45 mm
Number of Pairs 4 Pairs
Wire Gauge 23AWG Solid
Insulation Outer Diameter: 0.0414" (1.05 +/- 0.5mm)

PET (20/0.25mm)
Conductor Material 100% Bare Copper
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMP/FT6[Plenum Rated]
Jacket Nominal Thickness 0.0197" (0.50mm)
Jacket Outer Diameter 0.268" +/- 0.012 (6.8 +/- 0.3mm)
Cable Shielding 100% Aluminum Foil Shield
Temperature Rating 75 deg C
Voltage 30V
Capacitance 5.6nF/100m .Nom
Characteristic Impedance 1-100MHz,100¬Ī15%
101-250MHz,100¬Ī22%
251-500MHz,100¬Ī25%
Velocity of Propogation ‚Č•65%
DCR Conductor 9.38 Ohms/100m.Nom
D-C Resistance Unbalance: ‚ȶ5%
Performance
Fluke CAT6 Permalink Pass
Approvals
c(UL) Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 51 lbs [23.1 kg]
