Cable Gland M40x1.5 Thread - Cable OD 22~32mm - IP68

Cable GlandsSKU: CG-M40-L

Color: Black
Price:
Sale price$6.78 USD
Stock:
In stock

Description

This cable gland has a metric thread pattern of M40xP1.5 and accommodates a cable size of 22 to 32mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black / White
Material Nylon 66
Thread M40xP1.5
Mounting Hole 40.0 ~ 40.4 mm[1.57 ~ 1.59 inches]
Cable Range 22 ~ 32 mm [0.87 ~ 1.26 inches]

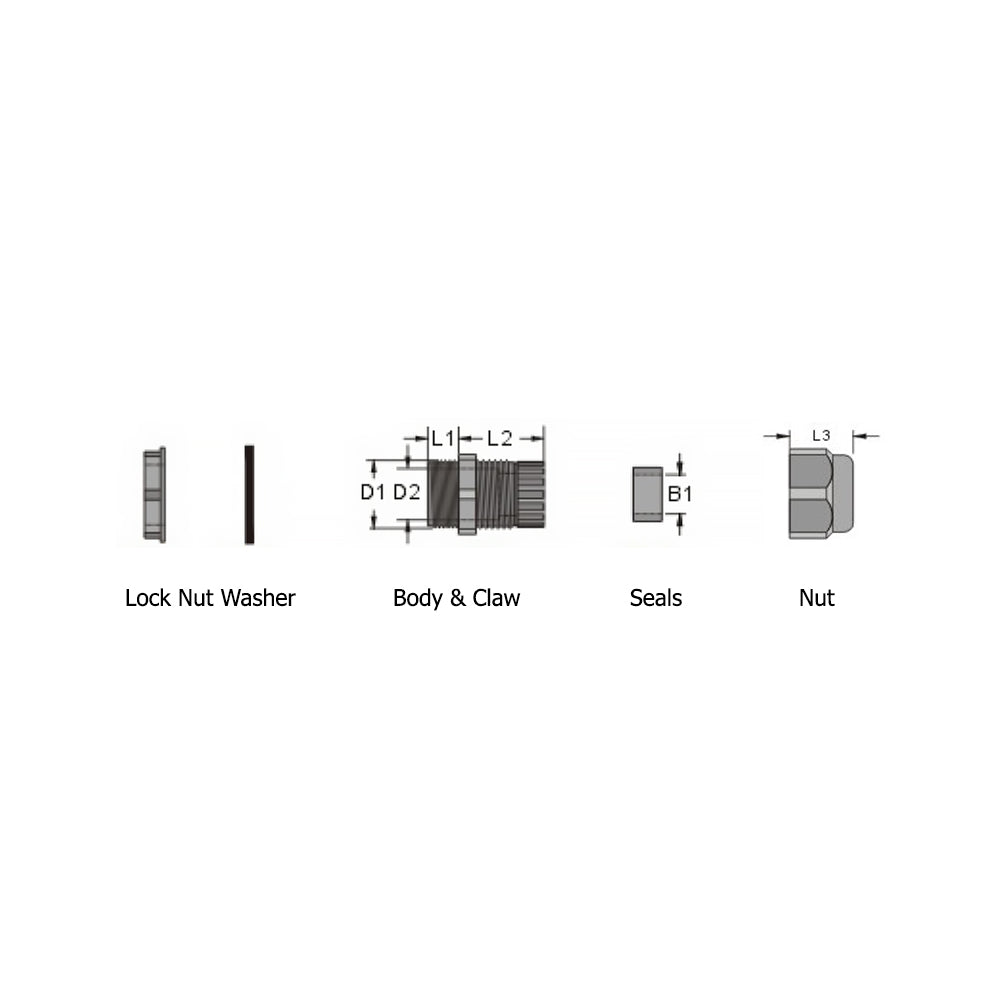

Dimensions (mm)

D1 D2 B1 L1 L2 L3
40.0mm 33.7mm 33.0mm 18.4mm 41.7mm 31.3mm
1.57in 1.33in 1.30in 0.72in 1.64in 1.23in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
SKU Options Weight
CG-M40-L Black 0.2 lb
CG-M40WH-L White 0.2 lb
